DSBOARD-AGXMAX Overview and Connector Definitions

WHAT YOU WILL LEARN?

1- The basic perspective over DSBOARD-AGXMAX

2- The definitions of buttons

3- The definitions of each connector

ENVIRONMENT

Hardware: DSBOARD-AGXMAX



Forecr’s DSBOARD-AGXMAX is industrial carrier board based on Nvidia Jetson AGX Orin processor modules for edge analytics. It is compatible with multi stream deep learning applications.

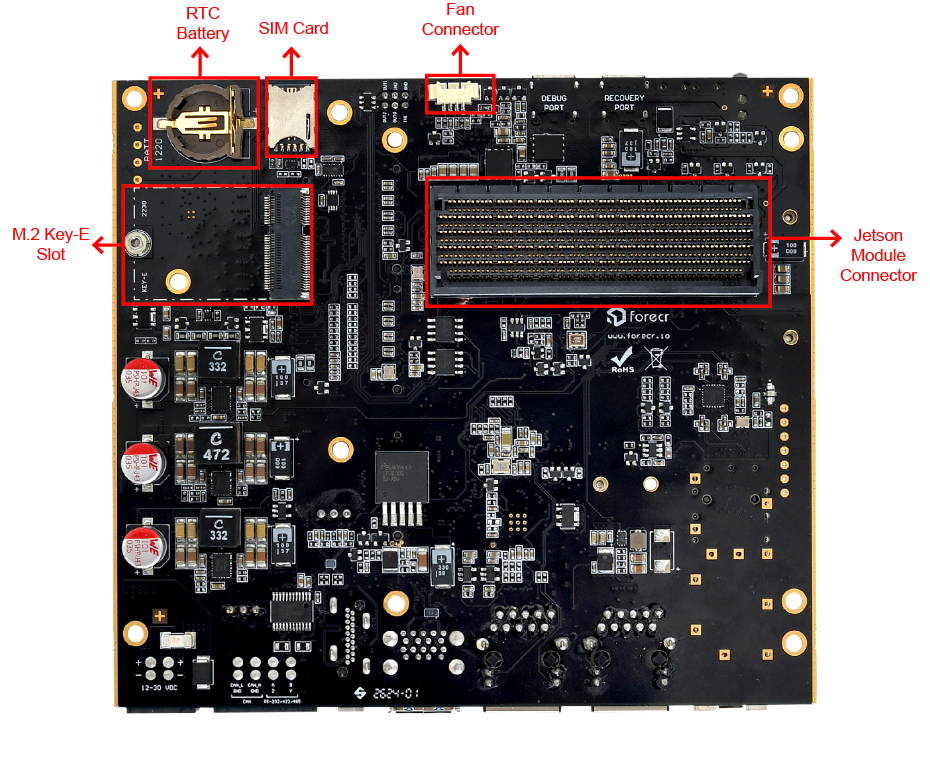

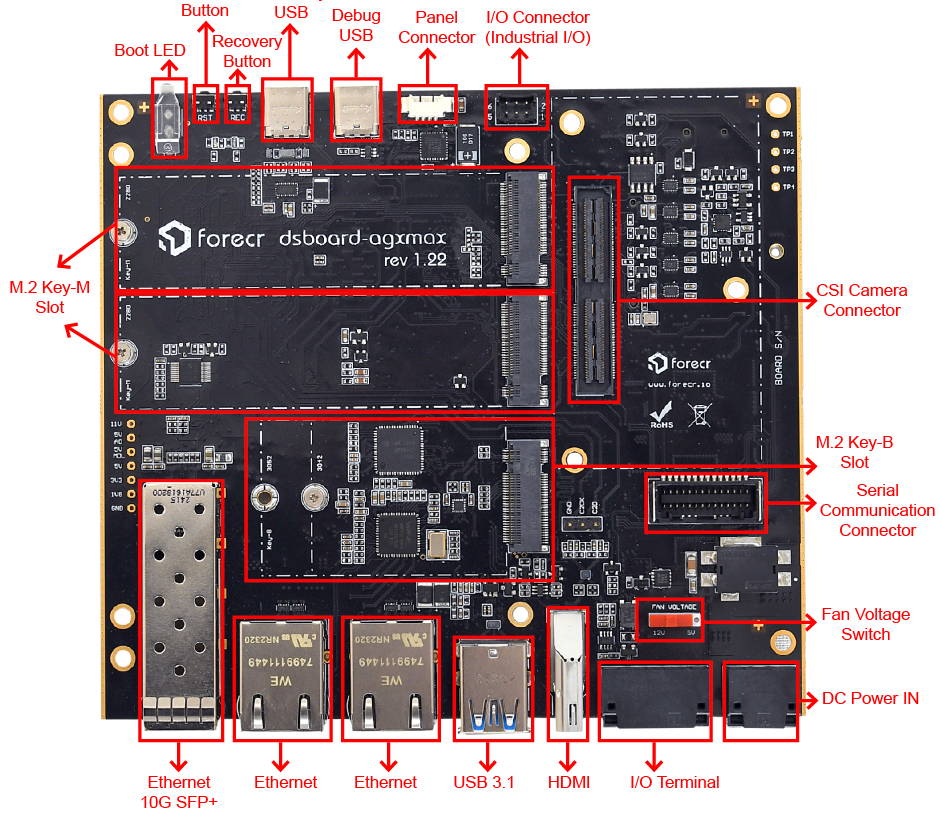

The Basic Perspective over DSBOARD-AGXMAX

TECHNICAL SPECIFICATIONS

NVIDIA Jetson AGX Orin SoM option

1x HDMI 2.0 (max resolution 3840x2160)

2x Gigabit Ethernet

1x 10G (SFP+Based)

2x USB 3.1 Type-A

1x CAN Bus

1x RS232/422/485 (software configurable)

2x USB-C (Debug and Recovery)

2x Digital Input,

3x Digital Output

Fan Connector

RTC Battery Connector

Serial Communication Connector(1x I2C, 2x UART, 1x I2S, 2x SPI, 1x CAN Bus)

2x M.2 Type-M Key (2x 2280)

On-board WiFi Chip

1x M.2 Key-B Slot for LTE/5G Connectivity by extension sockets

1x Camera Connector (6 CSI camera support)

Ambient Conditions: -25°C … +85°C

12-32 VDC Input

OS: Ubuntu Linux 20.04

Dimensions: 140 mm x 125 mm

The Definitions of Buttons

DSBOARD-AGXMAX Recovery Pushbutton

The DSBOARD-AGXMAX implements a recovery pushbutton. Recovery button should be pressed with reset button at the same time. After released reset button, recovery button should be pressed a little bit more (min. 250 ms). It is located on the front side of the board.


DSBOARD-AGXMAX Reset Pushbutton

The DSBOARD-AGXMAX implements a reset button. It is recommended to use needle-like material. It is located on the front side of the board.

The Definition of Each Connector

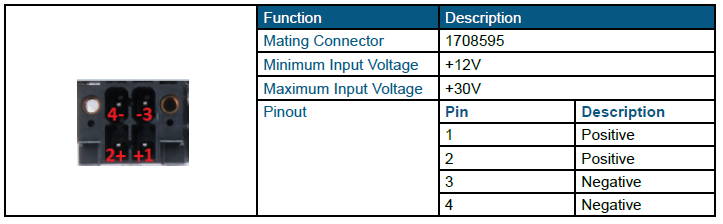

DSBOARD-AGXMAX Power Connector

The DSBOARD-AGXMAX implements 4-Pin Power Terminal Connector that accepts +12V to +30V DC power. The mating connector is "1708595". The first and the second pins are positive, third and fourth pins are negative. The power connector is located on the rear side of the board.


DSBOARD-AGXMAX M.2 Key-M Connectors

The DSBOARD-AGXMAX implements 2 M.2 M-Key Connectors (2x 2280) for suitable modules.


DSBOARD-AGXMAX M.2 Key-B Connector

The DSBOARD-AGXMAX implements a M.2 B-Key Connector for suitable modules. This connector is located on the bottom side of the board.


DSBOARD-AGXMAX SD Card Connector

The DSBOARD-AGXMAX implements a micro SD Card connector and nano SIM card connector together. It is located on the front side of the board.

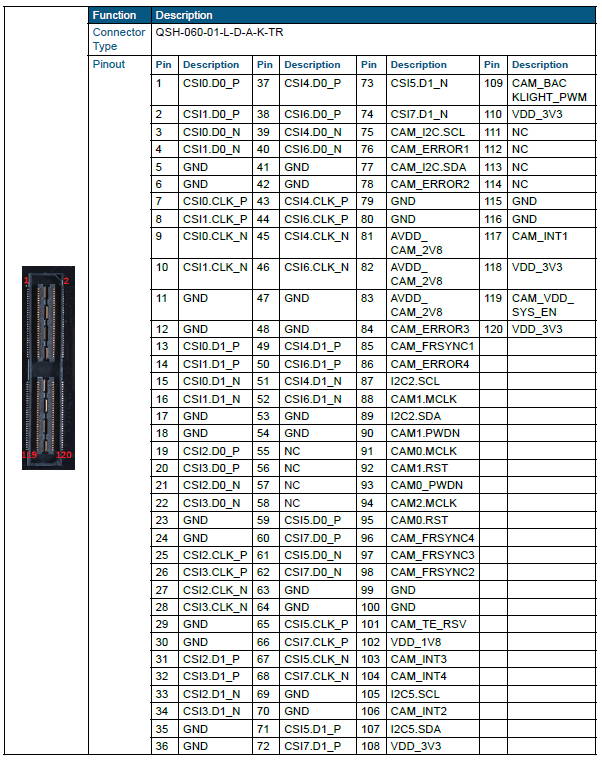

DSBOARD-AGXMAX Camera Connector

The DSBOARD-AGXMAX implements 16-lane CSI camera connector for camera adapter boards. The connector model is "QSH-060-01-L-D-A-K-TR". It is located on the bottom side of the board.

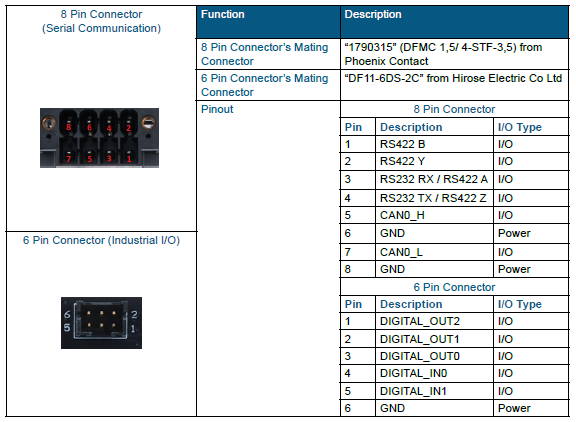

DSBOARD-AGXMAX I/O Terminal Connectors

The DSBOARD-AGXMAX implements 8 pins GPIO Expansion connector (which has RS232-RS422-RS485 & CANBus pins) and another 6 pin GPIO Expansion connector (which has 3 digital output pins, 2 digital input pins).

The 8 pin connector's mating connector is "1790315" (DFMC 1,5/ 4-STF-3,5) produced by Phoenix Contact.

The 6 pin connector's mating connector is "DF11-6DS-2DSA(05)" produced by Hirose Electric Co Ltd.


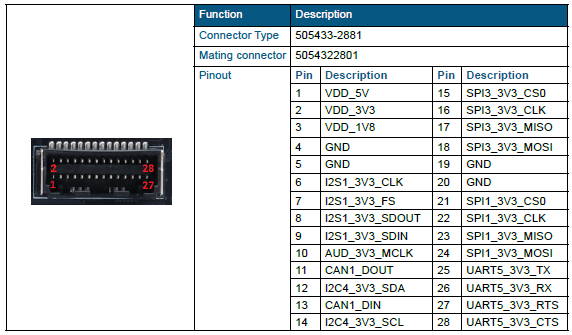

DSBOARD-AGXMAX Serial Communication Connector

The DSBOARD-AGXMAX implements 16 pins Serial Communication connector which has 1x I2C, 2x UART, 1x I2S, 2x SPI, 1x CAN Bus standard pins. The connector type is "DF50-30DP-1V(51)" . The mating connector is "DF50S-30DS-1C". The small arrow represent the first pin and the opposite of this pin is second pin. It is located on the top side of the board.

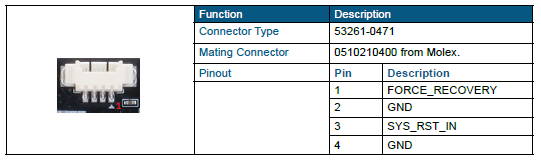

DSBOARD-AGXMAX Panel Connector

The recovery & reset button's signals located at the panel connector. The connector type is "53261-0471". The mating connector is "0510210400" produced by Molex.


DSBOARD-AGXMAX RTC Battery Connector

The DSBOARD-AGXMAX implements a RTC battery holder. The connector is suitable for CR1220 batteries. The connector is located on top side of the board.


DSBOARD-AGXMAX HDMI Connector

The NVIDIA® Jetson Orin modules will output video via the DSBOARD-AGXMAX vertical HDMI connector that is HDMI 2.0 capable. It is located on the rear side of the board.


DSBOARD-AGXMAX USB 3.1 Type-A Connector

The DSBOARD-AGXMAX incorporates 2 USB 3.1 Type-A connectors with a 1.5A current limit per connector. The USB connector is located on the rear side of the board.


DSBOARD-AGXMAX On-board WiFi Chip

The DSBOARD-AGXMAX implements an onboard WiFi chip from u-blox (LILY-W131) and a WiFi antenna connector from Molex (0734120110). The antenna connector is located on the top side of the board.


DSBOARD-AGXMAX 10G Ethernet Slot

The DSBOARD-AGXMAX implements a Multi-Gigabit Ethernet slot for 10Gb SFP+ supported transceivers. This connector is located on the rear side of the board.


DSBOARD-AGXMAX 10/100/1000 Ethernet Connectors

The DSBOARD-AGXMAX implements 2 port RJ-45 Ethernet connector for internet communication. The Ethernet connector is located on the rear side of the board.

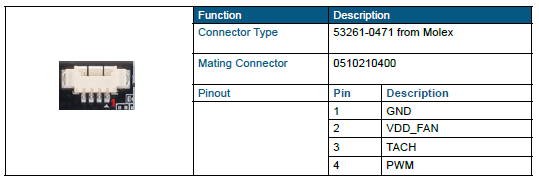

DSBOARD-AGXMAX Fan Connector

The DSBOARD-AGXMAX implements a fan connector as "53261-0471" from Molex. The mating connector is "0510210400". It is located on the bottom side of the board.


DSBOARD-AGXMAX Recovery Mode USB Type-C Connector

The DSBOARD-AGXMAX implements a USB Type-C connector to allow to install or upgrade the operating system. It is located on the front side of the board.


DSBOARD-AGXMAX Debug Mode Type-C USB Connector

The DSBOARD-AGXMAX implements a Type-C USB connector to access the module by using serial connection. It is located on the bottom side of the board.
