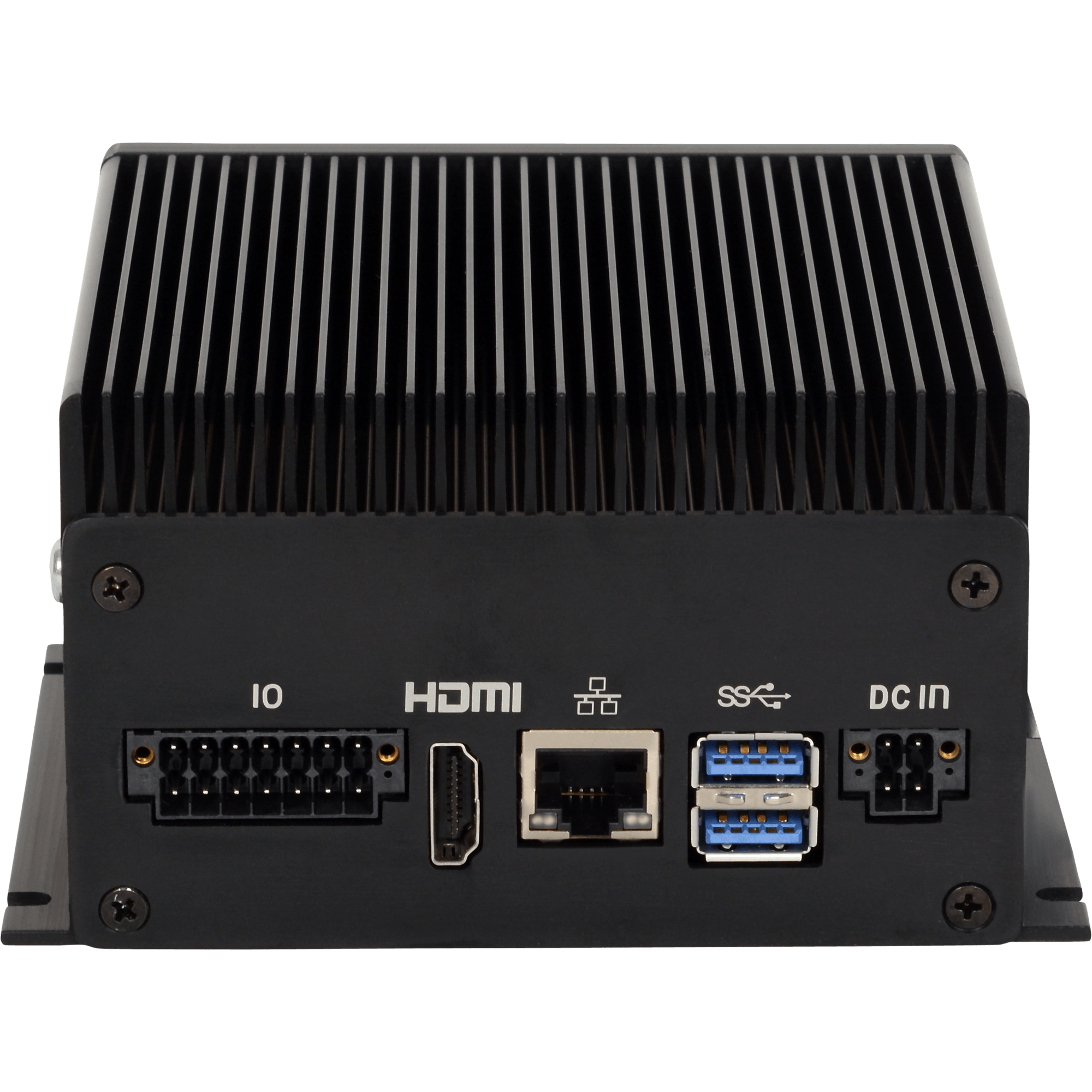

DSBOX-NX2 Edge AI Box PC with NVIDIA Jetson Nano
Deploy AI Applications at the Edge with Jetson Nano

DEPLOY AI AT THE EDGE

DSBOX-N2 can encode up to four and decode up to eight video streams in 1080p at 30 FPS with its ARM® based NVIDIA® Jetson™ Nano™ processor. Jetson™ Nano™ processor delivers 472 GFLOPs AI performance with its 128 NVIDIA® CUDA® Cores and Quad-core ARM® Cortex®-A57 MPCore ARM CPU.


With the help of NVIDIA®’s DeepStream SDK, maximum performance is achieved for simultaneous video processing applications. Performance values for NVIDIA® pre-trained algorithms are 11 FPS for Resnet-34 based people detection, 14 FPS for RESNET-18 based people detection, 19 FPS for RESNET-18 based vehicle detection and 101 FPS for RESNET-18 based face detection algorithms using  GPU and NVIDIA® TensorRT optimizations. Benchmark details can be found at NVIDIA®’s DeepStream SDK website.


DSBOX-N2 is your cost-effective edge AI deployment platform for up to eight simultaneous video streams using deep learning algorithms.

BUILT TO BE INTEGRABLE

Forecr DSBOX-N2 allows connection to a various network, production lines, and industrial systems together with its wide range of connectivity options. Since DSBOX-N2 has guaranteed high-speed interfaces like Gigabit Ethernet and USB 3.1, it also enables you to connect sensors, servo motor controllers and PLC systems. It allows you to send commands to LEDs, actuators, and cobots after you process videos, signals, and sensor information with DL algorithms. For the detection/recognition process or algorithm findings based on direct signal passing, isolated I/Os are available.


As an industrial automation-oriented product, DSBOX-N2 meets the needs for getting integrated into an automation system. Other than generic interfaces, RS232/RS422/RS485 based connections are applicable with a multi-protocol serial port. Additionally, you can change the protocol easily by software by using internal GPIO configuration commands.

Built to be integrated into Industrial Automation Systems
Compact Form Factor and DIN RAIL Compatibility

MULTI-FUNCTIONAL & COMPACT FORM

DSBOX-N2 offers a rich user experience with its mechanical design and its ideal size, durability along delicacy. It maintains coolness under long CPU and GPU utilization. Also, it is perfect for industrial environments; DSBOX-N2 operates in the range of -25⁰C to +65⁰C.


DSBOX-N2 provides various mechanical mounting options. Use it on your table while you are developing your next AI project, hang it on the wall with the mounting holes on the flanges or attach it to a standard DIN RAIL with the adapter provided together with the product.


With its unique mechanical design, thermal performance is assured. Even in the long operation hours with the maximum GPU and CPU usage, internal CPU temperature does not surpass 70⁰C. At no time, DSBOX-N2 drops its performance and reaches thermal throttling points.

ENGINEERED TO ROBUSTNESS

When you think about all the specifications of high-speed interfaces in an industrial box PC, DSBOX-N2 is ideally suited for this description. Each part of the hardware design is well thought to bring maximum throughput to the users. For 3G/4G/5G applications; it has M.2 Key-B with USB 3.1, for broadband and network connections; it has Gigabit Ethernet and for high-resolution cameras and generic USB device connections; it has 2x USB 3.1.


Each DSBOX Box PC is tested for its high-speed interfaces and performance to provides the best product possible. Proven with our M.2 Key-M SSD tests, you can use M.2 NVMe SSDs on market connected via PCIe x4. USB 3.1 tests show 4.5 GB/sec under full utilization of the slots where the theoretical limit is 5 GB/sec.


Lastly, the utilization tests of Gigabit Ethernet demonstrates over 900MBits/sec compared to the 1 Gbps theoretical limit of this interface.

Engineered to Robustness with Industrial Level Quality
Low Power Consumption with ARM64 Based Jetson Nano Processor

LOW POWER CONSUMPTION

DSBOX-N2 has a wide range of voltage input. Working for weeks without any problems, users can connect any power supply between the 9-28 VDC range. Because of its stable power design, it can perform well under long hours of maximum CPU and GPU loads without any interruption.


In every part of the creation process, from board stackup to design of the circuit and the component selection, as a company, we carefully select the best materials possible. 10 years of experience we have on hardware design and carrier boards based on NVIDIA® Jetson™  modules helped us to accomplish this performance.


Along with the power circuit reliability, another crucial point in industrial systems is power connection reliability. Thanks to our screw-locked industrial-grade power connectors, interruptions caused by connection issues have never been experienced in our production history.

Technical Specifications

CPUQuad-core ARM® Cortex®-A57 processor
GPU

NVIDIA Maxwell™ GPU with 128

NVIDIA CUDA® Cores

Memory4 GB 64-bit LPDDR4
Graphics Interfaces1xHDMI 2.0(max resolution 3840x2160)
Interfaces

1x Gigabit Ethernet

2x USB 3.1 Type-A

1x RS232/422/485 (software configurable)

2 Digital Inputs / 3 Digital Outputs

Wireless CommunicationWiFi/Bluetooth/LTE/5G Connectivity by extension sockets
Power Supply9-28 VDC
Internal Extension Sockets

1x M.2 Type-E Key

1x M.2 Type-B Key

Internal Mass Storage16 GB eMMC 5.1 Flash, 1x M.2 SSD Slot, 1x MicroSD, 1x M.2 Key
Ambient Conditions-25°C … +65°C
Form Factor / Dimensions110 mm x 130 mm x 60 mm
Operating SystemsUbuntu Linux 18.04
