Supercomputer Level AI Performance with NVIDIA Jetson AGX Xavier Module

UNMATCHED PERFORMANCE

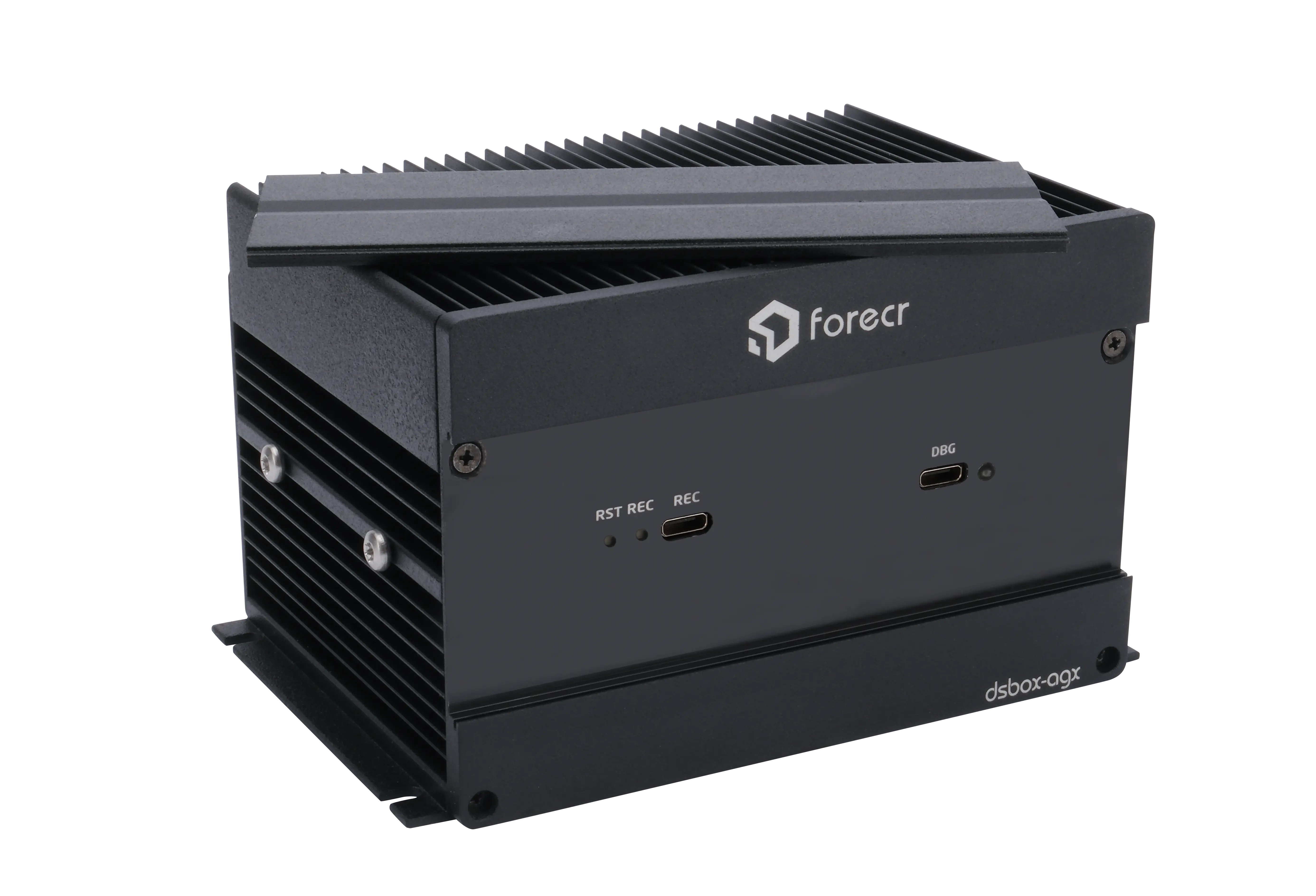

The DSBOX-AGX industrial box PC, is a powerful and reliable solution for industrial applications. With its NVIDIA AGX Orin™ SoM, it delivers exceptional 275 TOPS performance and can handle up to 6 simultaneous 4K video streams or 36 simultaneous 1080p video streams, make it reliable and ideal for edge computing.


The DSBOX-AGX supports two different NVIDIA Jetson AGX Orin™ modules: the 32GB version and the 64GB version. Both modules offer exceptional performance and storage capacity. It features an octa-core Arm® Cortex®-A78 CPU, a 384-core NVIDIA Volta GPU, and two NVIDIA Deep Learning Accelerator (NVDLA) engines, providing exceptional performance and efficiency. It can decode video streams from cameras, sensors, and other equipment, providing real-time monitoring and analysis of industrial processes. Whether you choose the NVIDIA Jetson AGX Orin™ 32GB or the 64GB version, you can be confident that the DSBOX-AGX industrial box PC will provide exceptional performance and reliability.


ADVANCED FUNCTIONALITY

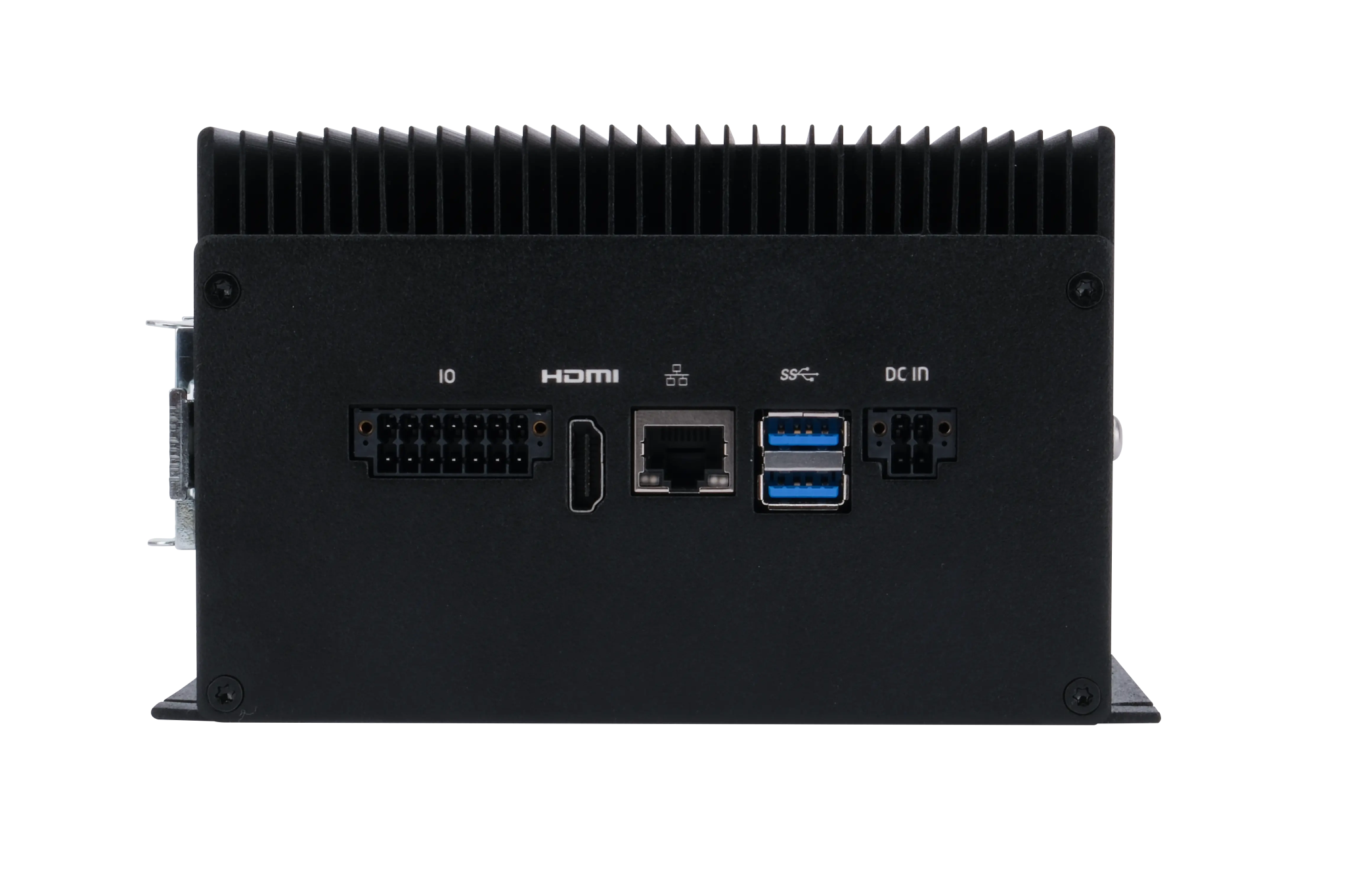

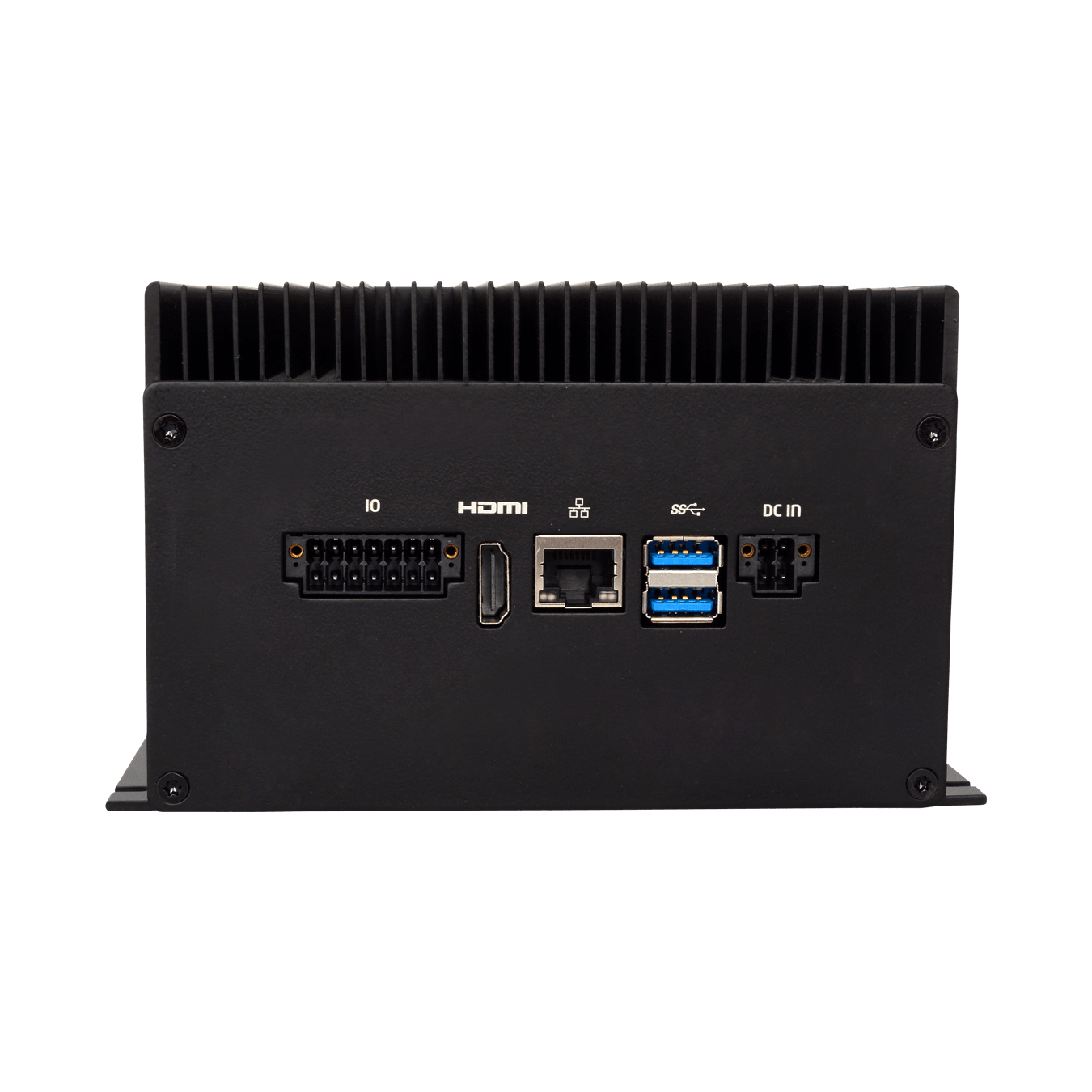

The DSBOX-AGX industrial box PC offers unparalleled connectivity and functionality for a variety of industrial uses. With its Gigabit Ethernet, USB 3.2, HDMI, CAN, Serial Ports, and Digital I/Os, it is the ideal solution for any industrial application. The Gigabit Ethernet port provides high-speed network connectivity, while the USB 3.2 ports provide fast data transfer rates. The HDMI port enables high-quality video output, and the CAN and Serial Ports provide additional connectivity options for a variety of industrial uses. The Digital I/Os allow for the control and monitoring of industrial processes, ensuring that the DSBOX-AGX can handle a wide range of industrial applications.


In addition to its standard connectivity options, the DSBOX-AGX also features extension sockets that provide additional connectivity options for specialized industrial applications. These extension sockets include a Mini-PCIe socket and a M.2 socket, which can be used to add Wi-Fi, Bluetooth, and other wireless connectivity options.


Designed to be compliant with MIL-STD Military Standards
Rich Connection Interfaces (8xUART, 5x Gigabit Ethernet, 2x CAN)

ROBUST AND COMPACT DESIGN

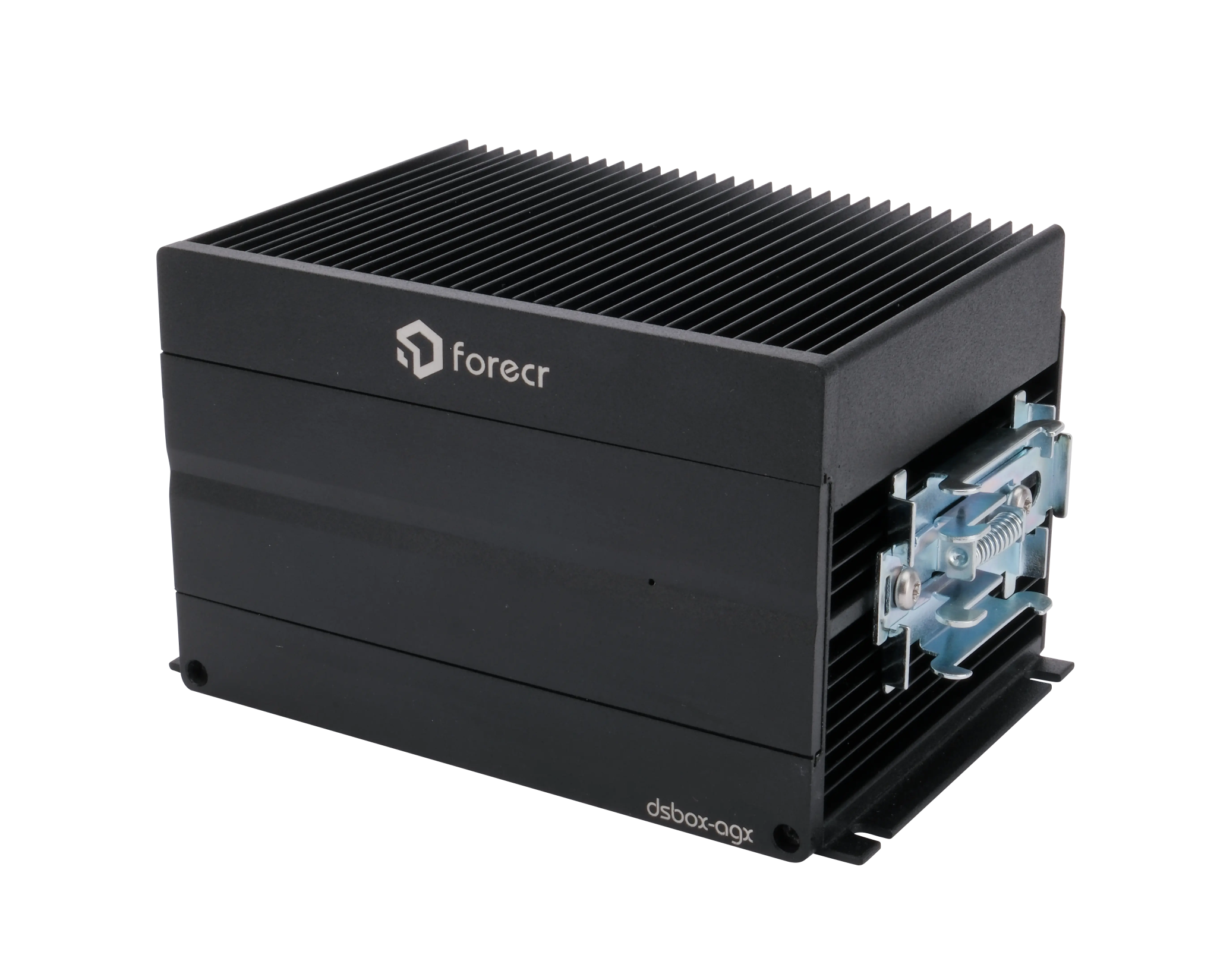

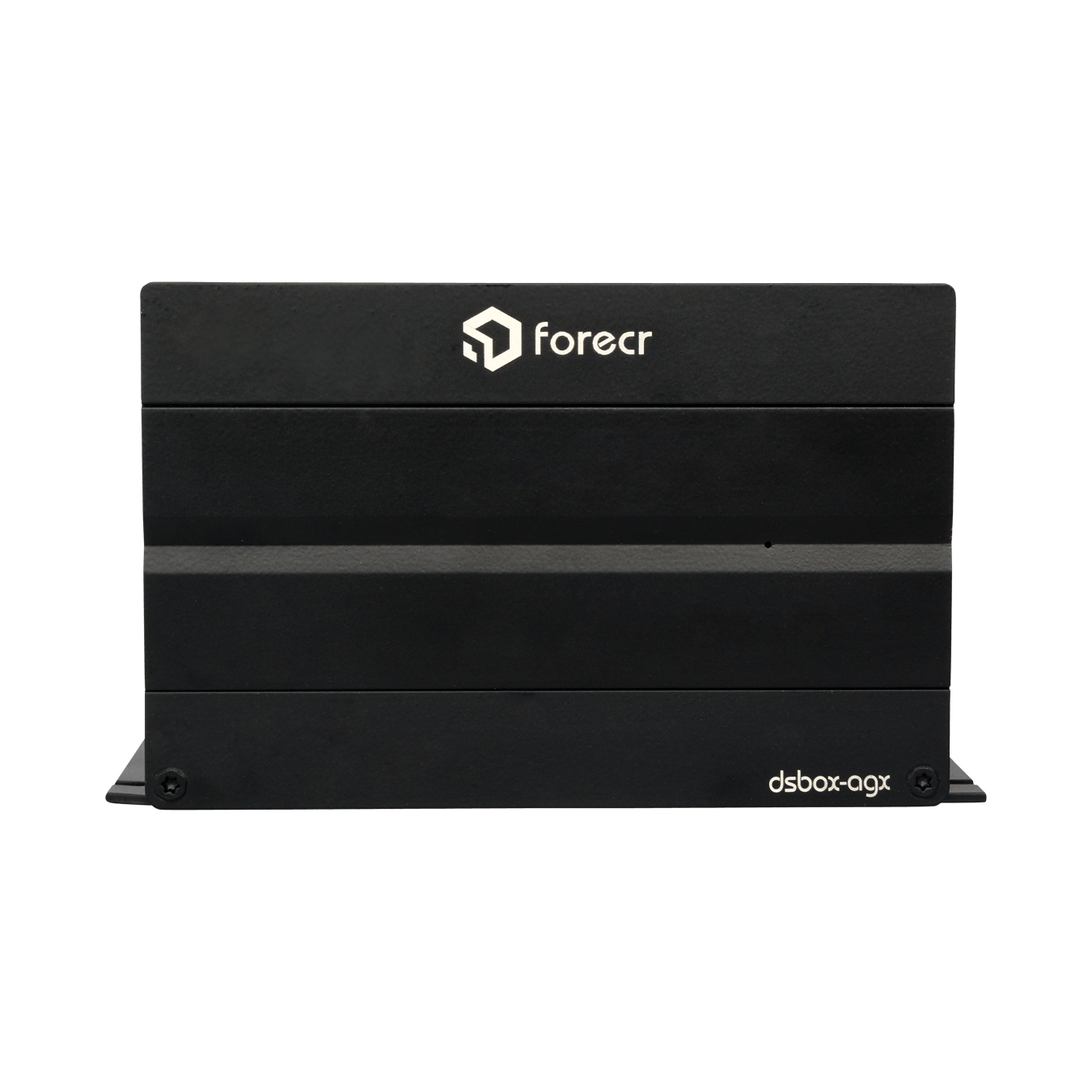

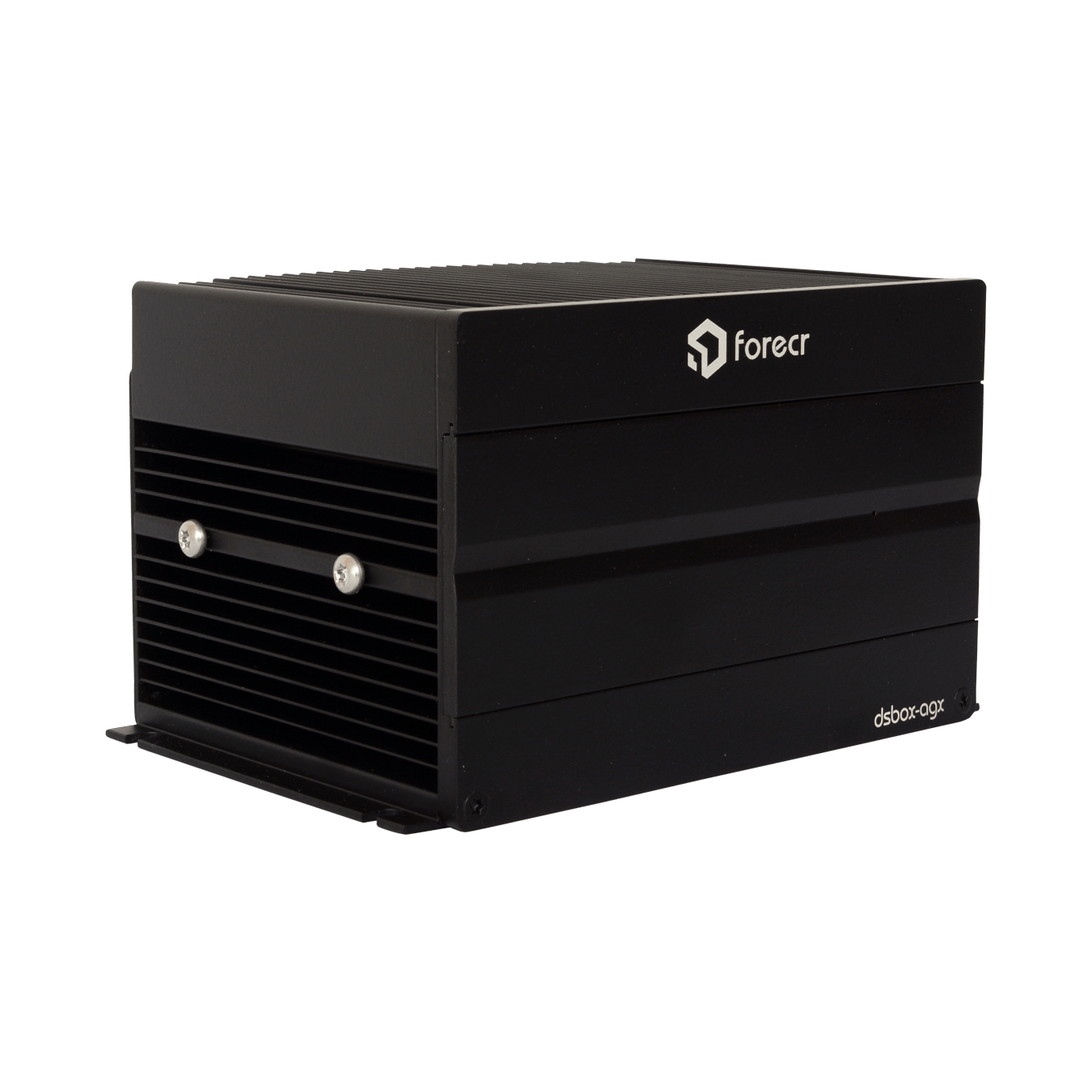

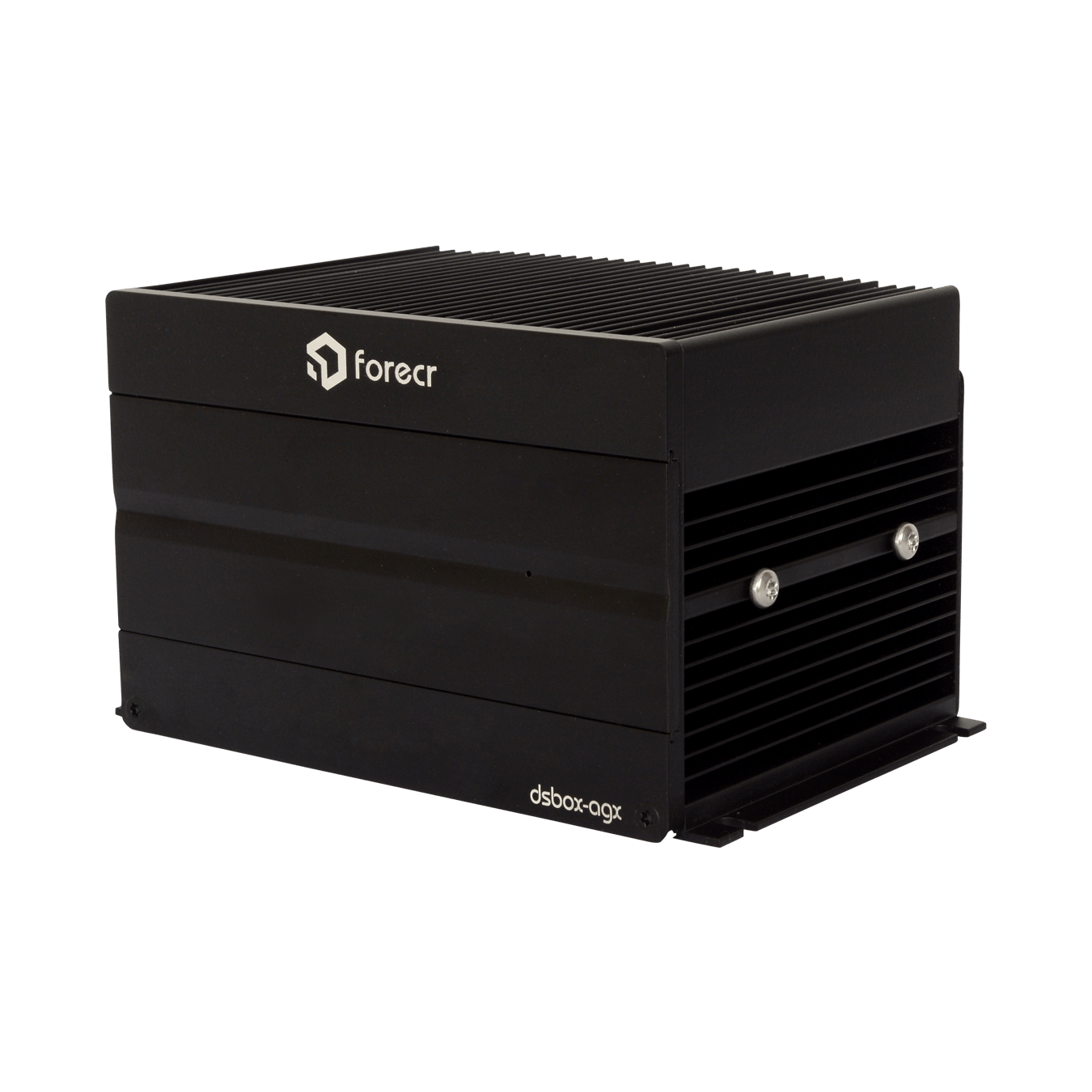

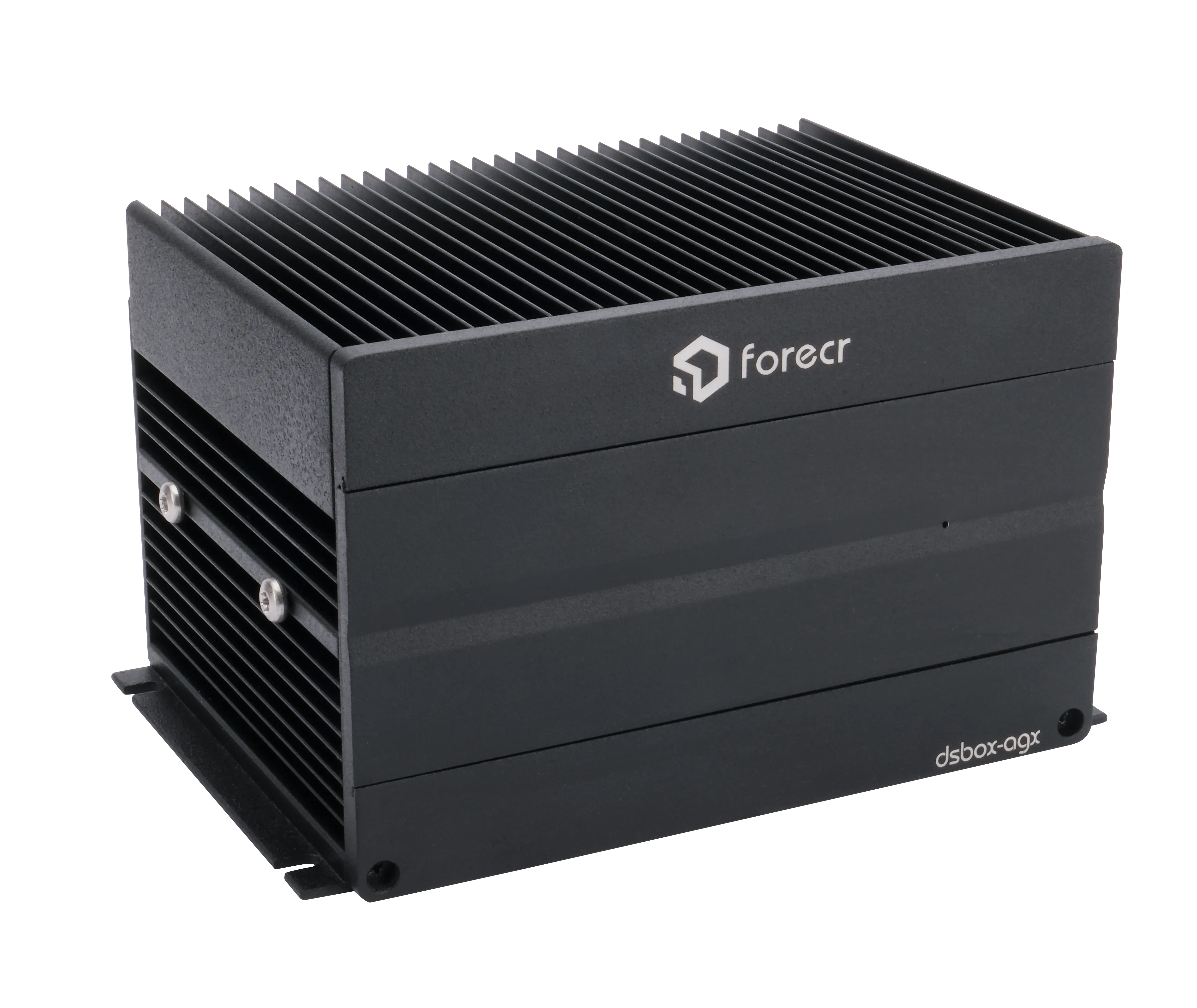

DSBOX-AGX industrial box PC is a compact and robust solution with its rugged design and fanless construction, it can withstand harsh environments and demanding workloads. Plus, its powerful performance and reliable operation ensure that you get the results you need for your industrial applications.


DSBOX-AGX industrial box PC is designed to operate in a wide range of ambient conditions, with a temperature range of -25°C to +85°C. This makes it suitable for use in harsh industrial environments that require reliable performance in extreme temperatures. In addition to its rugged design and reliable performance, the DSBOX-AGX also features a compact form factor, with dimensions of 160 mm x 110 mm x 65 mm. This compact size makes it easy to integrate into existing industrial systems. The DSBOX-AGX also features a fanless construction, which further enhances its reliability and durability in industrial environments. The absence of a fan ensures that the DSBOX-AGX can operate quietly and reliably, without the risk of fan failure.


BOOST YOUR INDUSTRY

The DSBOX-AGX industrial box PC is the perfect solution to boost your industrial applications. With its NVIDIA AGX Orin SoM, this box PC is designed to operate with a power supply of 12-32 VDC. DSBOX-AGX is a reliable and versatile industrial box PC that is designed to operate with a wide range of power supplies. Its low-power design, combined with over voltage protection, ensures that it can operate reliably and efficiently in a variety of industrial applications.


Its powerful CPU and GPU, combined with its advanced AI inference capabilities, ensure that it can provide reliable and efficient performance in even the most demanding industrial environments. The advanced graphics processing capabilities also make it ideal for applications that require high-quality video output, such as surveillance systems.


Maximum Speed on High Speed Interfaces (Gigabit Ethernet, USB 3.2, PCIE SSD))

Technical Specifications

Supported Modules

NVIDIA Jetson AGX Orin 32GB

NVIDIA Jetson AGX Orin 64GB

Memory

32 GB 256-bit LPDDR5x

64 GB 256-bit LPDDR5x

Graphics Interfaces1x HDMI 2.0 (max resolution 3840x2160)

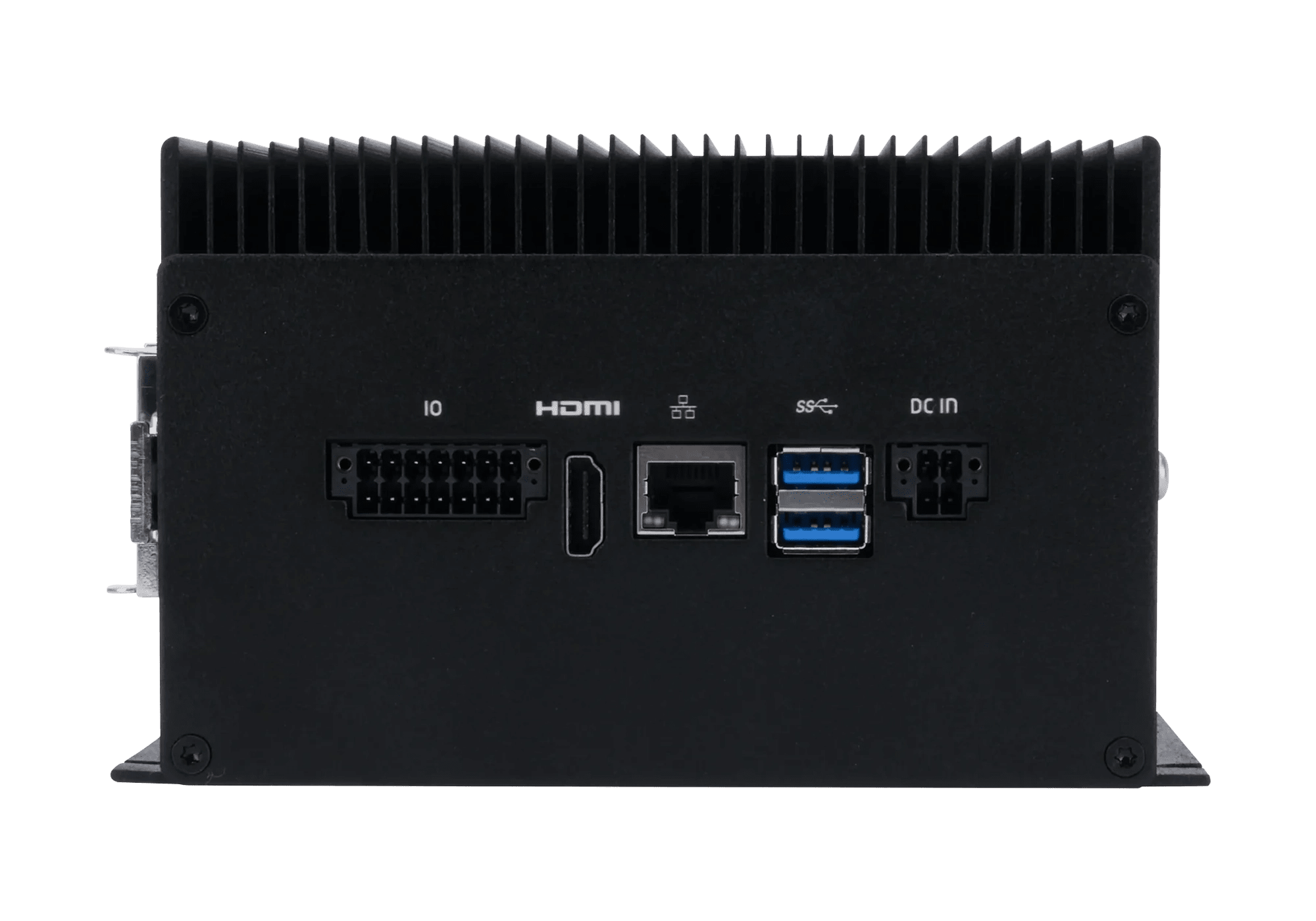

Interfaces

1x Gigabit Ethernet

2x USB 3.1 Type-A

1x CAN Bus

1x RS232/422/485 (software configurable)

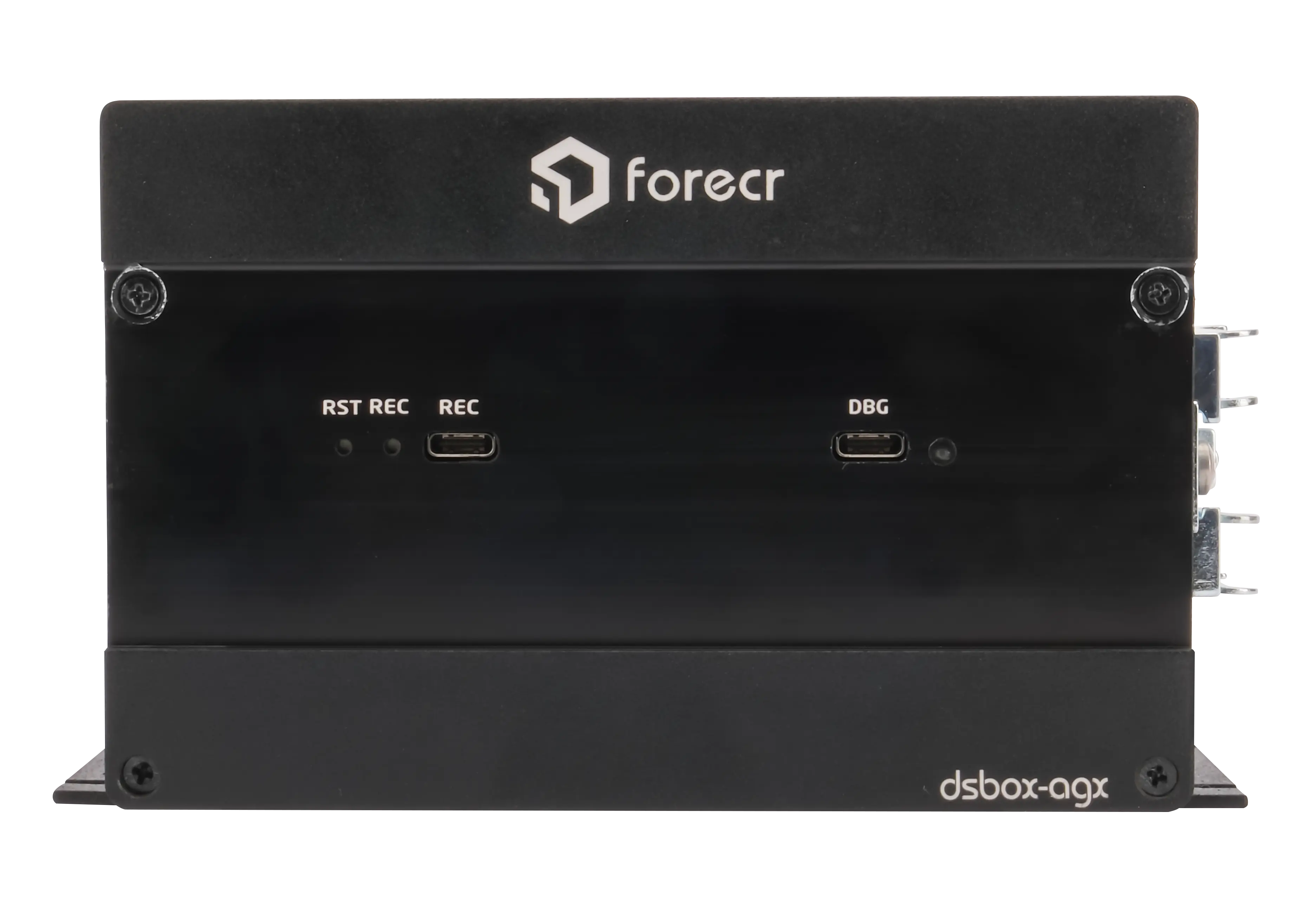

2x USB-C (Debug/Recovery)

2x Digital Input, 3x Digital Output

Wireless CommunicationWiFi/LTE/5G Connectivity by extension sockets
Power Supply12-32 VDC
Extension Sockets

1x M.2 Key-B, 1x SIM, 1x MicroSD

Mass Storage

64 GB eMMC 5.1 Flash

1x M.2 Key-M SSD Slot

Ambient Conditions-25°C … +85°C
Form Factor / Dimensions160 mm x 110 mm x 65 mm, 1340 gr
Operating SystemsUbuntu Linux 20.04
JetPack SupportJetPack 5.x (5.0.2 / 5.1)
