AI Supercomputer at the Edge on Military Applications

MISSION SUPERCOMPUTER AT EDGE

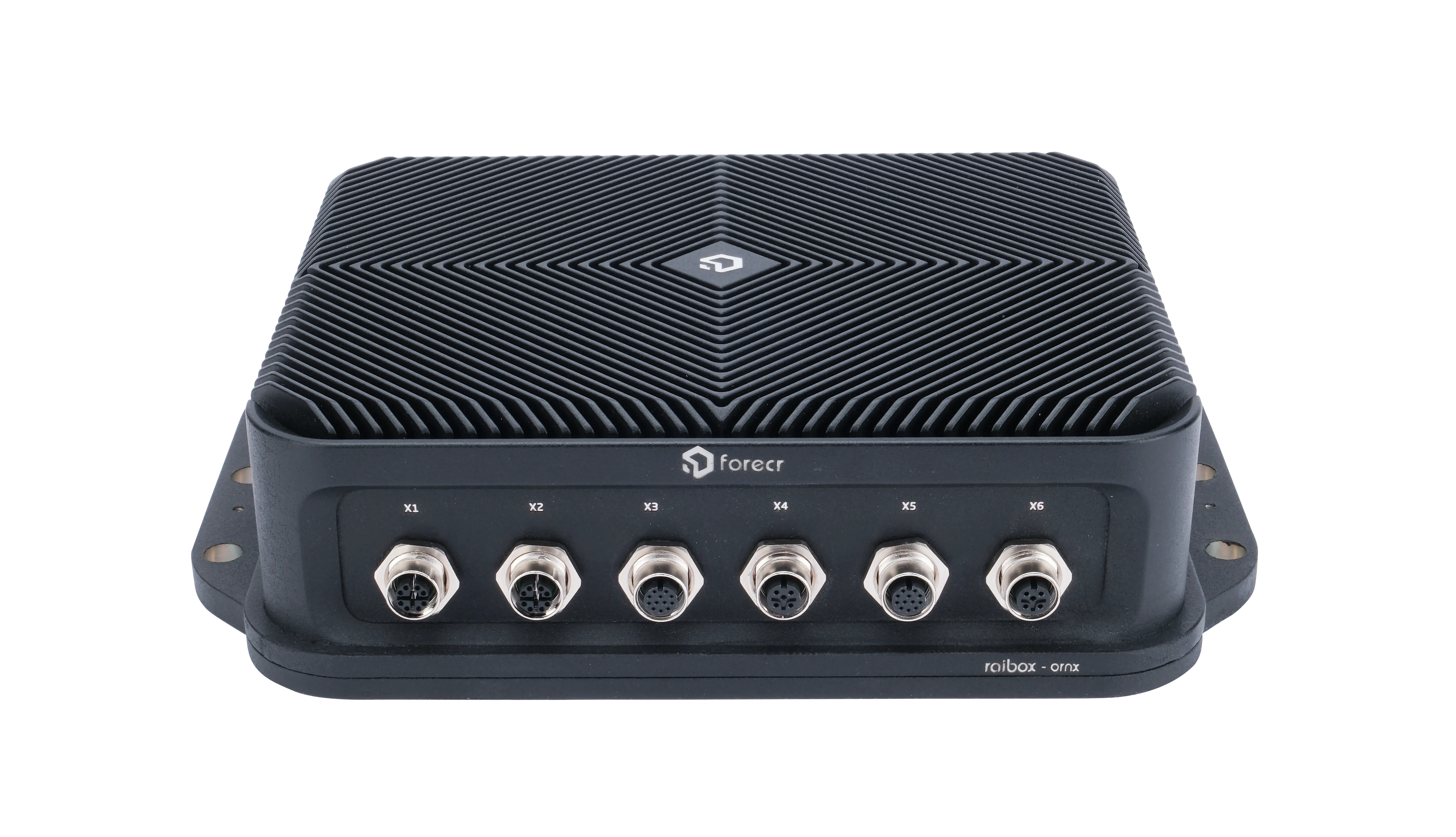

RAIBOX-ORNX is designed as an edge AI supercomputer for military and ruggedized applications. It can encode up to three 4K streams at 30FPS and decode up to nine 1080p streams at 60FPS with its powerful NVIDIA® Jetson™ Orin™ NX processor. Orin™ NX processor delivers 100 TOPS AI performance with its 1024 NVIDIA® Ampere CUDA® Cores, 32 Tensor Cores and 2 NVDLA engines.


RAIBOX can reach the maximum performance on simultaneous video processing applications with help of NVIDIA® Deepstream SDK. The performance achieved with MILBOX is 270 FPS for Resnet-34 based people detection and 32 FPS for RESNET-32 based pose estimation algorithms.


These benchmarks show that RAIBOX-ORNX is your edge AI supercomputer for multiple stream video processing applications in military or ruggedized environmental needs.

LONG ENDURANCE

RAIBOX-ORNX offers its users a robust and field-proven mechanical design. Together with its exquisite fanless design and wide operating temperature range, MILBOX-AGX can work long operation hours under heavy utilization of CPU and GPU. It is a perfect fit for railway environments.


Mechanical mounting is well-thought in the creation process of the RAIBOX-ORNX. Its ideal size for rugged railway systems enables RAIBOX-ORNX to be implemented in complete range of railway projects.


RAIBOX-ORNX has an approved thermal performance due to its robust mechanical design. Its exceptional thermal performance prevents RAIBOX-ORNX from reaching the thermal throttling point of the processors. In the long operation hours with the maximum utilization of CPU/GPU, the internal temperature does not surpass 63⁰C.

RAIBOX-ORNX has an approved thermal performance due to its robust mechanical design. Its exceptional thermal performance prevents RAIBOX-ORNX from reaching the thermal throttling point of the processors. In the long operation hours with the maximum utilization of CPU/GPU, the internal temperature does not surpass 63⁰C.

Mission Computer with Long Endurance
Rugged, Modern and Fast AI Military PC

RUGGED YET FAST

RAIBOX-ORNX allows you to connect every system in the mission with its rich industrial connectivity options. Other than the standard high-speed interfaces such as USB 3.1 and Gigabit Ethernet, it has rich IO options as RS-232, RS-422 and CAN BUS.


Since RAIBOX-ORNX is perfect for deep learning-based edge analytics and video processing applications, it can process 18-Full-HD video streams with the help of NVIDIA® Deepstream SDK. Also, with 4x GMSL Camera support, it is easy to integrate cameras in long ranges.


RAIBOX-ORNX is designed for military purposes, and it is mission ready with its extensive communication interfaces. Other than standard communication interfaces, it allows you to connect field bus communication networks using CAN BUS and RS232/RS485/RS422 multi-protocol serial ports, especially the vehicle information networks of military land vehicles.

CONNECT EVERYTHING

RAIBOX-ORNX has a unique and robust hardware design together with its rich interfaces. Since the maximum throughput is crucial for field operations, we designed RAIBOX-ORNX to achieve maximum throughput for each available interface.


RAIBOX-ORNX has four Gigabit Ethernet ports for connecting camera blocks around a military vehicle for situational awareness applications, a USB 3.2 port for software flashing and high speed cameras, four RS-422 ports, four RS-232 ports together with two CAN BUS ports for connecting seamlessly to vehicle information networks.


To maintain the best performance possible, we test each high-speed interfaces on our products. RAIBOX-ORNX includes an M.2 Key-M SSD slot for high speed NVMe SSDs with the throughput of over 7 GB/sec with 4x PCIe Gen 4 interface. Additionally, the USB 3.2 delivers top-notch performance which can achieve over 9 GB/sec under full utilization with high speed cameras or high speed USB drives.

Rich Connectivity Options with 4x RS-422, 4x RS232, 4x Gigabit Ethernet
Fanless & Waterproof IP67 Compatible Design with Circular Military Connectors

FANLESS & WATERPROOF

RAIBOX-ORNX has a wide range of voltage input. Since it has an 11-140 VDC power range, which is compatible with railway standards and support weeks of operations regardless of any problems. RAIBOX-ORNX maintains stability under long working hours of maximum GPU and CPU.


As a company, reliability and durability is vital for us. Starting from the beginning of the creation process, we carefully select our board stack-up and components. Its low power operation (<40 Watts) capability and its power circuit reliability set apart RAIBOX-ORNX from others.


RAIBOX-ORNX has IP67 compliant military circular connectors and railway standards which enables it to be used in a wide range of applications, from indoor to outdoor, dusty operations and under heavy rain without any issues.

Technical Specifications

Supported Modules

NVIDIA Jetson Orin Nano 4GB / 8GB

NVIDIA Jetson Orin NX 8GB / 16GB

Memory

4 GB 64-bit LPDDR5 / 8 GB 128 bit LPDDR5

8 GB 256-bit LPDDR5 / 16 GB 128 bit LPDDR5

Graphics Interfaces 1x HDMI 2.0 (max resolution 3840x2160)
Interfaces

2x Gigabit Ethernet

1x USB 3.1 Type-A

1x USB 3.1 Type-C

2x CAN Bus (Isolated)

2x RS232/RS422/RS485 (Isolated)

4x Digital In, 4x Digital Out (Isolated)

4x GMSL (FAKRA Connector)

Wireless Communication WiFi/Bluetooth/LTE Connectivity by extension sockets
Power Supply14-110 VDC
Extension Sockets

1x M.2 Key-E, 1x M.2 Key-B, 1x SIM

Mass Storage

2x M.2 Key-M SSD Slot

Ambient Conditions-25°C ... +85°C
Form Factor / Dimensions275 mm x 200 mm x 75 mm, 2750 gr
Operating SystemsUbuntu Linux 20.04
StandardsEN50155, EN45545-2, IP67
JetPack SupportJetPack 5.1
