MILBOX-AGX Overview and Connector Definitions
WHAT YOU WILL LEARN?
1- The basic perspective over MILBOX-AGX
2- The definitions of each connector
ENVIRONMENT
Hardware: MILBOX-AGX
Forecr’s MILBOX-AGX is industrial rugged PC on Nvidia Jetson AGX Orin processor modules for edge analytics. It is compatible with multi stream deep learning applications.
The Basic Perspective over MILBOX-AGX
Technical Specifications
NVIDIA Jetson AGX Orin SoM option
1x HDMI 2.0 (max resolution 3840x2160)
4x Gigabit Ethernet
1x USB 3.1 (Recovery)
1x USB 2.0 (Serial Console)
2x CAN Bus
4x RS232
4x RS422
1x M.2 Key-M slot
1x SD Card slot
18-32 VDC Input
OS: Ubuntu Linux 20.04 or 22.04
Dimensions: 210mm x 296mm x 92mm, 4750 grams

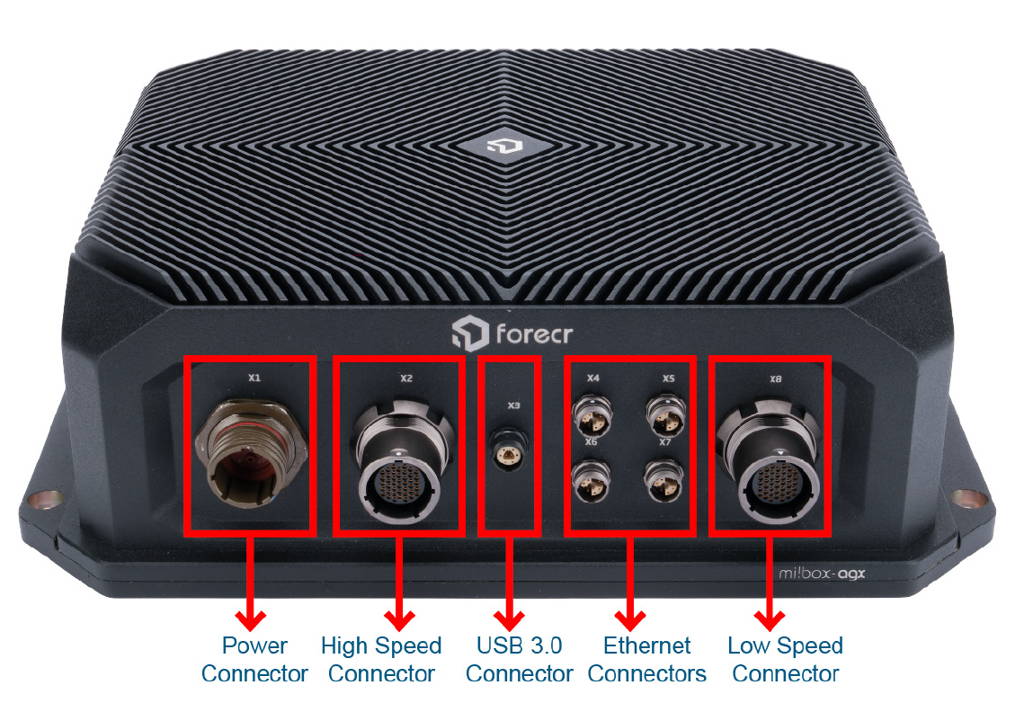

The Definition of Each Connector

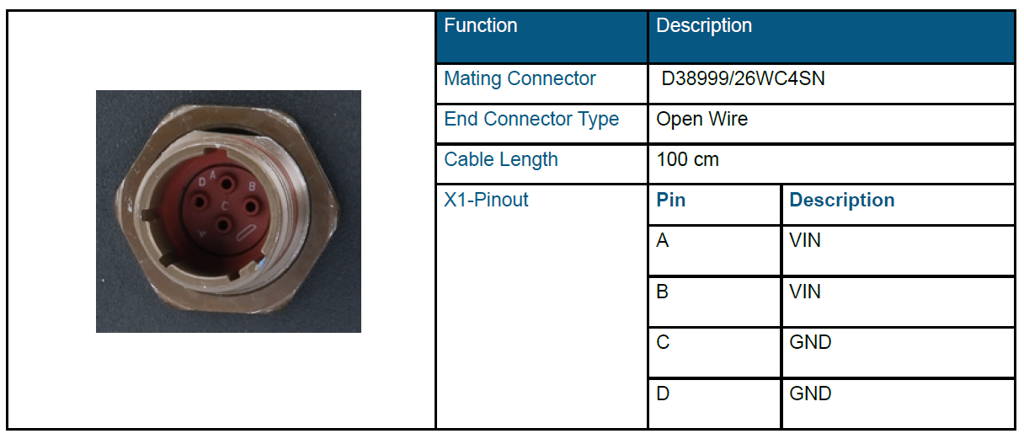

MILBOX-AGX Power Connector
The MILBOX-AGX implements 4-pin connector (labeled as "X1") that accepts +18V to +32V DC power. The mating connector type is "D38999/26WC4SN". It is located on the front side of the PC.

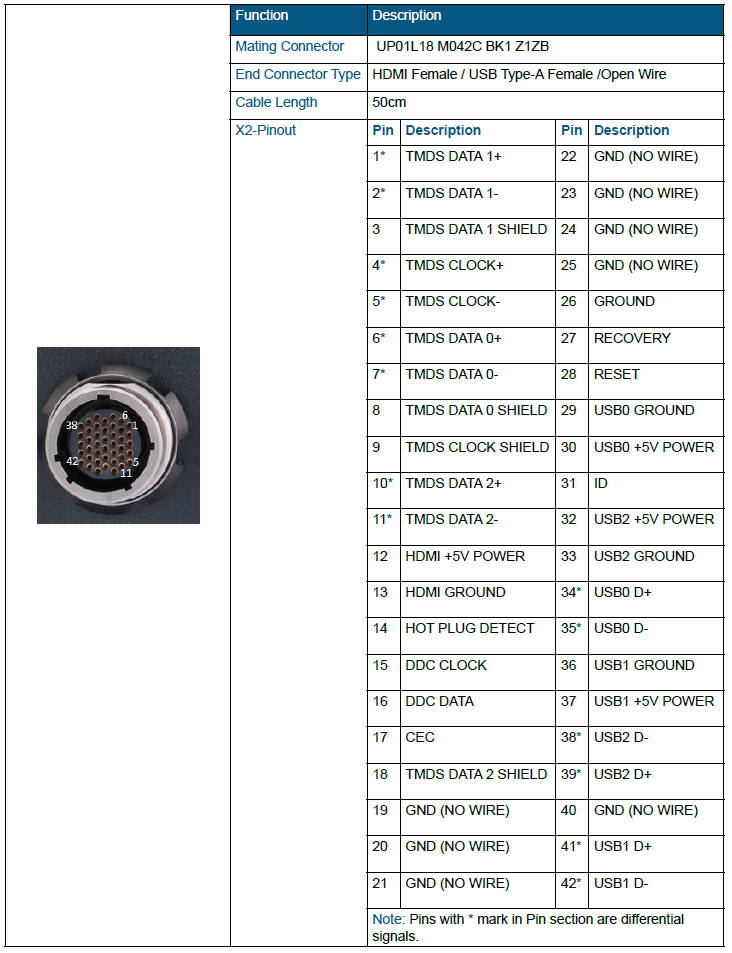

MILBOX-AGX High Speed Connector
The MILBOX-AGX implements 42-pin connector (labeled as "X2") for HDMI, USB interfaces and Reset-Recovery signals (for software installation). The mating connector type is "UP01L18 M042C BK1 Z1ZB". It is located on the front side of the PC.

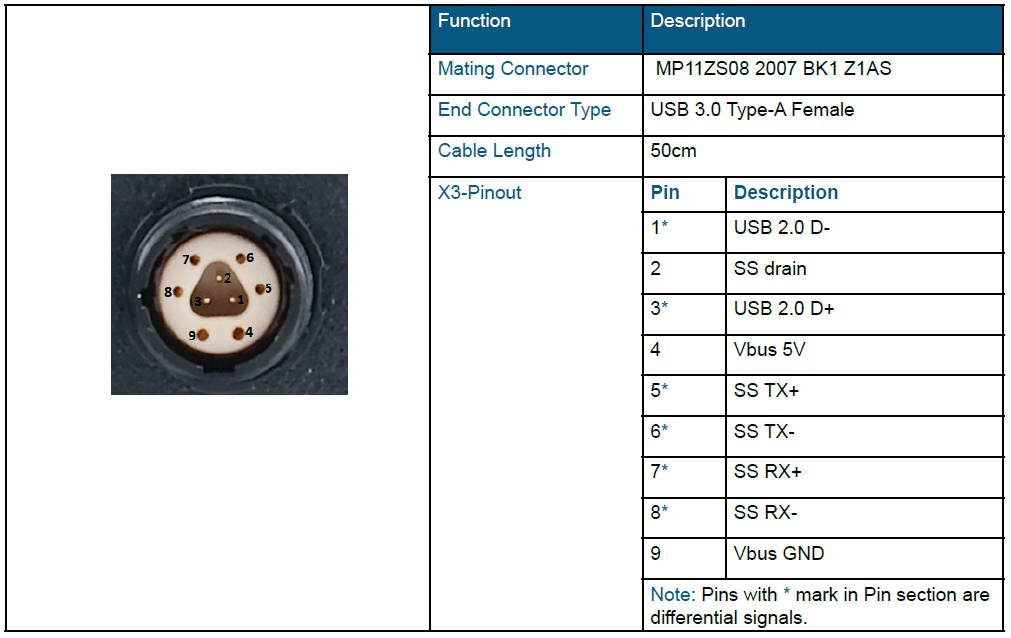

MILBOX-AGX USB-3.0 Connector
The MILBOX-AGX implements 9-pin connector (labeled as "X3") which has USB-3.0 for software installation. The mating connector type is "MP11ZS08 2007 BK1 Z1AS". It is located on the front side of the PC.

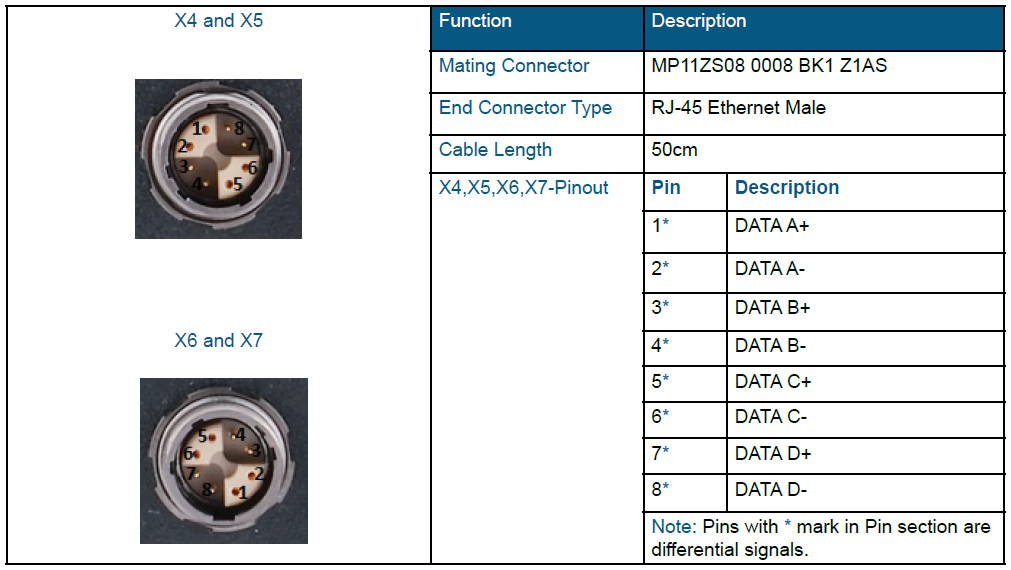

MILBOX-AGX Ethernet Connectors
The MILBOX-AGX implements 4-port Ethernet connectors (labeled as "X4", "X5", "X6" and "X7") for internet communication. The mating connector type is "MP11ZS08 0008 BK1 Z1AS". They are located on the front side of the PC.

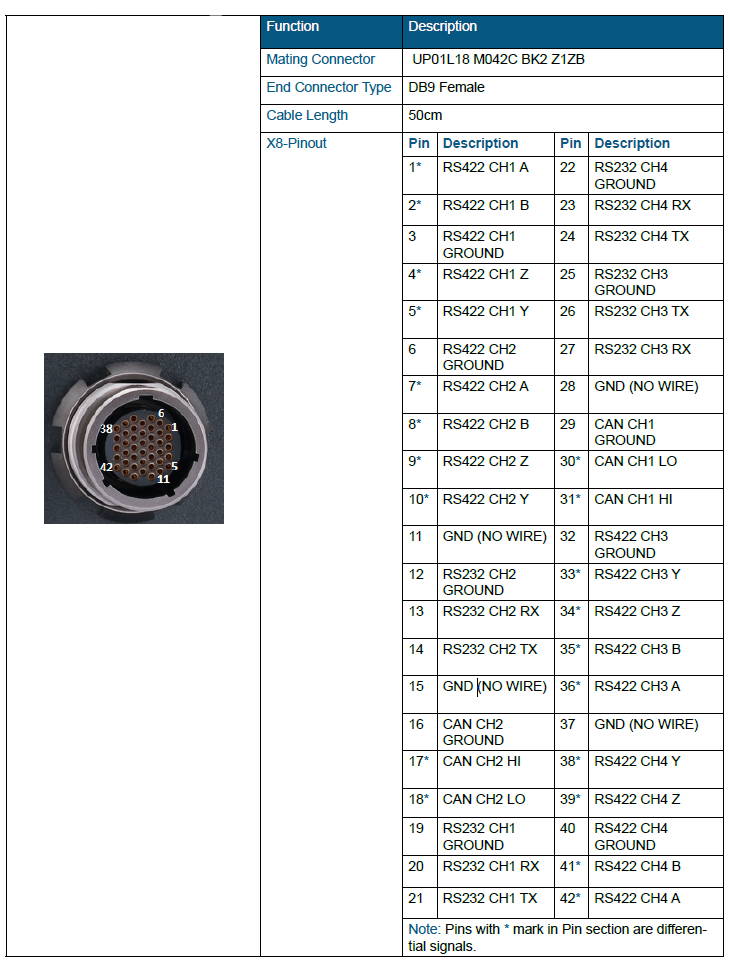

MILBOX-AGX Low Speed Connector
The MILBOX-AGX implements 42-pin connector (labeled as "X8") which has 8 serial (4xRS232 and 4xRS422) and 2 CAN Bus interfaces. It's mating connector type is "UP01L18 M042C BK2 Z1ZB". It is located on the front side of the PC.
