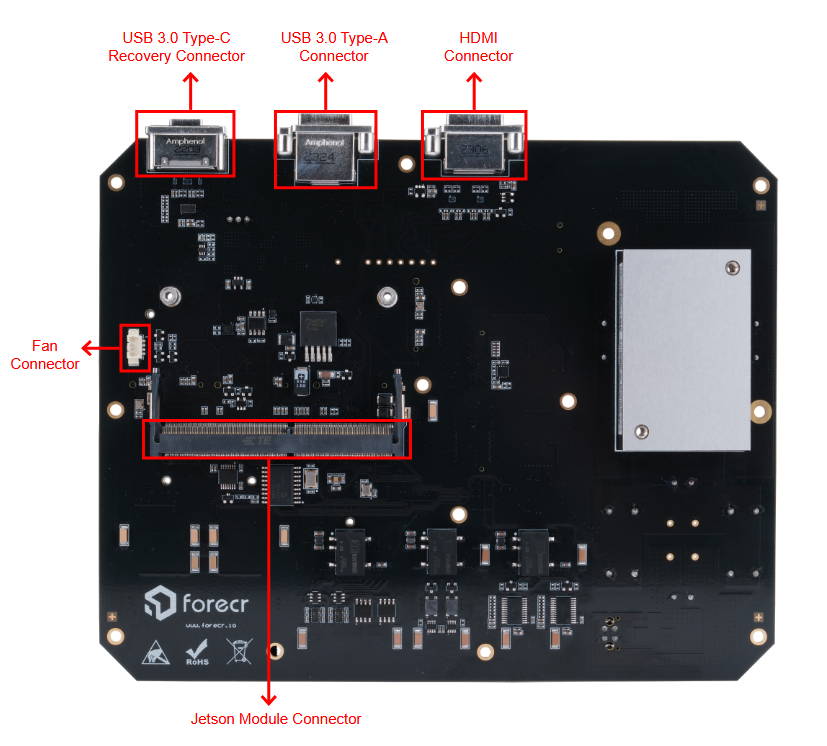

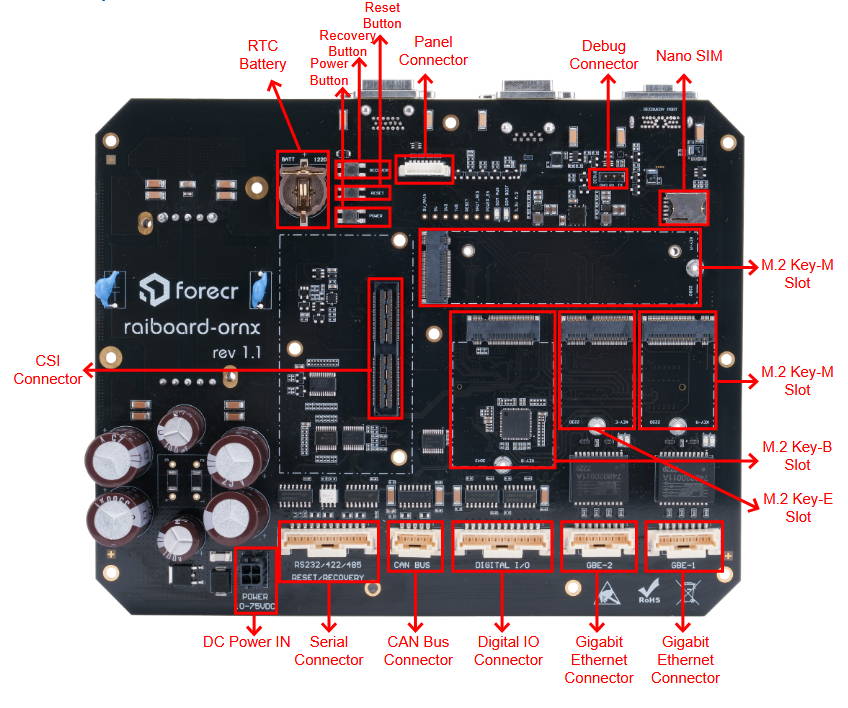

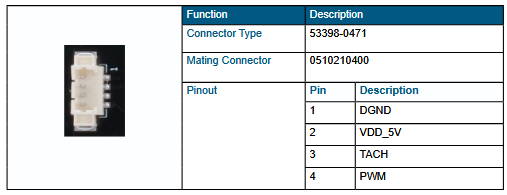

RAIBOARD-ORNX Overview and Connector Definitions

Forecr’s RAIBOARD-ORNX is industrial carrier board based on Nvidia Jetson Orin NX and Orin Nano processor modules for edge analytics. It is compatible with multi stream deep learning applications.

TECHNICAL SPECIFICATIONS

NVIDIA Jetson Orin Nano 4GB / 8GB
NVIDIA Jetson Orin NX 8GB / 16GB
Memory 4 GB 64-bit LPDDR5 / 8 GB 128 bit LPDDR5
8 GB 256-bit LPDDR5 / 16 GB 128 bit LPDDR5
Graphics Interfaces 1x HDMI 2.0(max resolution 3840x2160)
Interfaces 2x Gigabit Ethernet
1x USB 3.1 Type-A
1x USB 3.1 Type-C
2x CAN Bus (Isolated)
2x RS232/RS422/RS485 (Isolated)
4x Digital In (Isolated)
4x Digital Out (Isolated)
Wireless Communication WiFi/Bluetooth/LTE Connectivity by extension sockets
Power Supply 10-75VDC
Extension Sockets 1x M.2 Key-E, 1x M.2 Key-B, 1x SIM
Mass Storage 2x M.2 Key-M SSD Slot
Ambient Conditions -25°C ... +85°C
Form Factor / Dimensions 275 mm x 200 mm x 75 mm 2750gr
Operating Systems Ubuntu Linux 20.04
Ubuntu Linux 22.04
Standards (with Raibox chassis) EN50155, EN45545-2 HL3, EN61373, EN60068, IP67
JetPack 5.x
JetPack 6.x

RAIBOARD-ORNX Power Button

RAIBOARD-ORNX implements a power button for energize the platform when in button powered mode

RAIBOARD-ORNX Recovery Pushbutton

RAIBOARD-ORNX implements a recovery pushbutton. Recovery button should be pressed with reset button at the same time. After released reset button, recovery button should be pressed a little bit more (min. 250 ms)

RAIBOARD-ORNX Reset Pushbutton

RAIBOARD-ORNX implements a reset button to reset the Jetson SoM.

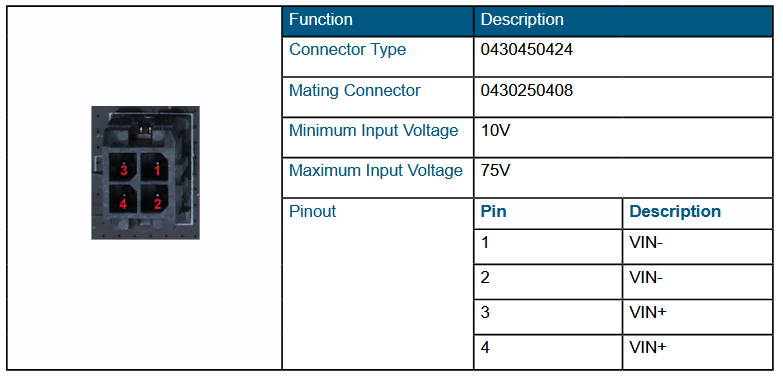

RAIBOARD-ORNX Power Connector

The RAIBOARD-ORNX implements 4-Pin Power Terminal Connector that accepts +10V to +75V DC power. The mating connector is "0430250408". The first and the second pins are negative, third and fourth pins are positive.

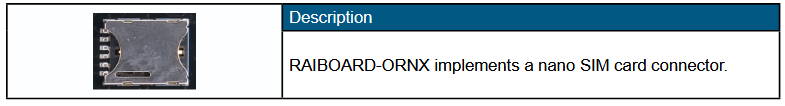

RAIBOARD-ORNX SIM Card Connector

The RAIBOARD-ORNX implements a nano SIM card connector.

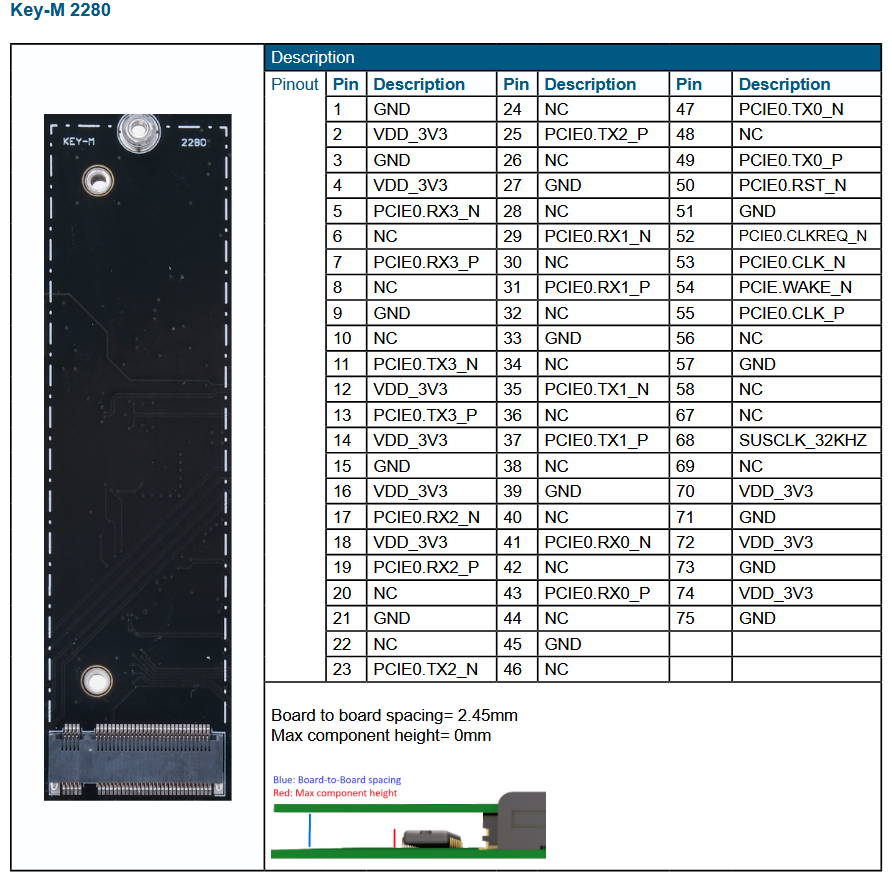

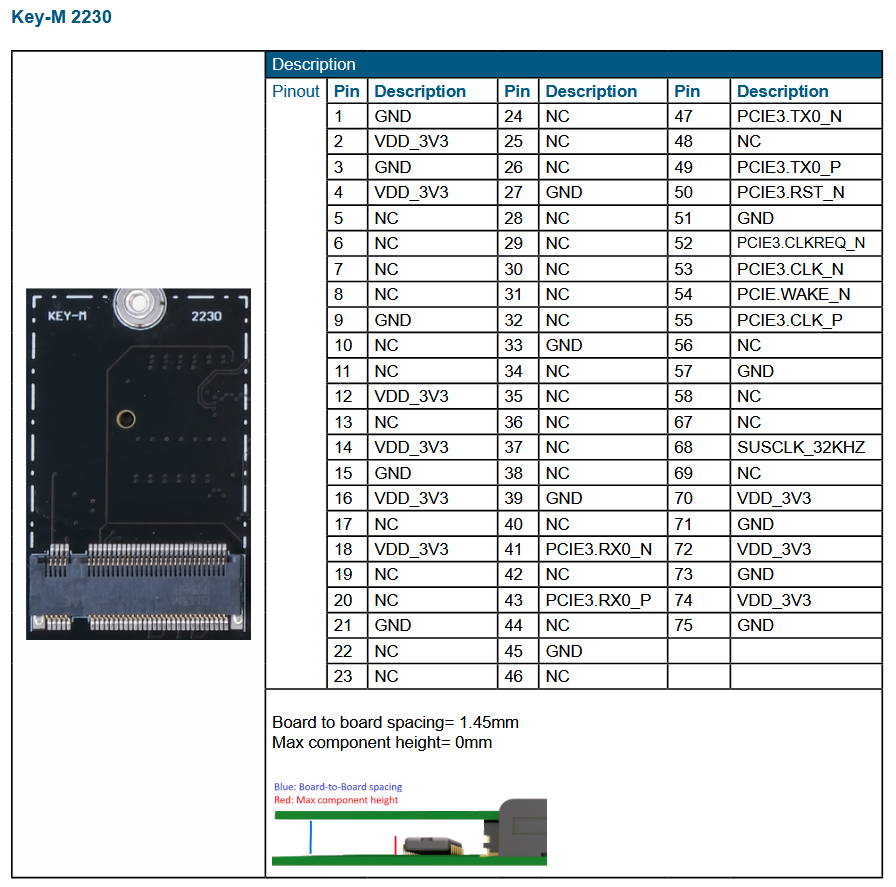

RAIBOARD-ORNX M.2 Key-M Connectors

The RAIBOARD-ORNX implements two M.2 M-Key Connector(1x 2230, 1x 2280) for suitable modules.

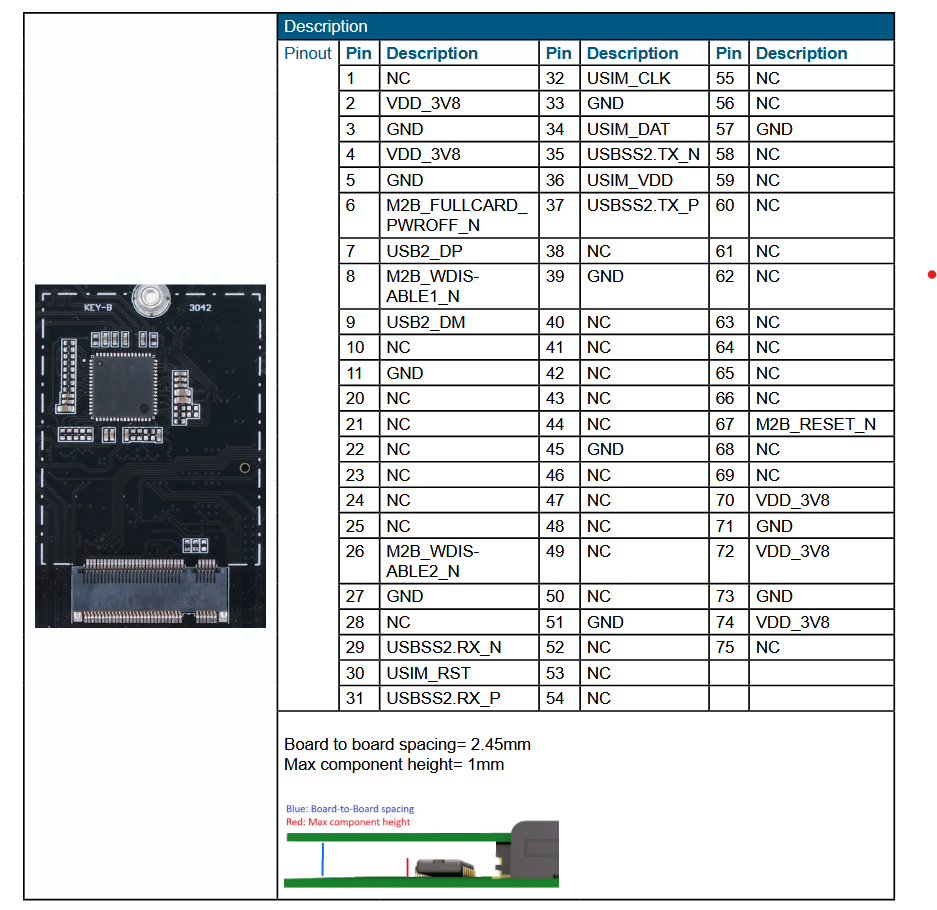

RAIBOARD-ORNX M.2 Key-B Connector

The RAIBOARD-ORNX implements a M.2 Key-B Connector for suitable modules.

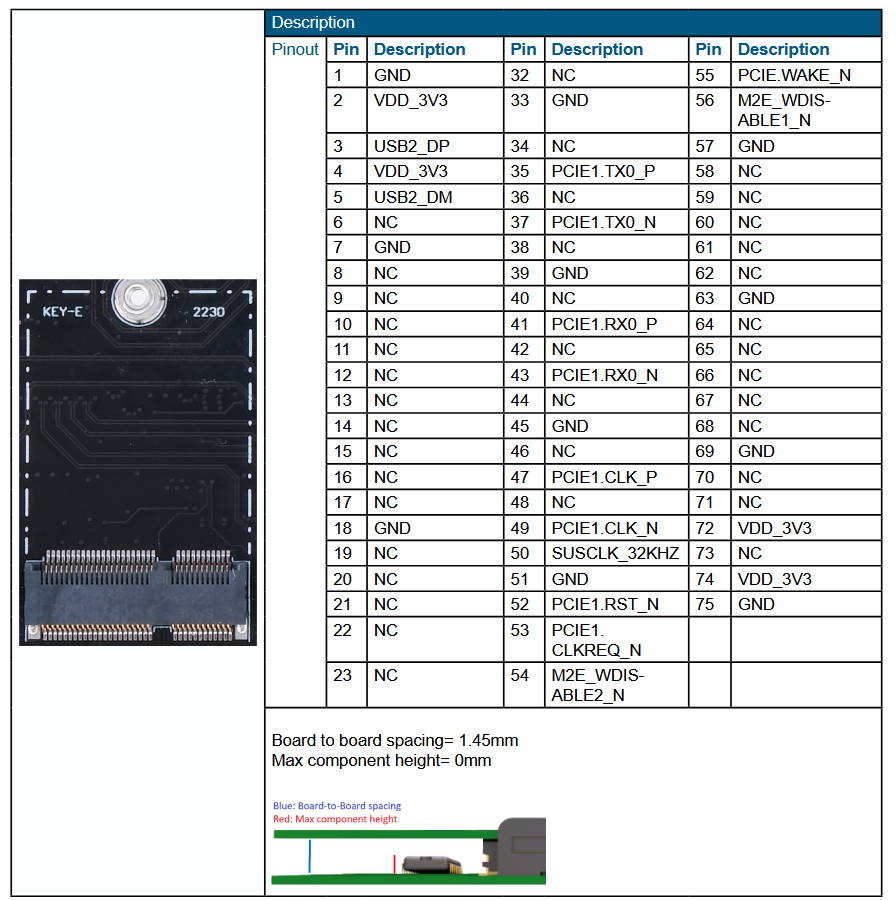

RAIBOARD-ORNX M.2 Key-E Connector

The RAIBOARD-ORNX implements a M.2 E-Key Connector for suitable modules.

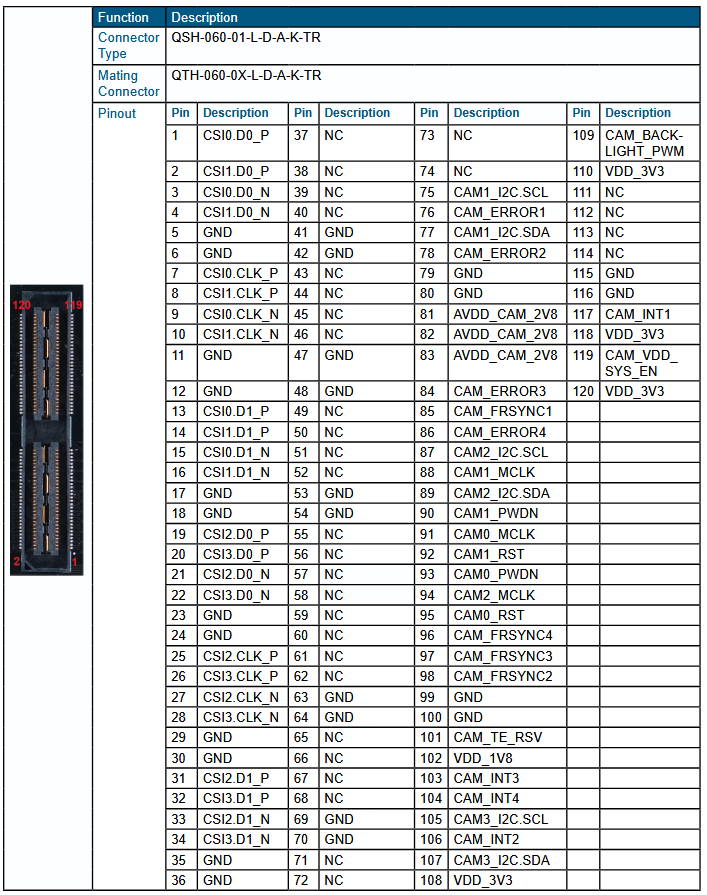

RAIBOARD-ORNX CSI Connectors

The RAIBOARD-ORNX implements 8-lane CSI camera connector for camera adapter boards. The connector model is "QSH-060-01-L-D-A-K-TR" produced by Samtec Inc..

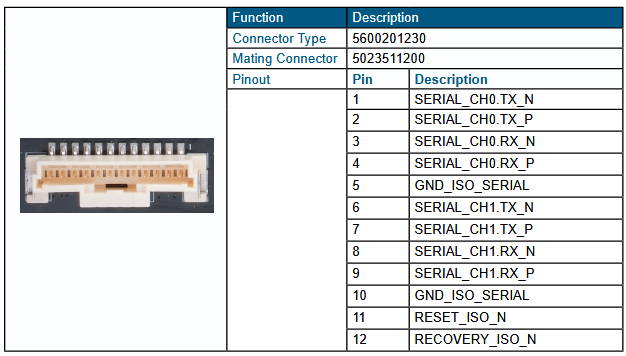

RAIBOARD-ORNX Serial Communication Connector

The RAIBOARD-ORNX implements 12 pin serial communication connector which has 8 serial, 1 Reset, 1 Recovery and 2 ground pins. Both serial communications can be configurable for RS232, RS422 or RS485 protocols independently. It's connector type is "5600201230" produced by Molex.

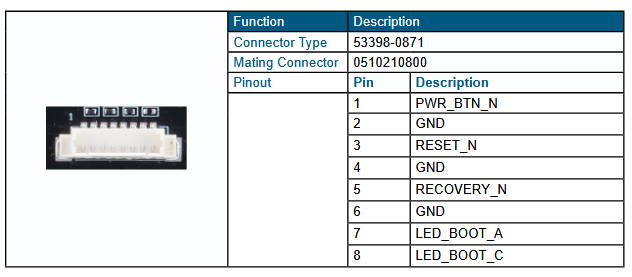

RAIBOARD-ORNX Panel Connector

The power, recovery & reset button's signals located at the panel connector. The connector type is "53398-0871". The mating connector is "51021-0800" produced by Molex.

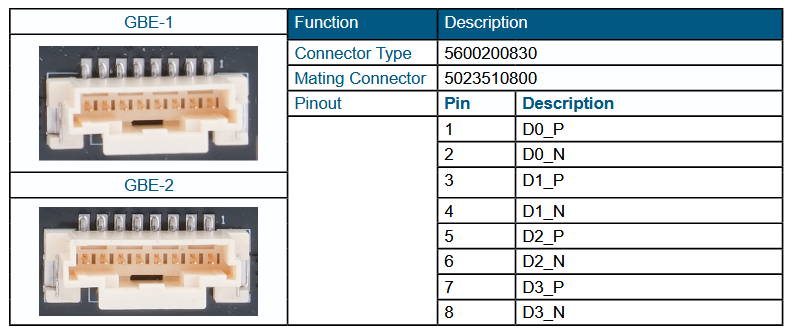

RAIBOARD-ORNX Ethernet Connector

The RAIBOARD-ORNX implements 2 port Ethernet connectors for internet communication. The connector type is "5600200830" produced by Molex.

DSBOARD-ORNX Recovery Mode Micro USB Connector

The DSBOARD-ORNX implements a Micro USB connector to allow to install or upgrade the operating system. It is located on the front side of the board.

DSBOARD-ORNX Debug Mode Header Connector

The DSBOARD-ORNX implements a header connector to access the module by using TTL connection. It is located on the front side of the board.

Thank you for reading our blog post.
