MILBOX-AGX Getting Started

In this blog post, we will explain how to getting started with MILBOX-AGX.

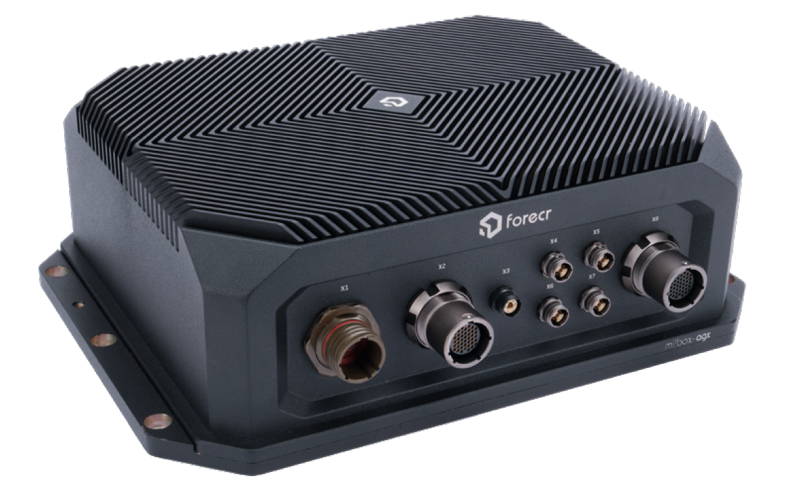

The MILBOX-AGX, with its Jetson AGX Orin processor, allows to perform signal processing for intelligence and distributed edge computing, surveillance, targeting, command and control applications on-board embedded air, ground, undersea, and surface vehicle platforms. Optimized for AI and machine learning, its integrated Jetson AGX Orin module delivers 275 TOPS for deep neural networks, it’s designed to handle the most demanding AI tasks with ease.

NVIDIA® Jetson™ AGX Orin™

• 12 core Arm Cortex-A78AE v8.2 64-bit CPU 3 MB L2+6 MB L3 or

   8-core Arm Cortex-A78AE v8.2 64-bit CPU 2 MB L2+4 MB L3

• 2048 core NVIDIA Ampere graphics card equipped with 64 Tensor Core or

   1792 core NVIDIA Ampere graphics card equipped with 56 Tensor Core

• 64GB 256-bit LPDDR5 204,8 GB/s or

   32GB 256-bit LPDDR5 204,8 GB/s

Form Factors

• Power Nominal 28VDC, 18VDC-32VDC

• Size ; 210mm x 296mm x 92mm, 4750 grams

• IP67 Chassis

• MIL-STD-1275/704, MIL-STD-810,MIL-STD-461

• Circular Connectors compatible with MIL standards

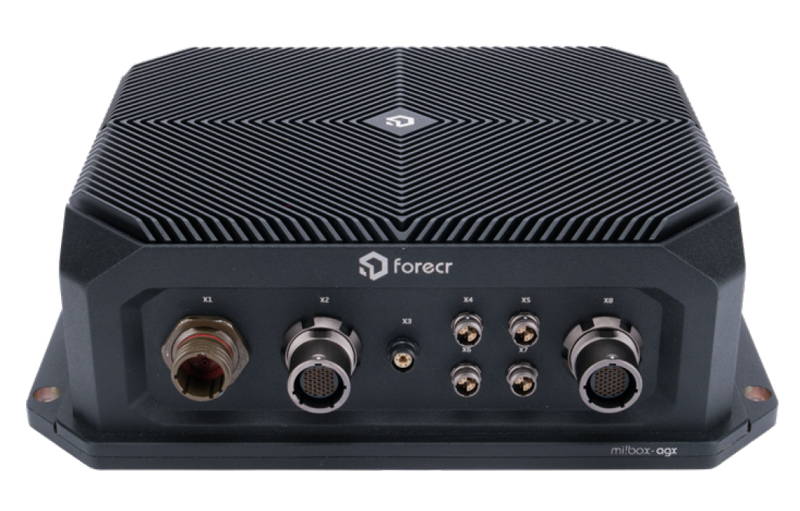

X2 connector includes HDMI and USB2.0 lines. Mating connector: UP01L18 M042C BK1 Z1ZB

X3 connector is defined as USB3.0 connector. Mating connector: MP11ZS08 2007 BK1 Z1AS

X4, X5, X6 and X7 connectors are defined as GigaBit Ethernet connectors. Mating connector: MP11ZS08 0008 BK1 Z1AS

X8 connector includes RS 232/422 and CanBus line. Mating connector: UP01L18 M042C BK2 Z1ZB

ETHERNET

4 x Gigabit Ethernet LAN interfaces

SERIAL

4 x RS232 (Isolated), 4 x RS422 (Isolated)

CAN

2 x Control Area Network (CAN) v2.0 ports (Isolated)

USB

3 x USB ports (2 x USB 2.0, 1 x USB 3.0 for Recovery)

VIDEO OUTPUT

1 x HDMI
