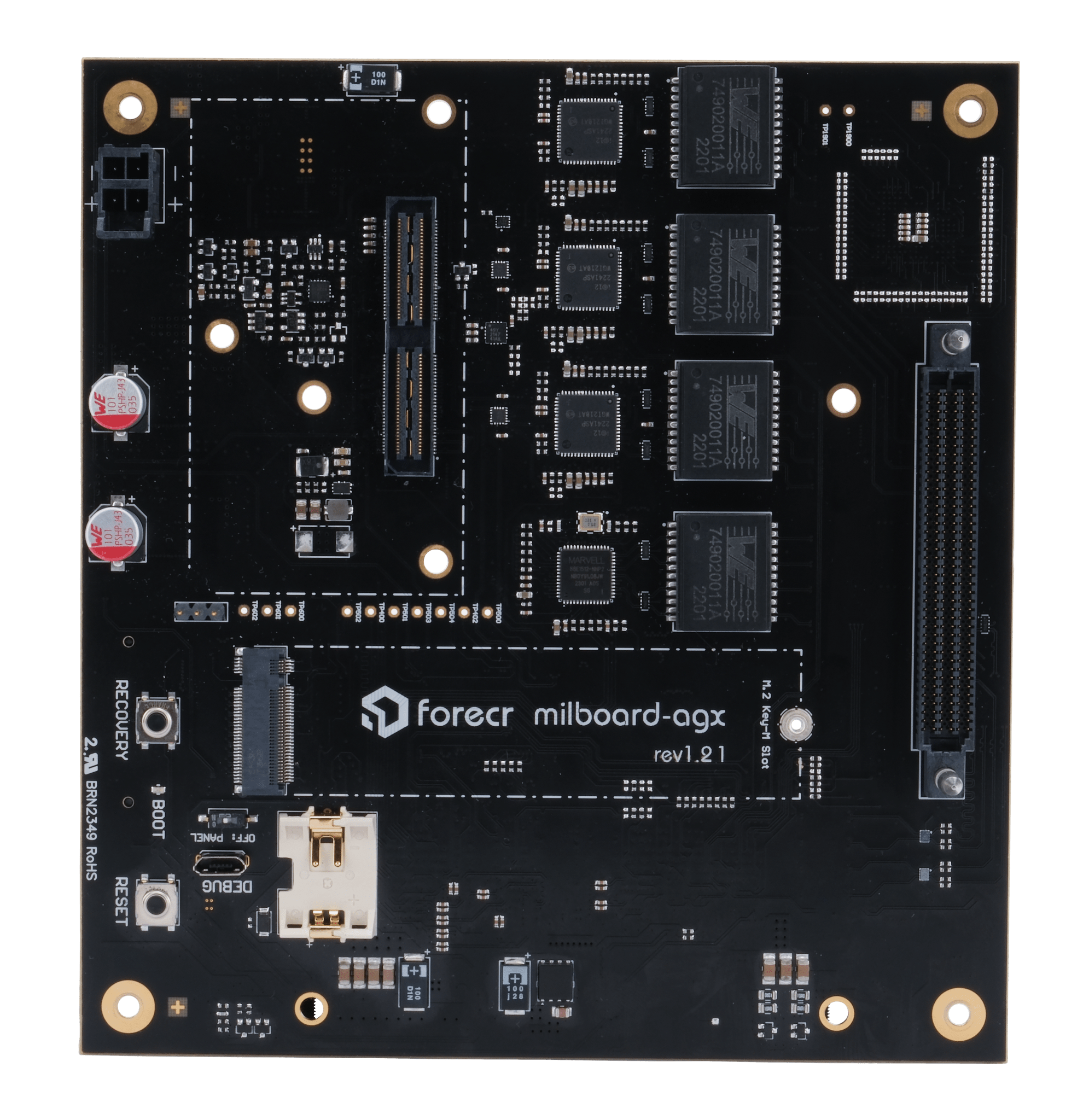

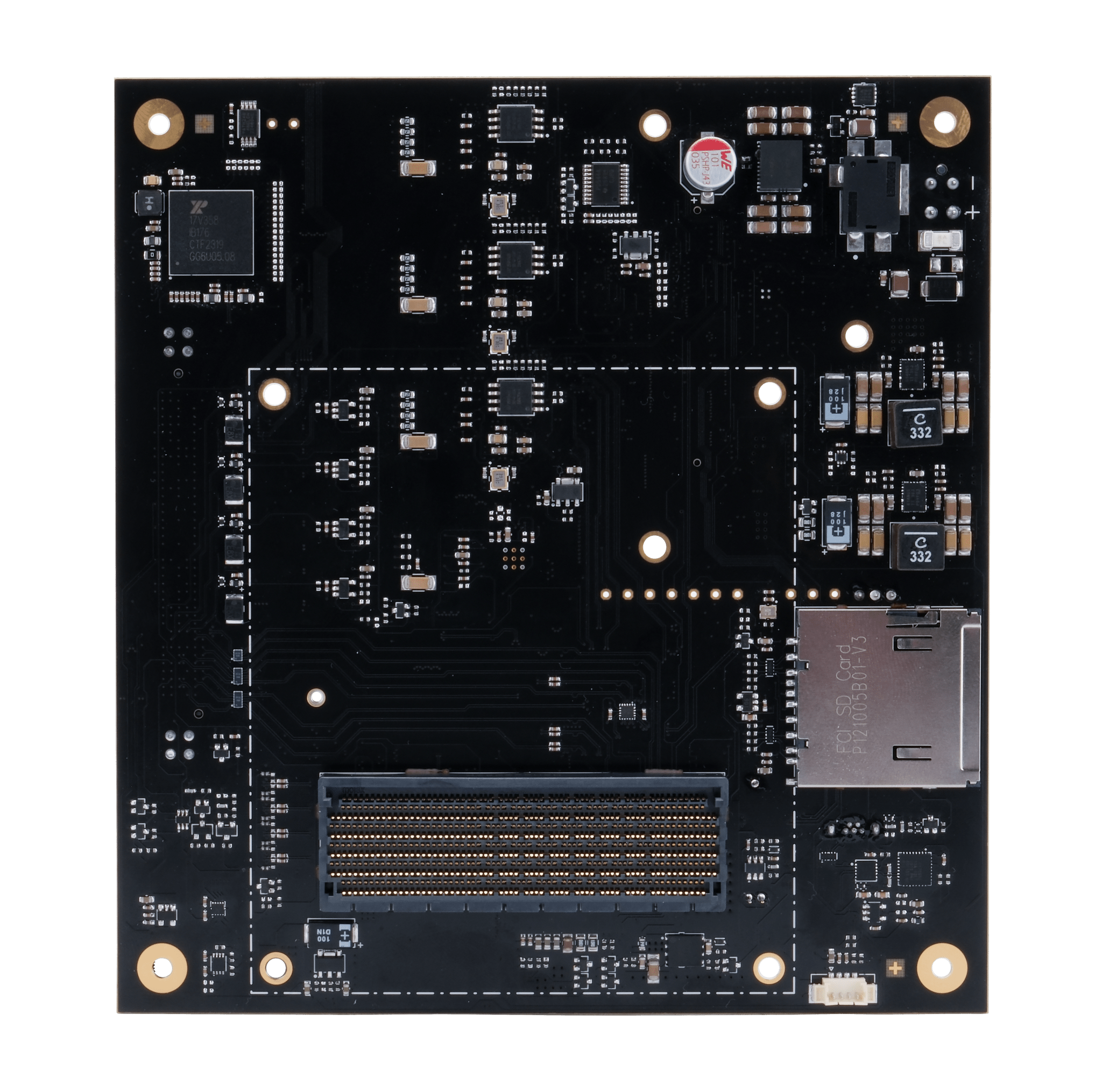

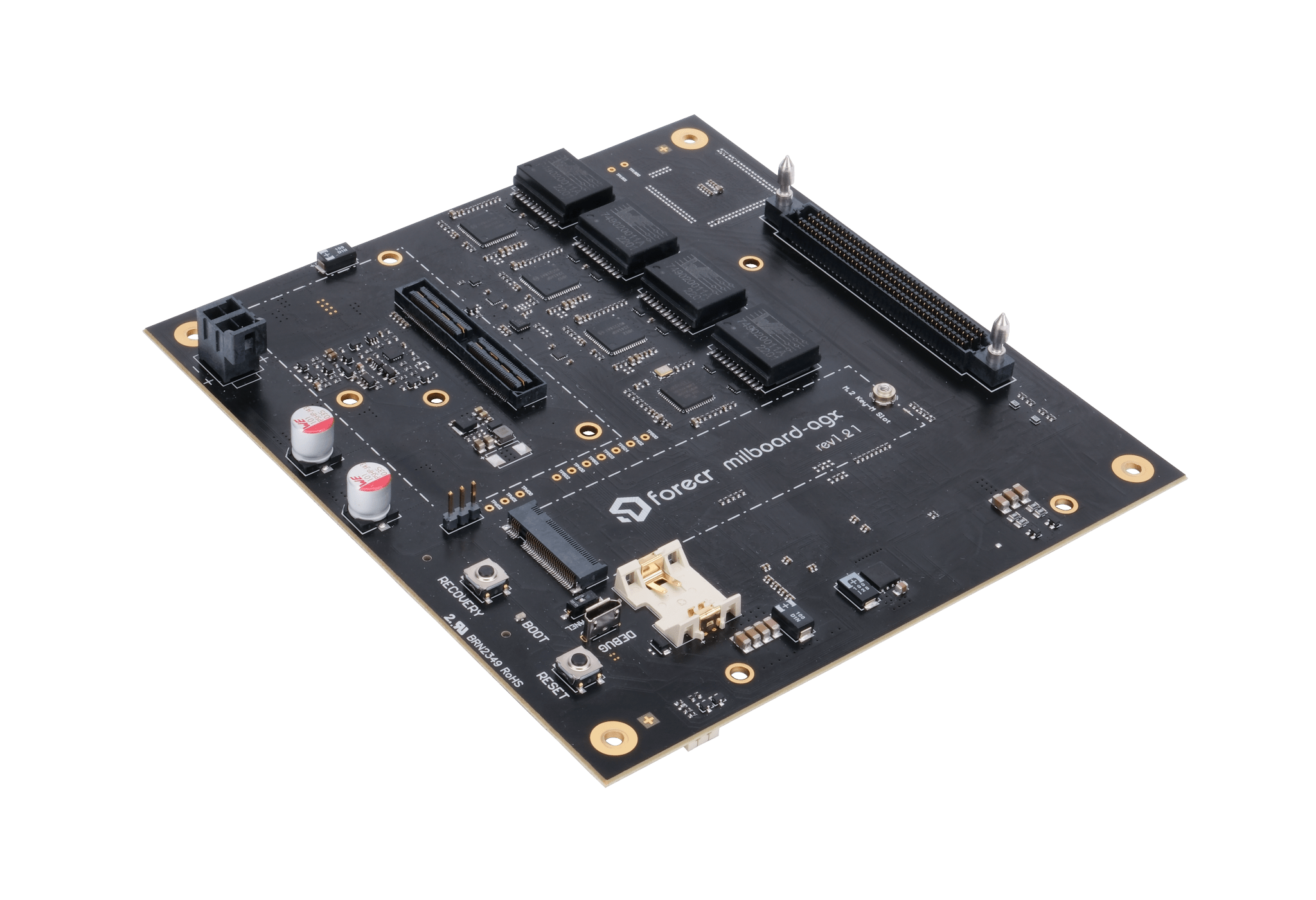

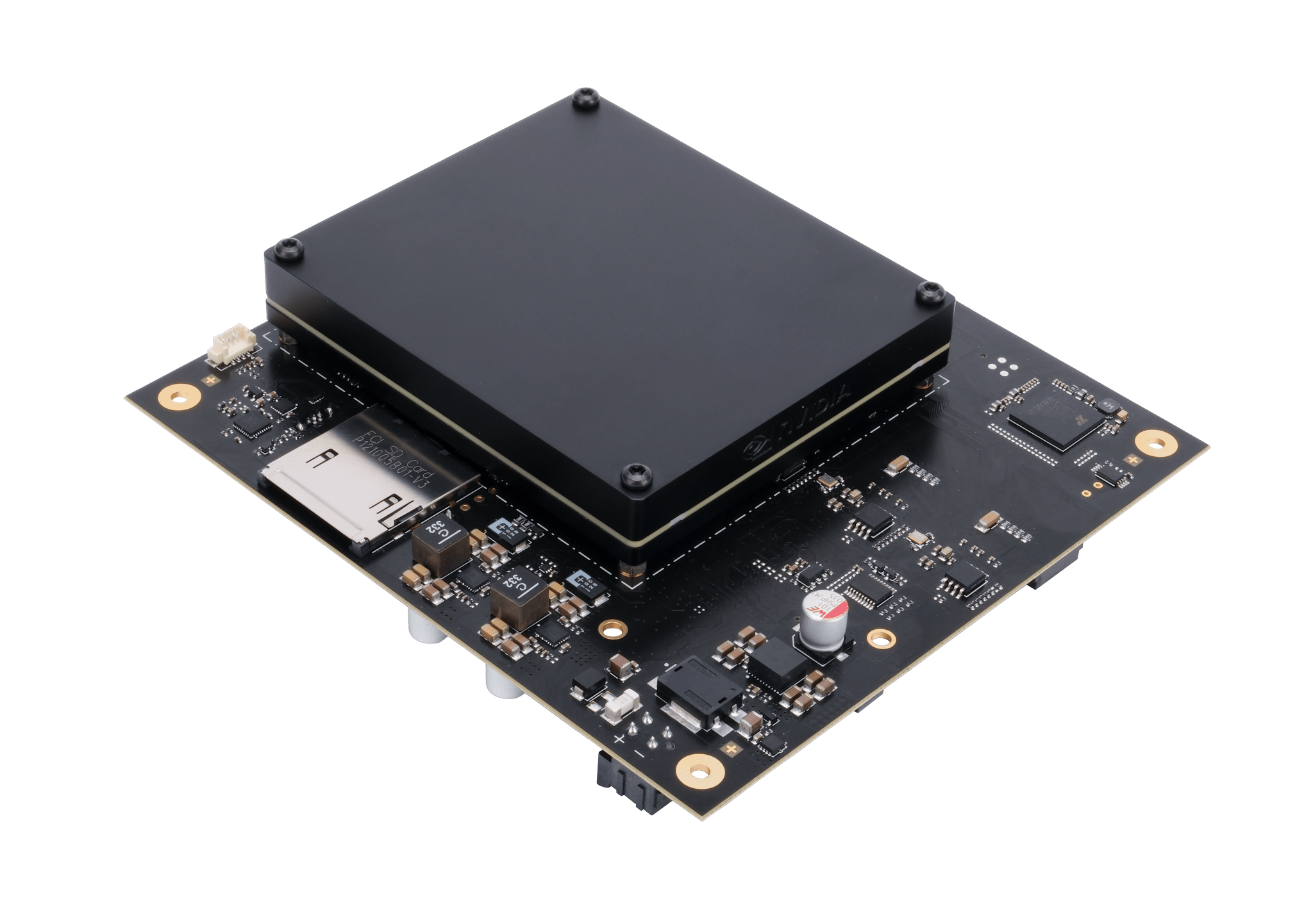

Jetson AGX Xavier™ & Jetson AGX Orin™ Carrier Board - MILBOARD-AGX
MILBOARD-AGX is a carrier board designed for harsh military and aerospace environments. It is powered by the NVIDIA Jetson AGX Xavier module. which has an NVIDIA Volta GPU and an eight-core ARM64 CPU. providing high processing power for complex applications.
Choose options
It is a versatile solution for a wide range of military and aerospace applications
MILBOARD-AGX is a carrier board designed for harsh military and aerospace environments. It is powered by the NVIDIA Jetson AGX Xavier module, which has an NVIDIA Volta GPU and an eight-core ARM64 CPU, providing high processing power for complex applications. The carrier board features a rugged design that ensures reliable performance even in the most extreme conditions. It has a wide operating temperature range and a robust power management system that can handle input voltages from 18V to 32V.
Military-Grade Carrier Board
The MILBOARD-AGX is designed for the most demanding military and aerospace applications, providing supercomputer-level performance in a ruggedized form. Powered by NVIDIA Jetson AGX Xavier or Orin SoM, it offers unparalleled processing power and reliability. This makes it an ideal solution for complex applications in harsh environments.
Extensive Connectivity Options
Stay connected with rich I/O options, including 4x Gigabit Ethernet, 2x USB 3.2, and 8x UART interfaces. These extensive connectivity features ensure seamless integration with various devices and sensors, enhancing operational capabilities.
High-Speed Data Transfer
Benefit from high-speed data transfer capabilities with 2x USB 3.2 interfaces and multiple Gigabit Ethernet ports. This ensures efficient communication and rapid data access, vital for mission-critical applications.
Robust and Reliable Design
The MILBOARD-AGX is built to withstand extreme temperatures and tough conditions, ensuring reliable performance 24/7. Its rugged design and wide operating temperature range (-40°C to +85°C) make it suitable for the harshest environments.
Powerful AI and Video Capabilities
Leverage powerful AI capabilities with the NVIDIA Volta GPU and support for deep neural networks. The board also supports 4K video display via DP 1.4, making it perfect for high-definition video applications.
Versatile Storage Solutions
Expand your storage with the MILBOARD-AGX’s M.2 Key-M SSD slot and 64 GB eMMC flash memory. This allows for quick data retrieval and ample storage for critical data, improving overall system efficiency.
Jetson AGX Xavier™ & Jetson AGX Orin™ Carrier Board - MILBOARD-AGX Use Cases
Autonomous Systems
Enable seamless integration into autonomous systems for various applications such as self-driving vehicles, drones, and robotic platforms, facilitating real-time decision-making and navigation in dynamic environments.
Defense
FORECR's rugged industrial-grade computing solutions, featuring custom carrier boards and BOX PCs with NVIDIA Jetson modules, empower defense systems with advanced capabilities such as real-time threat analysis, target tracking, and autonomous operation in mission-critical environments.
Aerospace
Provide seamless integration with aerospace equipment and sensors, ensuring reliability and performance in harsh environmental conditions, critical for space exploration and satellite communication systems.
Jetson AGX Xavier™ & Jetson AGX Orin™ Carrier Board - MILBOARD-AGX Technical Specifications
| Supported Modules |
NVIDIA Jetson AGX Xavier 32GB NVIDIA Jetson AGX Xavier 64GB NVIDIA Jetson AGX Xavier Industrial NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64GB NVIDIA Jetson AGX Orin Industrial |
| Memory |
32 / 64 GB 256-bit LPDDR4x |
| Graphics Interfaces |
1x HDMI 2.0(max resolution 3840x2160) |
| Interfaces |
4x Gigabit Ethernet 2x USB 3.2 2x CAN Bus 8x UART 1x MicroUSB 2.0 (Debug UART) 1 x I2C 1 x SPI |
| Wireless Communication |
None |
| Power Supply |
18-30 VDC |
| Extension Sockets |
SD Card |
| Mass Storage |
32 / 64 GB eMMC 5.1 Flash 1x M.2 Key-M SSD Slot 1x Camera Connector (6 CSI camera support) |
| Ambient Conditions |
-40°C ... +85°C |
| Form Factor / Dimensions |
150 mm x 140 mm, 120 gr |
| Operating Systems |
Ubuntu Linux 18.04 / 20.04 / 22.04 |
| JetPack Support |
JetPack 5.x, 6.x |
