DSBOX-ORN boasts a powerful NVIDIA Jetson Orin™ Nano processor that has the ability to decode 1080p30 supported by 1-2 CPU cores. This processor is equipped with up to 1024 NVIDIA® CUDA® cores, 32 Tensor Cores, and 6-core Arm® 64-bit CPU, delivering up to 40 TOPS AI performance
By utilizing NVIDIA's DeepStream SDK, users can achieve optimal performance in simultaneous video processing applications. With full utilization of the GPU, up to 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores and GPU Max Frequency is 625MHz. Detailed benchmarks are available on NVIDIA's DeepStream SDK website, showcasing DSBOX-ORN as the premier AI deployment system for multiple stream video processing applications based on deep learning algorithms.

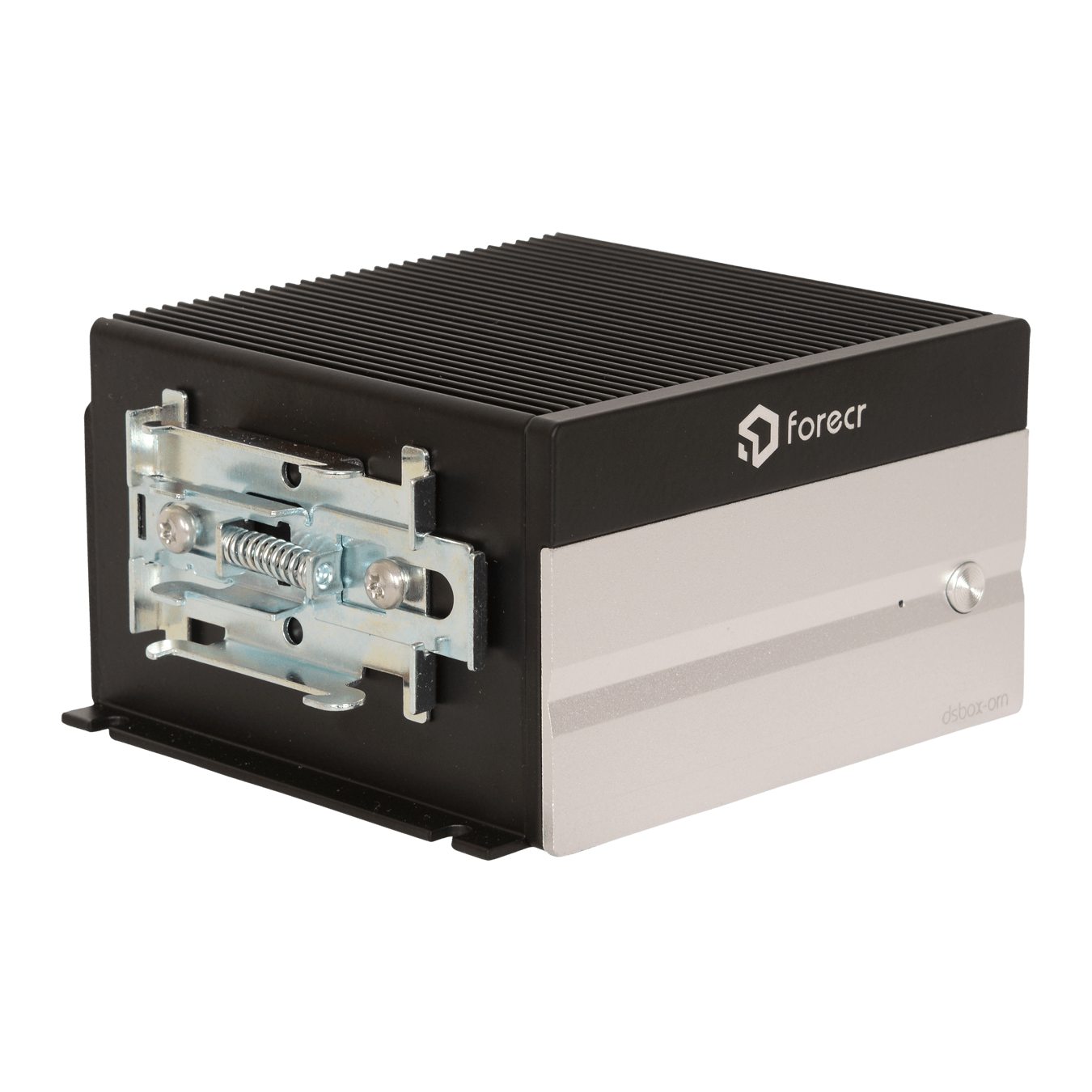

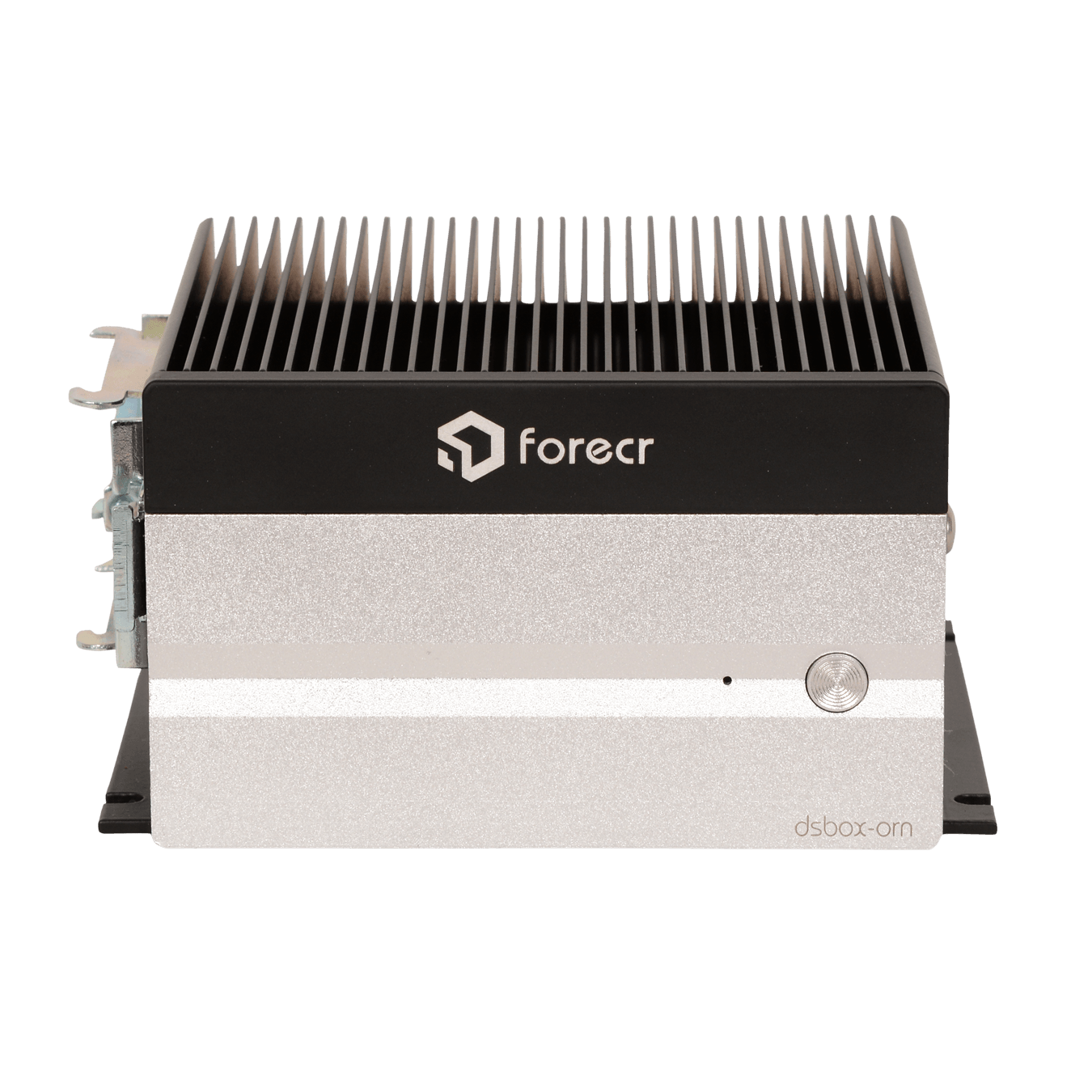

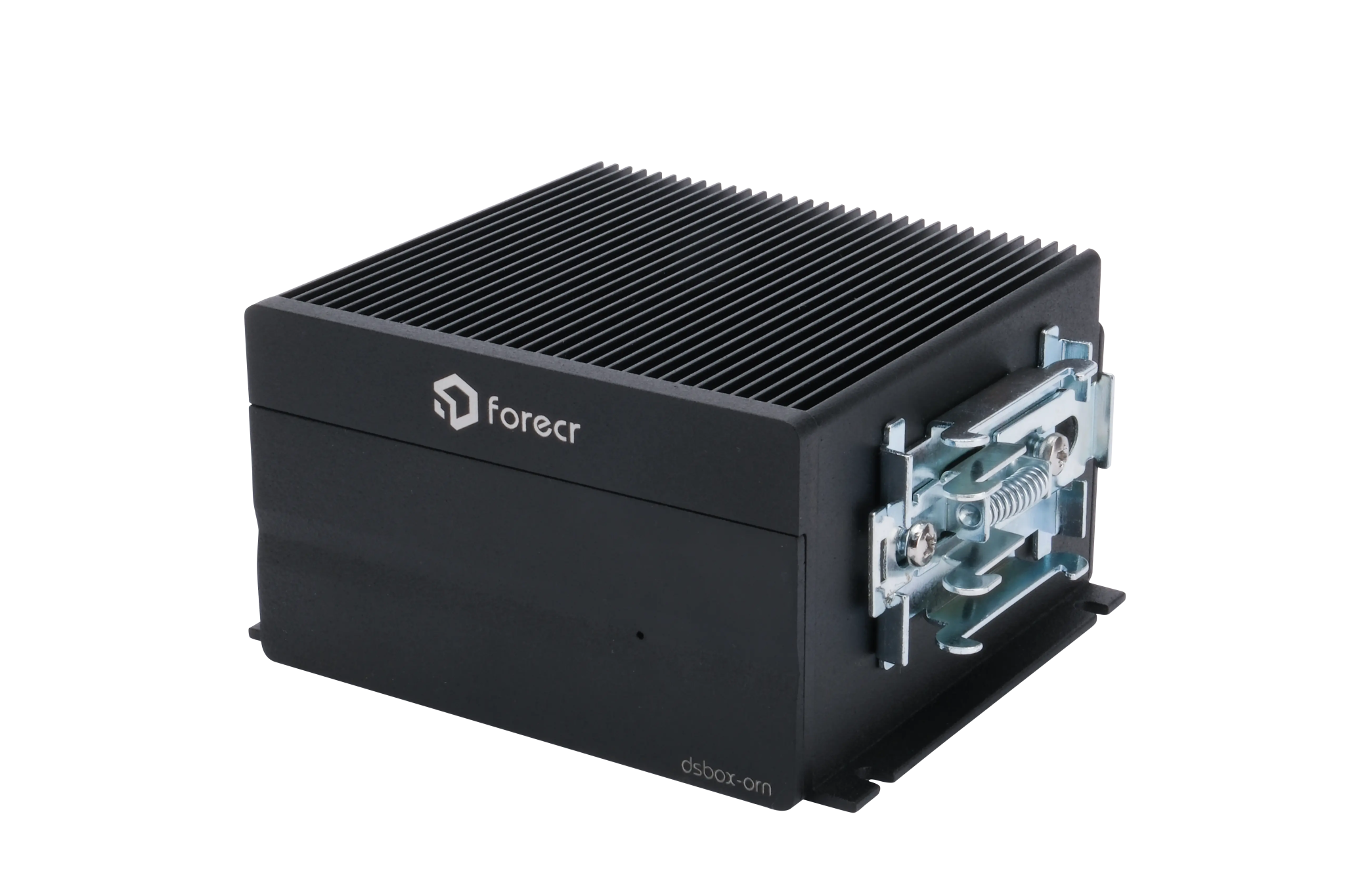

Designed to withstand even the harshest industrial environments, the DSBOX-ORN, Industrial Fanless BOX PC with NVIDIA Jetson Orin™ Nano, industrial box PC boasts exceptional computing power and reliability. One of its standout features is its fanless design, which not only ensures silent operation but also eliminates the risks of dust buildup or fan failure.
In addition to its fanless design, Jetson Orin™ Nano Box Pc is built to endure a wide range of temperatures, making it ideal for use in extreme industrial settings. Its operating temperature range of -25°C to +85°C ensures optimal performance in even the most demanding environments. The DSBOX-ORN is also designed with industrial applications in mind. Its compact form factor of 110 mm x 130 mm x 60 mm and weight of just 760 grams make it easy to integrate into existing systems. These carefully chosen dimensions make the DSBOX-ORN a lightweight yet robust industrial box PC suitable for a wide range of applications.

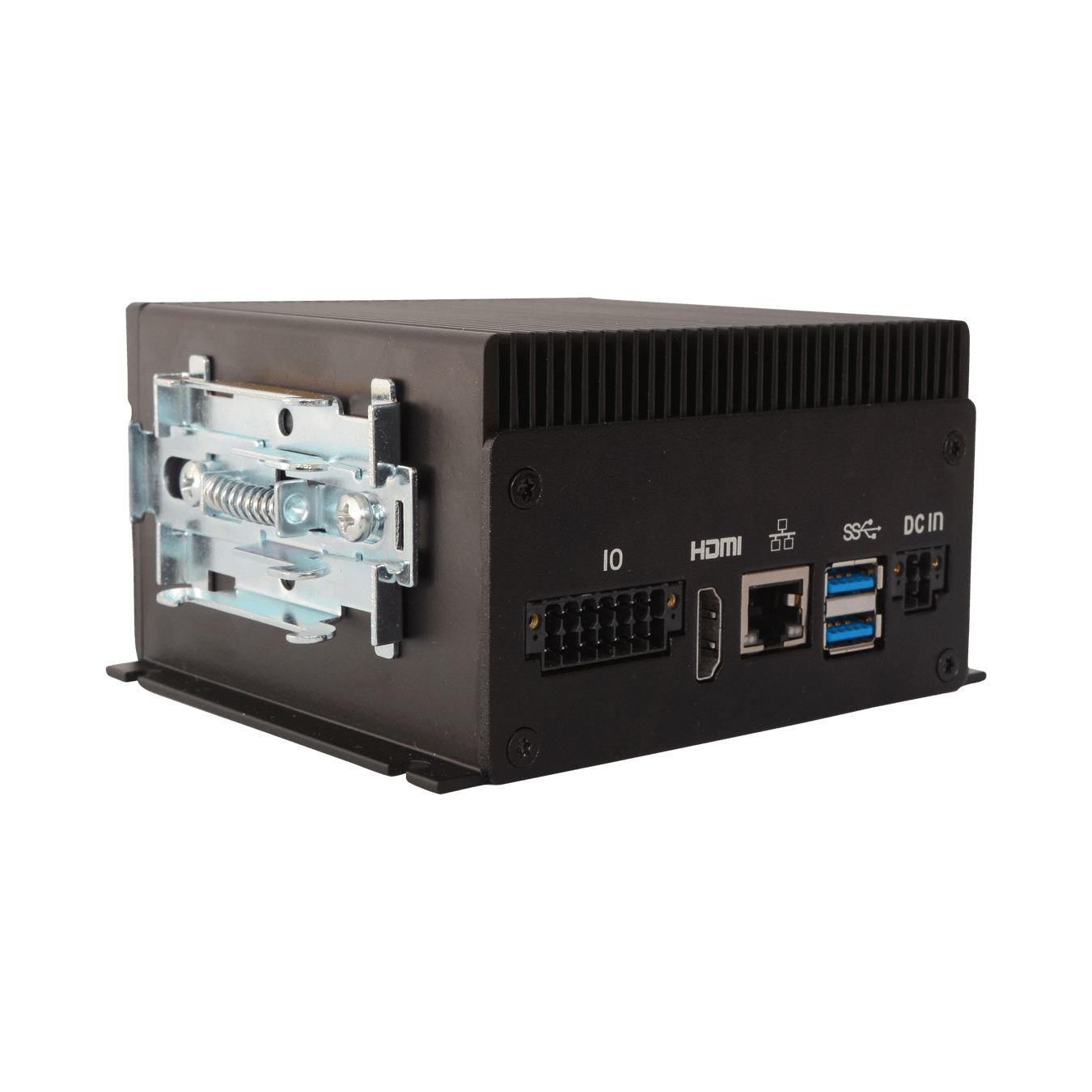

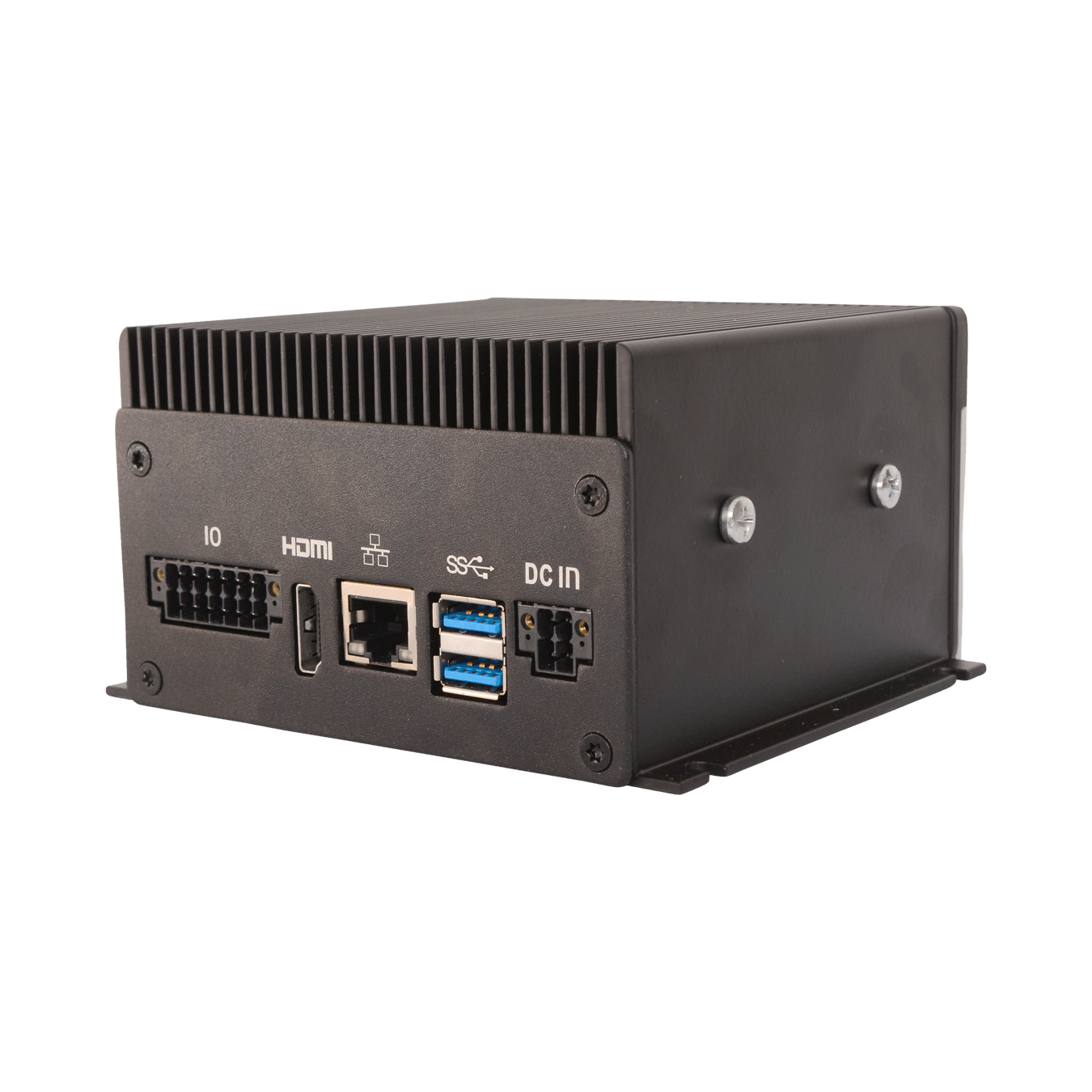

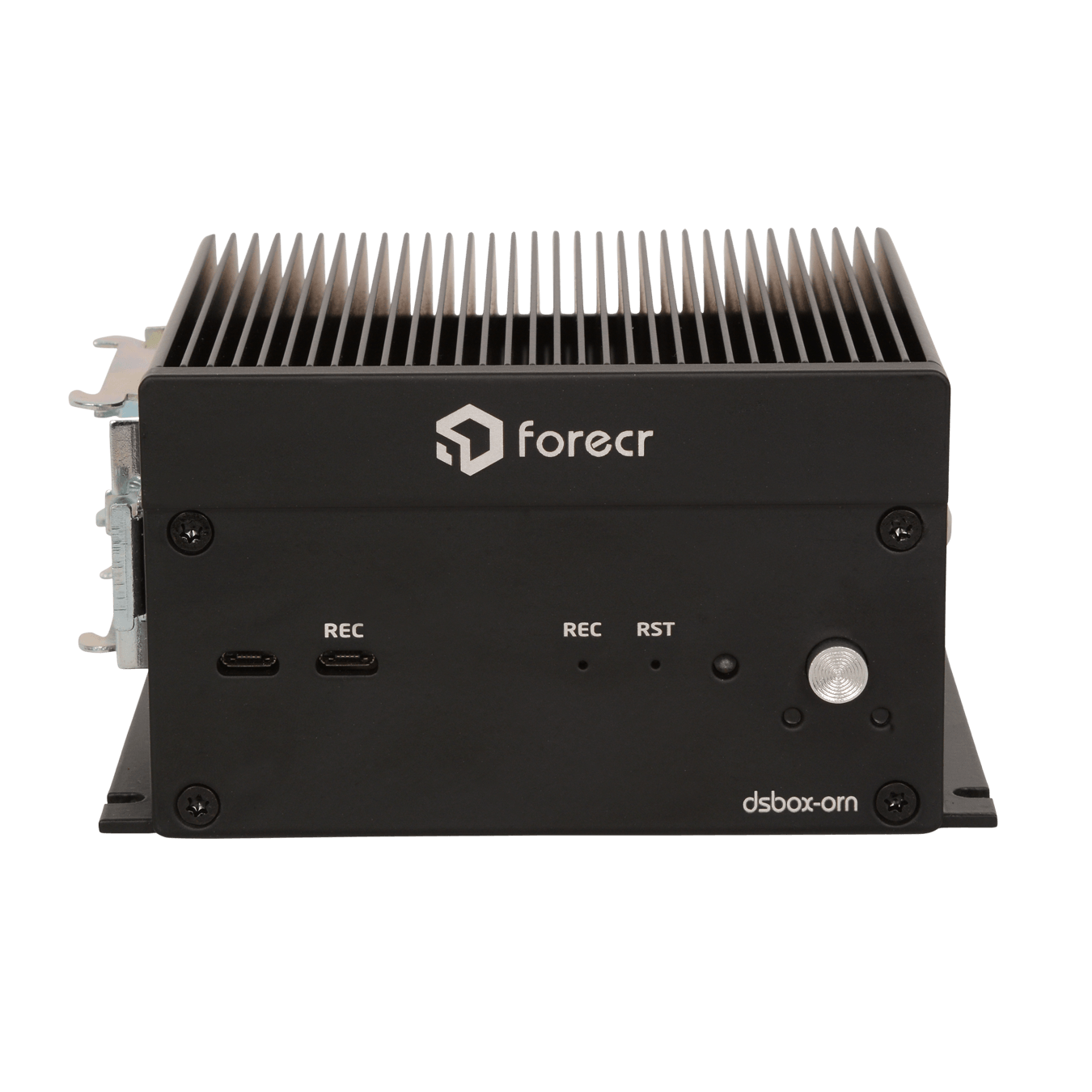

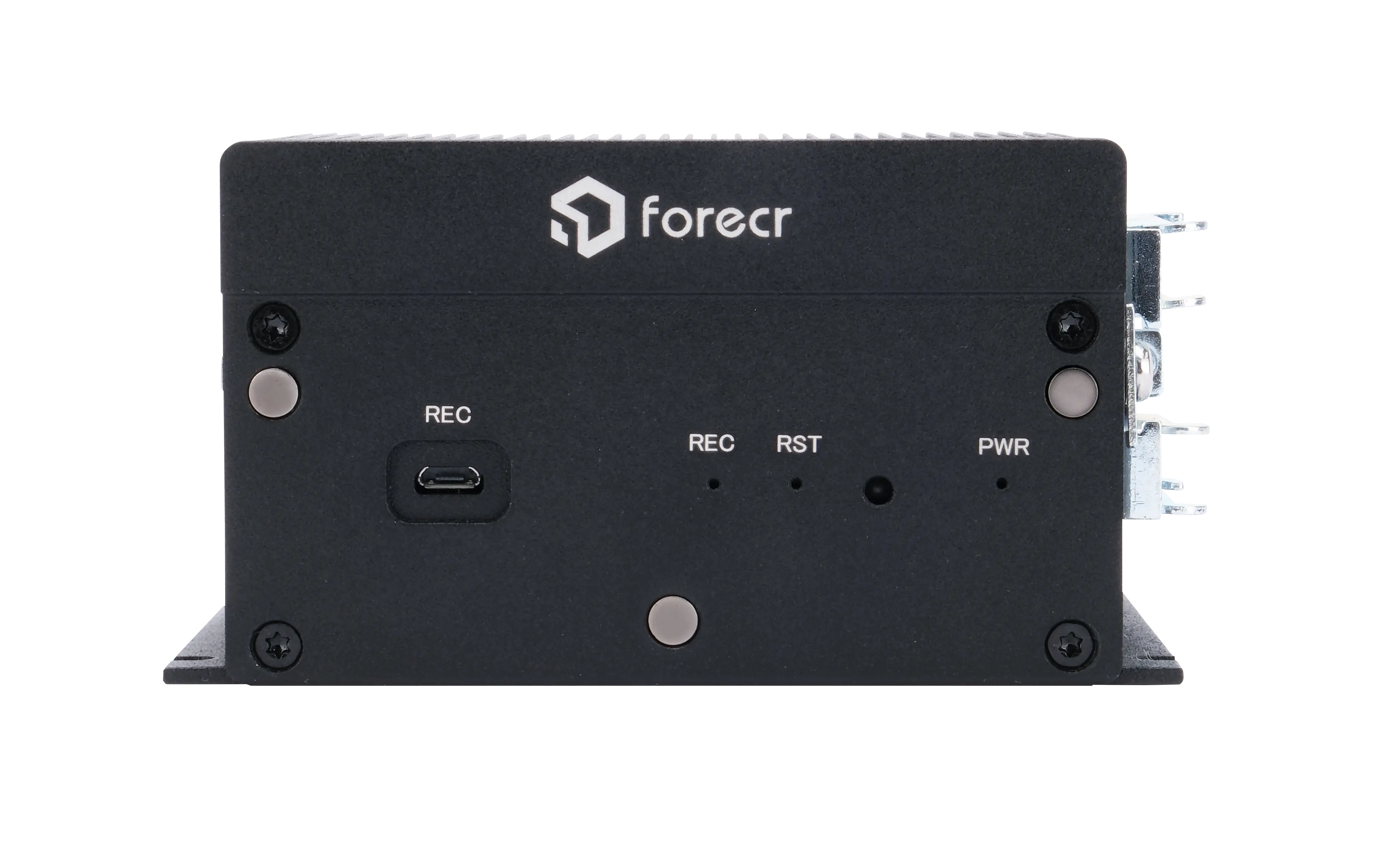

The DSBOX-ORN, Jetson Orin™ Nano industrial box PC is designed with a range of interfaces and connectivity options to ensure seamless integration into existing industrial systems. Its Gigabit Ethernet port offers high-speed wired connectivity, and its two USB 3.1 Type-A ports provide additional connectivity options. The PC also features a micro USB 2.0 port for recovery purposes.
For even greater flexibility, this Jetson Orin™ Nano, DSBOX-ORN offers a range of interface options, including a CAN Bus, RS232, and RS422 interface, as well as two digital inputs and two digital outputs. These interfaces enable you to connect to a wide range of industrial devices and equipment with ease. Wireless communication options are also available via extension sockets, including WiFi, LTE, and 5G connectivity. The PC supports 1x M.2 Key-E, 1x M.2 Key-B, and 1x SIM for extension sockets, allowing for increased flexibility in remote and mobile industrial applications.
The DSBOX-ORN also features advanced thermal management technology, ensuring reliable and efficient performance in even the harshest industrial environments. Its compact design and rugged, durable construction further enhance its ability to withstand tough conditions. Overall, with its comprehensive range of interfaces and connectivity options, the DSBOX-ORN is the perfect solution for demanding industrial applications.
The DSBOX-ORN industrial box PC boasts a reliable power design that ensures stable and consistent performance, even in the most demanding industrial settings. With a power supply range of 9-28 VDC, this industrial PC can operate reliably, even in environments with fluctuating power supplies or unreliable power grids.
The DSBOX-ORN also features a robust power management system that helps prevent power-related issues and safeguards the system from damage. This system includes over voltage protection, under voltage protection, and over current protection, as well as thermal protection to prevent overheating. The result is a powerful and dependable industrial box PC that can deliver exceptional computing performance, even in challenging industrial settings. With its reliable power design, the DSBOX-ORN offers the peace of mind and performance necessary to handle even the most demanding industrial applications.
Supported Modules | NVIDIA Jetson Orin Nano 4GB / 8GB |
Memory | 4 GB 64-bit LPDDR5 / 8 GB 128 bit LPDDR5 |
Graphics Interfaces | 1x HDMI 2.0 (max resolution 3840x2160) |

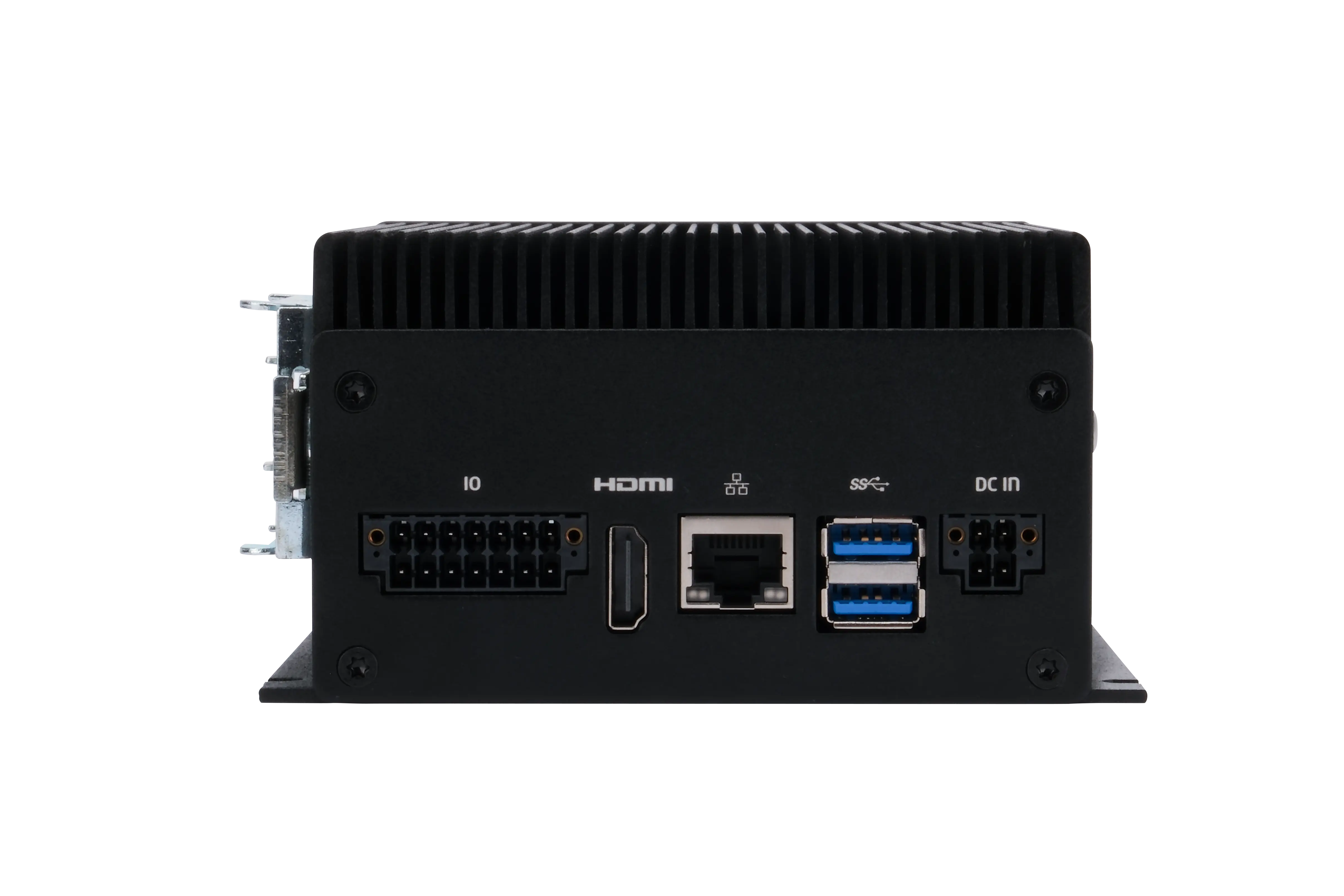

Interfaces | 1x Gigabit Ethernet 2x USB 3.1 Type-A 1x CAN Bus 1x RS232 & 1x RS422 1x microUSB 2.0 (Recovery) 2x Digital Input, 2x Digital Output |
Wireless Communication | WiFi/Bluetooth/LTE/5G Connectivity by extension sockets |
Power Supply | 9-28 VDC |
Extension Sockets | 1x M.2 Key-E, 1x M.2 Key-B, 1x SIM |
Mass Storage | 2x M.2 Key-M SSD Slot |
Ambient Conditions | -25°C ... +85°C |
Form Factor / Dimensions | 110 mm x 130 mm x 60 mm, 760 gr |
Operating Systems | Ubuntu Linux 20.04 |
JetPack Support | JetPack 5.1.1 |
