Supercomputer Level Performance in Industrial PC Form Factor


DSBOX-ORN-LAN with dual LAN connectivity is suitable for industrial applications. It is based on the NVIDIA Jetson Orin Nano™ system-on-module (SoM), which features a 64-bit Arm Cortex-A76/A78 CPU and 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores. This gives it the ability to perform AI tasks like image recognition, natural language processing, and object detection.

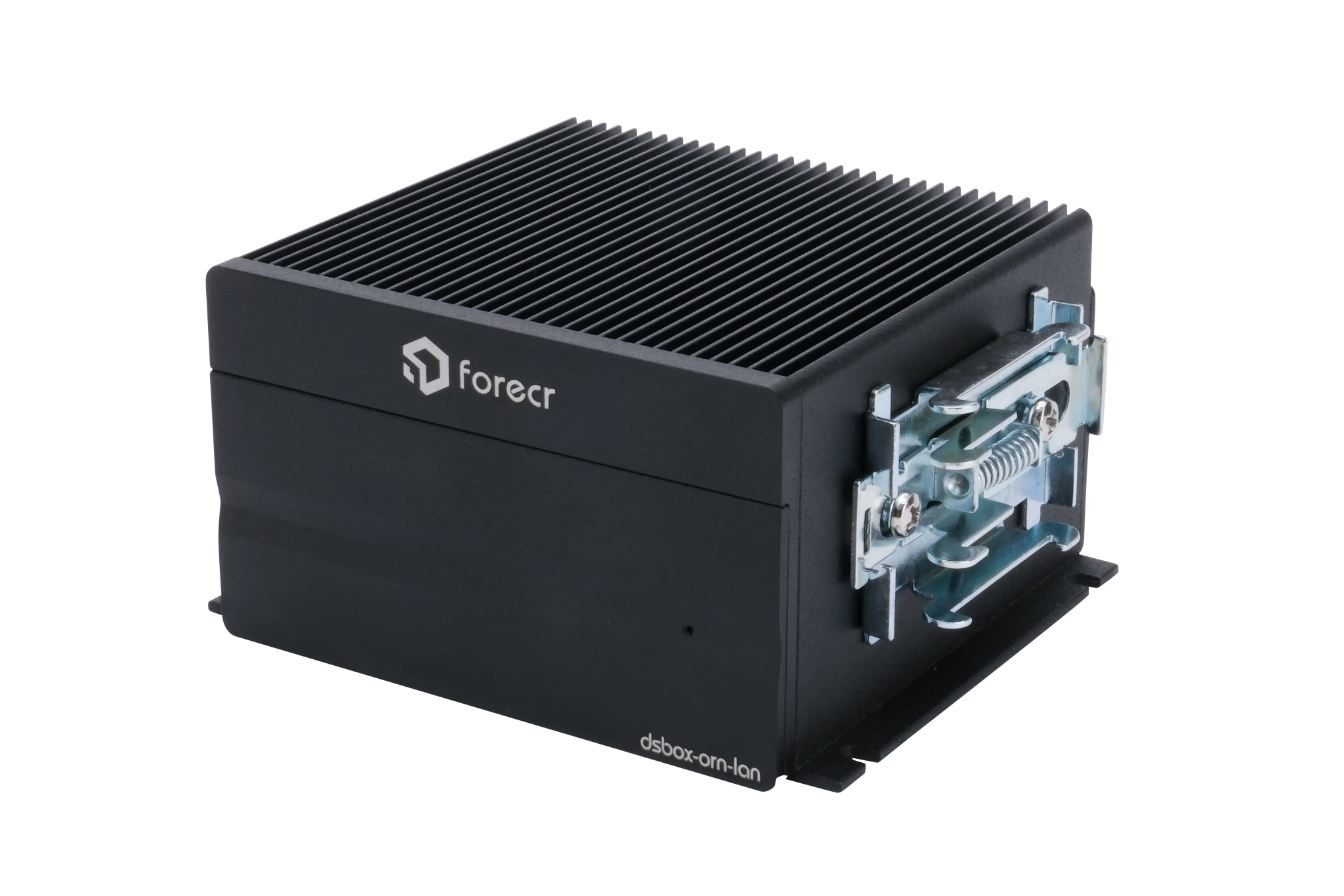

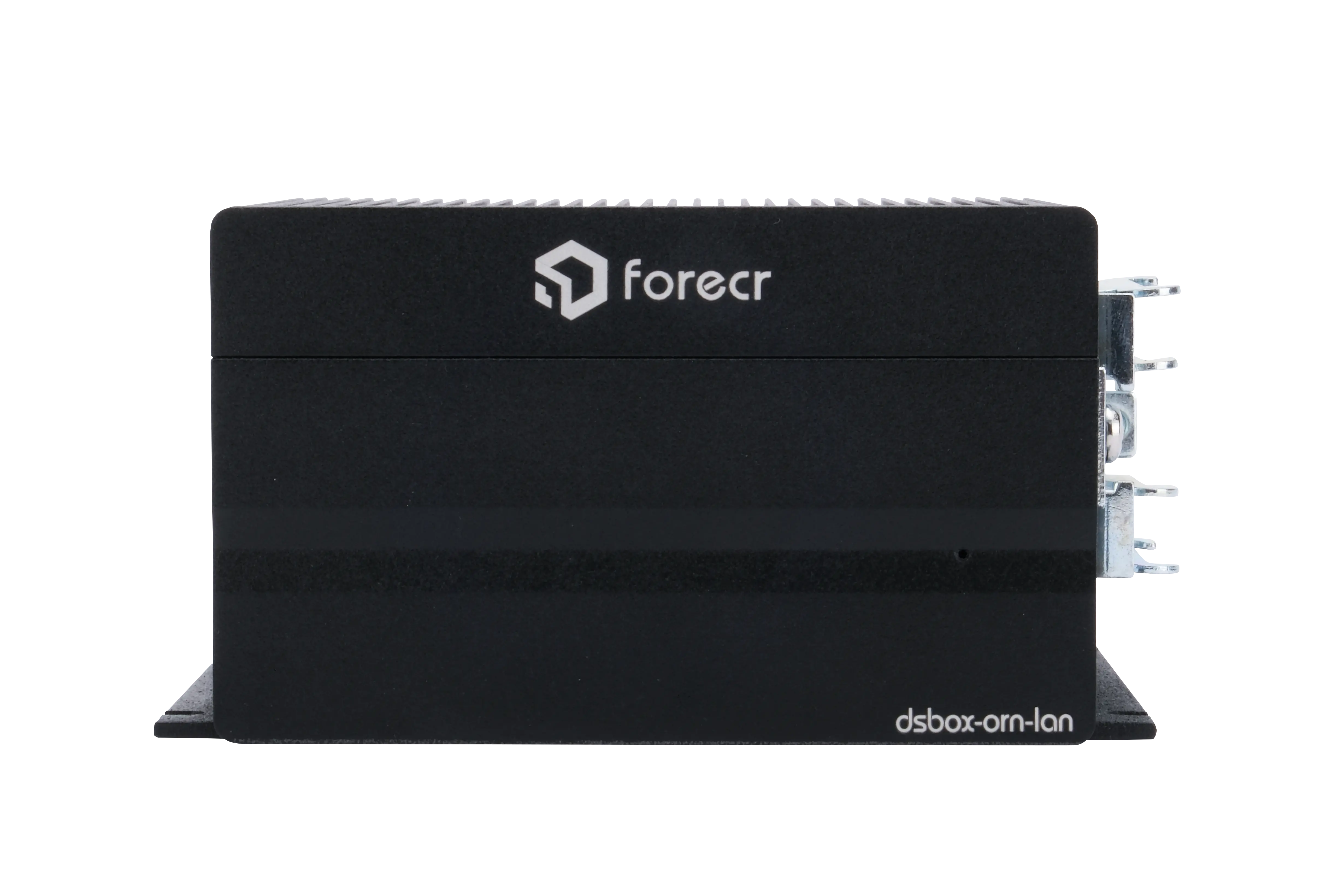

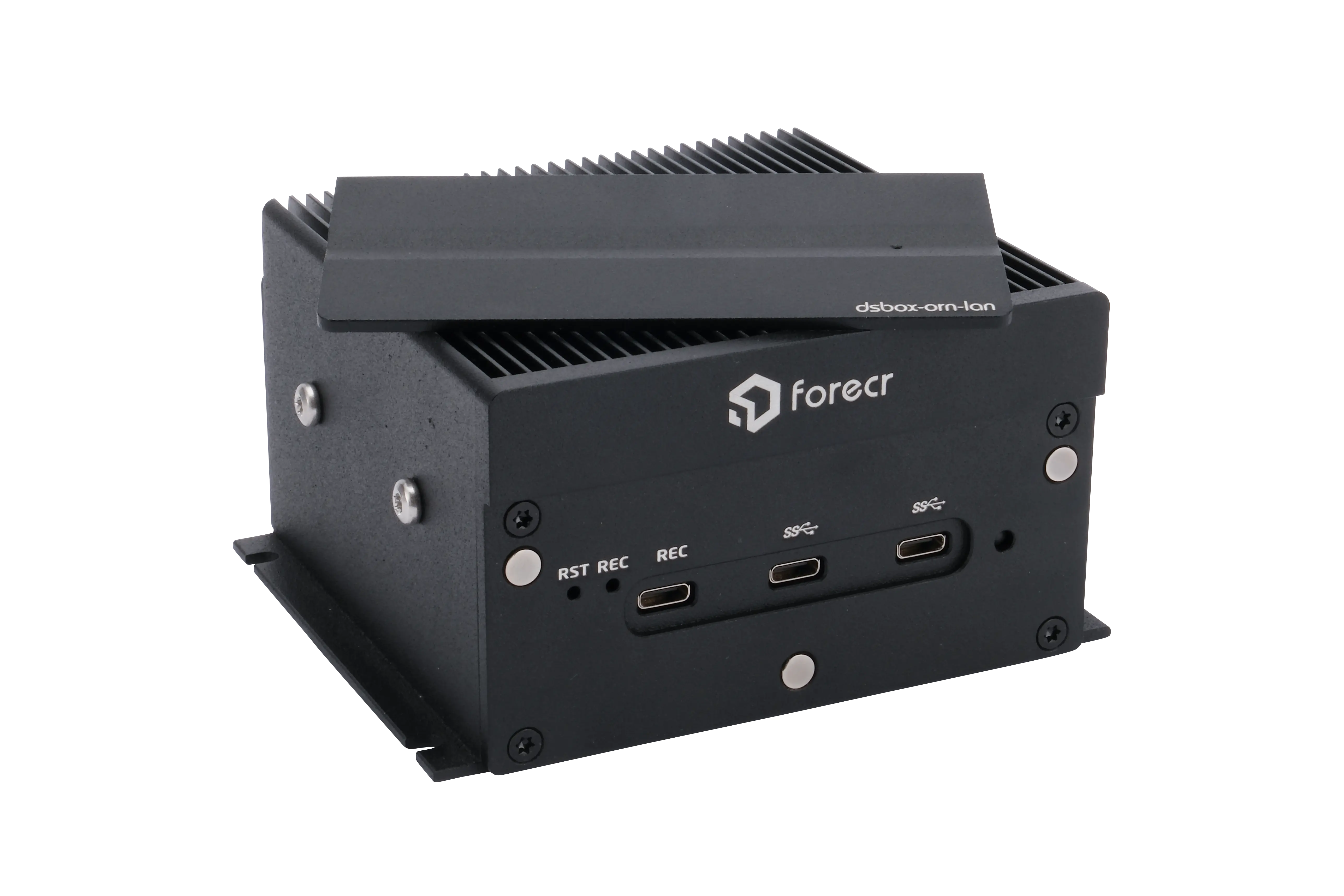

DSBOX-ORN-LAN, Jetson Orin™ industrial fanless pc, is the ultimate edge AI deployment system for multiple stream video processing applications. This industrial computing device is built for performance and designed to deliver unparalleled processing power. With the ability to decode up to 18 video streams in 1080p at 30 FPS, the DSBOX-ORN-LAN can handle even the most demanding video processing tasks. The Jetson Orin™ Nano processor delivers an incredible 40 TOPS AI performance, thanks to its 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores.


With the help of NVIDIA's DeepStream SDK, you can achieve maximum performance on simultaneous video processing applications. You can achieve up to 260 FPS for Resnet-34 based people detection and 32 FPS for Resnet-34 based pose estimation algorithms with full utilization of GPU together with two DLA engines.


Introducing our latest embedded system that boasts an impressive range of interfaces and connectivity options. This Jetson Orin™ industrial fanless pc with dual lan system is the perfect platform for industrial applications that demand high performance and reliability, such as robotics, intelligent transportation systems, and video analytics.

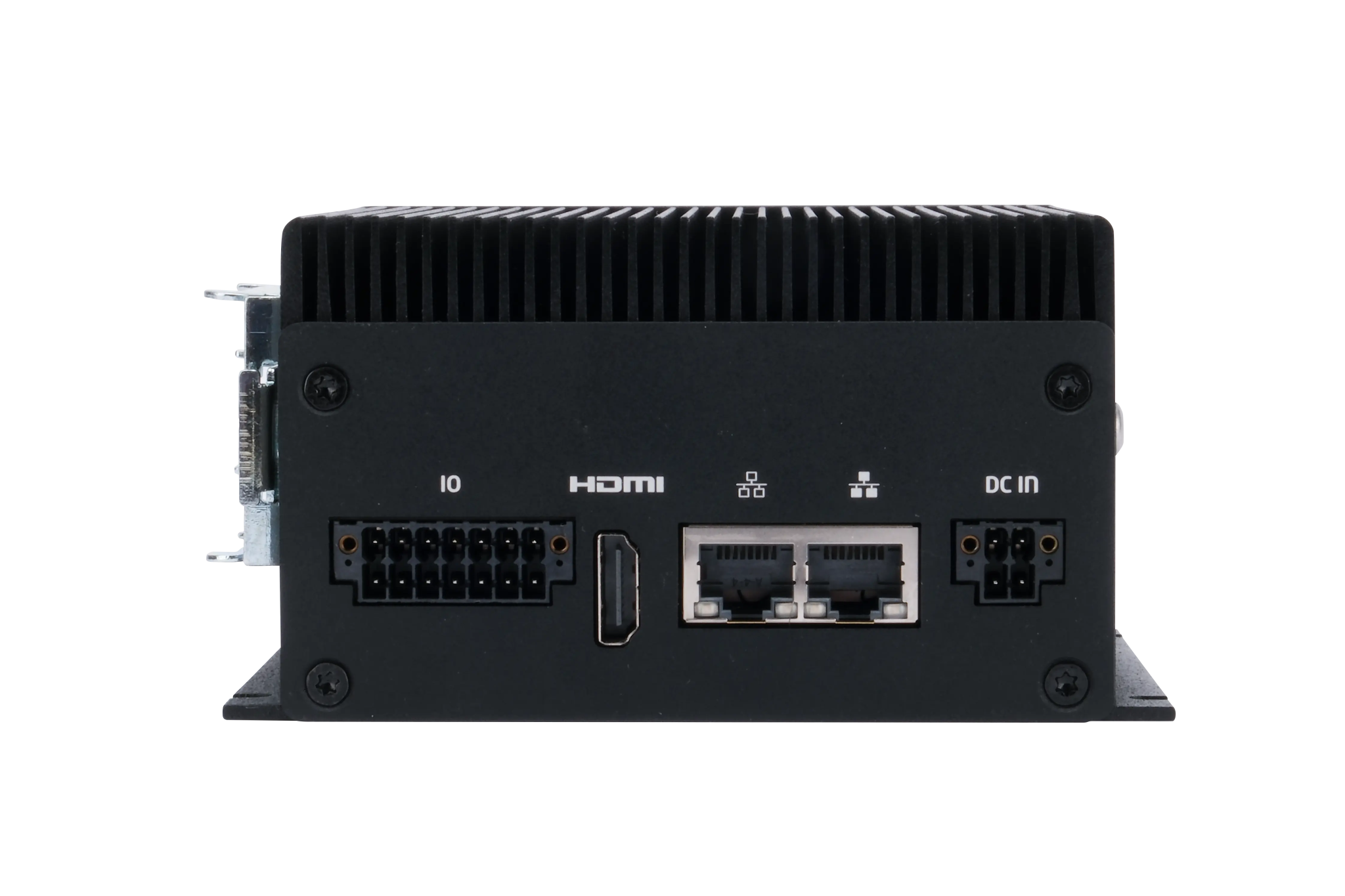

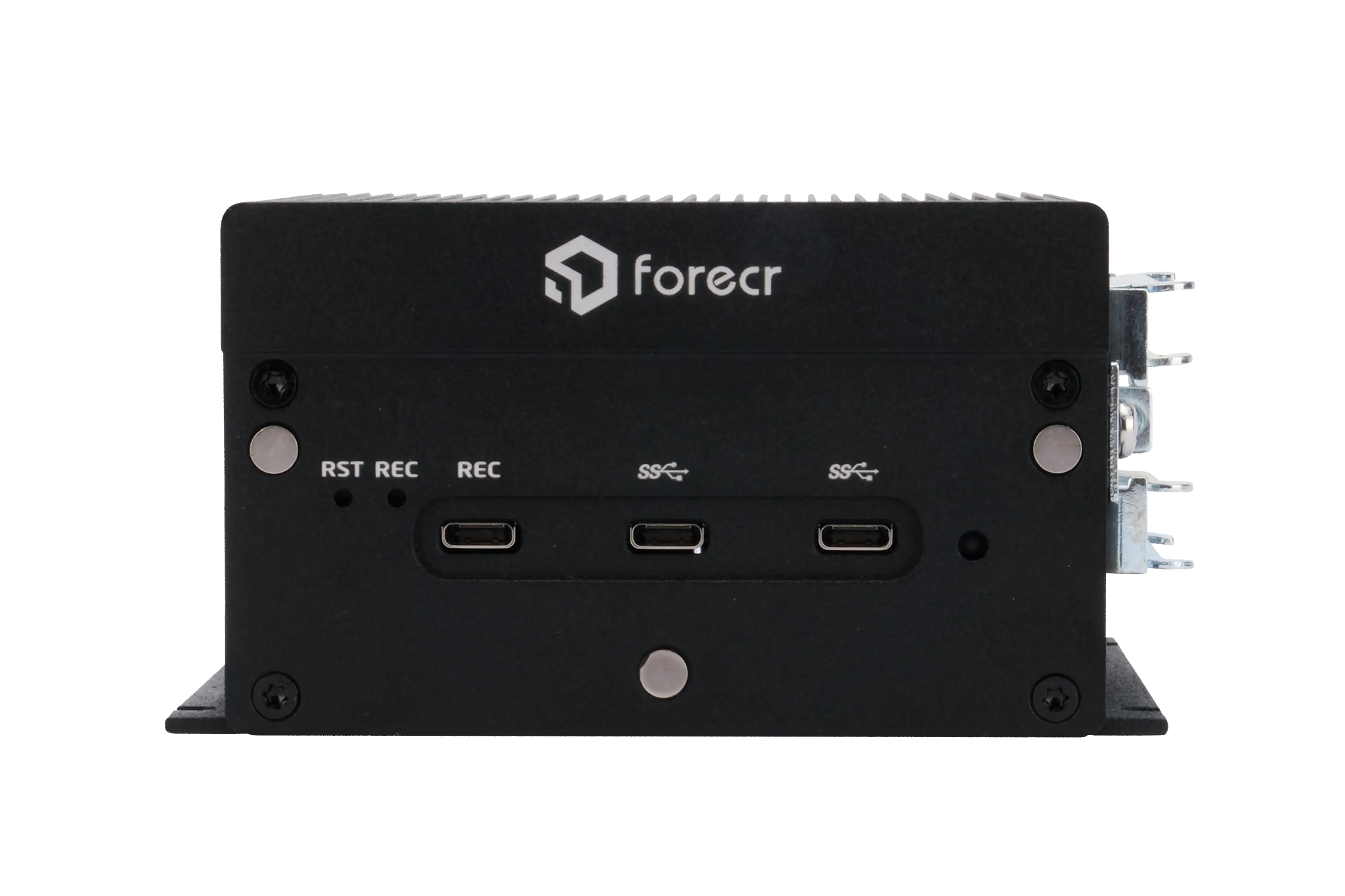

With multiple Gigabit Ethernet ports, USB 3.1 Type-C ports, and a CAN bus interface, this system ensures high-speed data transfer and reliable connectivity between devices. It also features RS232 and RS422 ports, digital input and output ports. In addition to these interfaces, this system also supports WiFi/Bluetooth connectivity via extension sockets and has an M.2 Key-E slot and two M.2 Key-M SSD slots, providing a variety of expansion options. The HDMI 2.0 port with a maximum resolution of 3840x2160 allows for easy display connectivity.

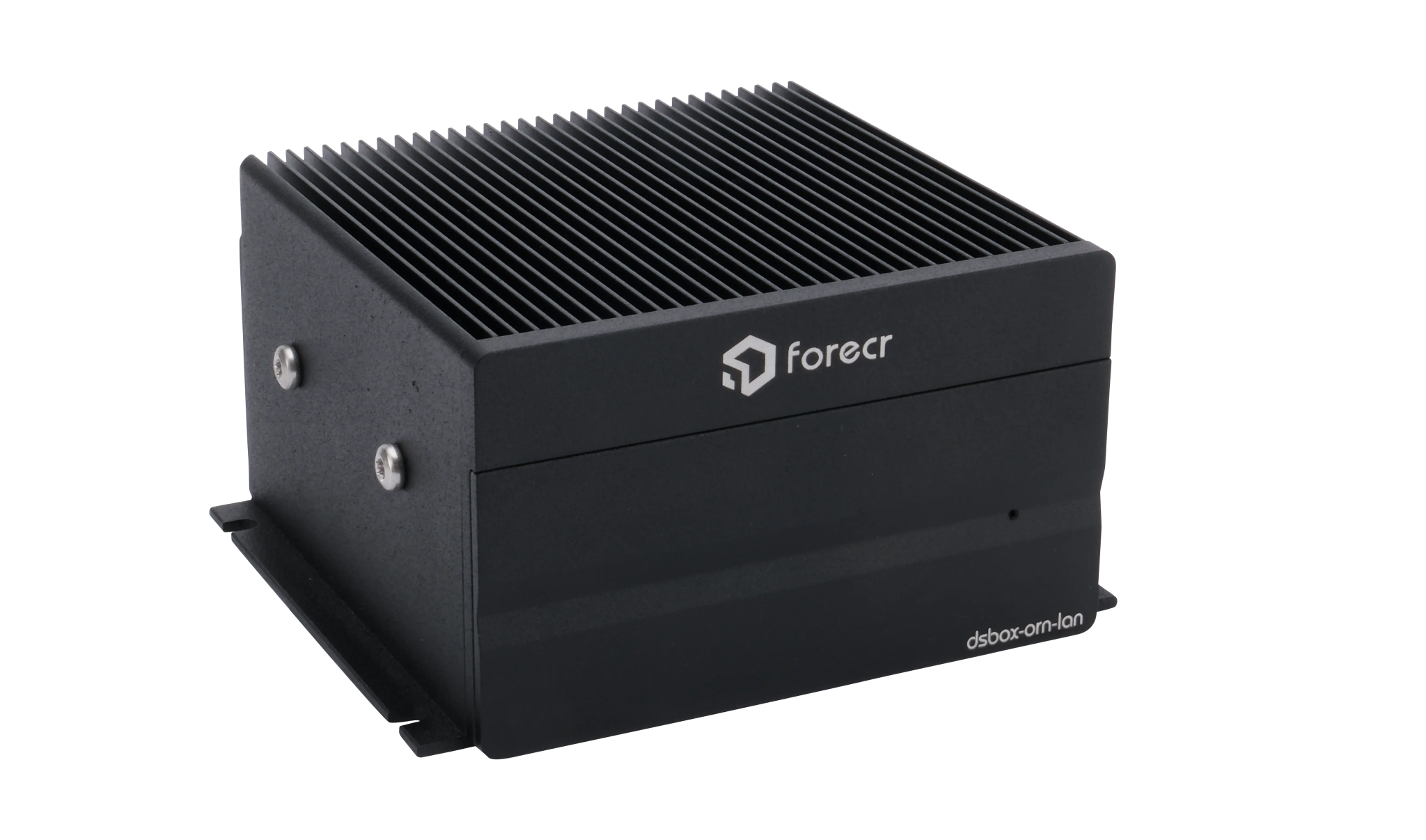

Fanless Mechanical Design with Proven Thermal Performance
Rich Industrial Connectivity with Wide Interface Options such as RS232, RS485, CAN, IO


DSBOX-ORN-LAN's ambient conditions and form factor make it an ideal choice for industrial applications that require high performance and ruggedness. Its compact size and wide temperature range allow for easy deployment in a variety of environments, while its robust design ensures reliable operation even in the toughest conditions. Choose the DSBOX-ORN-LAN for your next industrial project and experience the power and reliability of an industrial computing device designed for the demands of the modern industrial world.


DSBOX-ORN-LAN is capable of operating in a wide range of temperatures, from -25°C to +85°C, making it suitable for deployment in harsh environments where temperature fluctuations are common. The device's design is optimized for industrial environments, with an aluminum chassis that provides excellent heat dissipation and protection against dust, shock, and vibration. This ensures reliable operation, even in the face of the toughest industrial conditions.


Our embedded system, Jetson Orin™ industrial fanless pc, is built with a robust power design, ensuring reliable and stable performance even in the most challenging industrial environments. With a wide input voltage range of 9-28 VDC, this system is designed to operate in a variety of power supply conditions.


The power design of this embedded system is optimized for low power consumption, making it an energy-efficient solution for industrial applications. It features an intelligent power management system that automatically adjusts power usage based on system requirements, maximizing power efficiency, and reducing energy costs. Our embedded system also has a built-in backup power system that provides uninterrupted operation in the event of a power outage. This ensures that critical data is saved and the system remains operational in case of a power failure.

Maximum Bus Throughput on High Speed Interfaces like USB3, M.2, PCIE, Gigabit Ethernet

Technical Specifications

Supported Modules

NVIDIA Jetson Orin Nano 4GB / 8GB


4 GB 64-bit LPDDR5 / 8 GB 128 bit LPDDR5

Graphics Interfaces 1x HDMI 2.0 (max resolution 3840x2160)

2x Gigabit Ethernet

2x USB 3.1 Type-A

1x CAN Bus

1x RS232 & 1x RS422

1x microUSB 2.0 (Recovery)

2x Digital Input, 2x Digital Output

Wireless Communication WiFi/Bluetooth Connectivity by extension sockets
Power Supply9-28 VDC
Extension Sockets

1x M.2 Key-E, 1x M.2 Key-B, 1x SIM

Mass Storage

2x M.2 Key-M SSD Slot

Ambient Conditions-25°C ... +85°C
Form Factor / Dimensions110 mm x 130 mm x 60 mm, 760 gr
Operating SystemsUbuntu Linux 20.04
JetPack SupportJetPack 5.1.1
