RAIBOX-ORNX Getting Started

Jetson Orin NX

19 July 2023

1- Overview of RAIBOX-ORNX

2- Power Socket & Polarization

3- Jetpack Installation and Interface Guide



RAIBOX-ORNX is industrial carrier board for NVIDIA Jetson Orin NX SoM modules. We will explain how to get started with RAIBOX-ORNX on this blogpost.

Overview of RAIBOX-ORNX

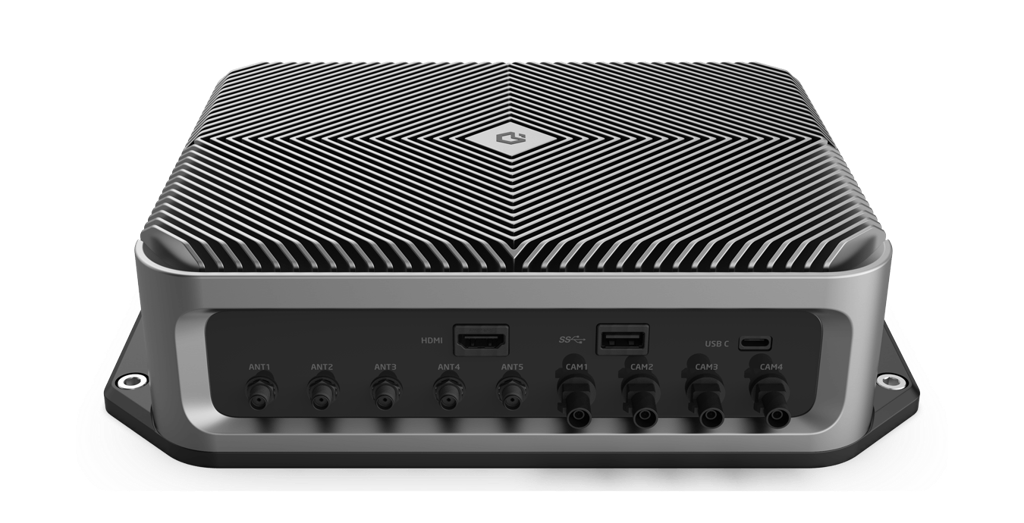

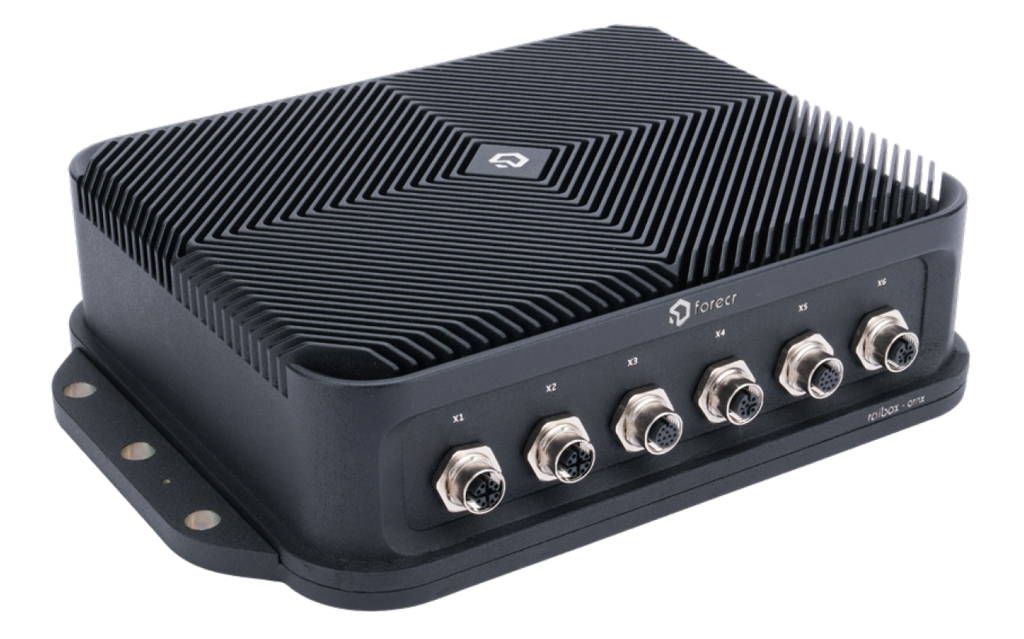

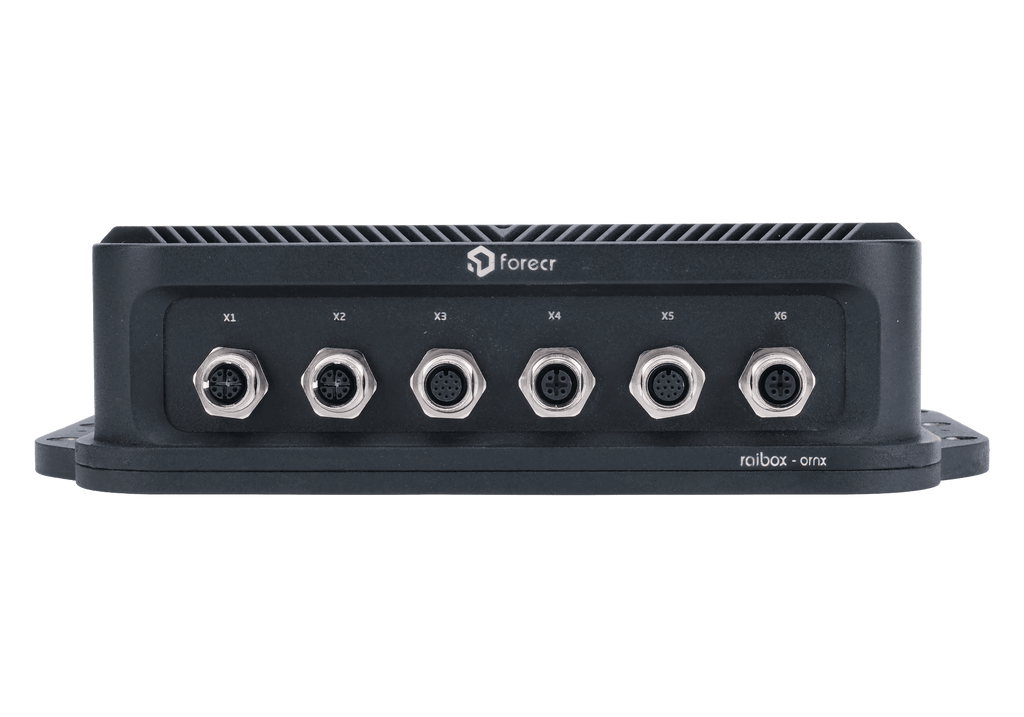

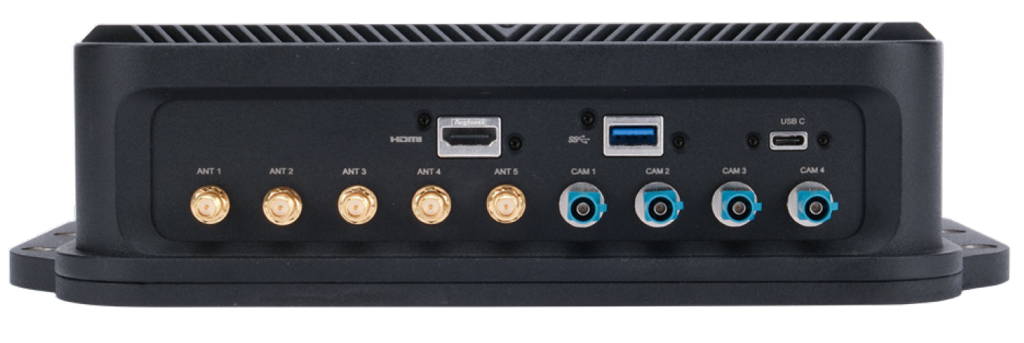

You can see the front view of RAIBOX-ORNX.

Before you plug in DC power cable, you should plug in Ethernet cable, keyboard and mouse USB cables to USB ports, HDMI cable to HDMI port socket for monitoring the system.

Power Socket & Polarization

After connections are done, you can plug in the DC power cable to “X6” socket. The system runs as soon as you plug the DC power cable. The DC Power Source should be in the range of 14-110 Volt DC. You can find the DC Power socket when you open the package of the product.

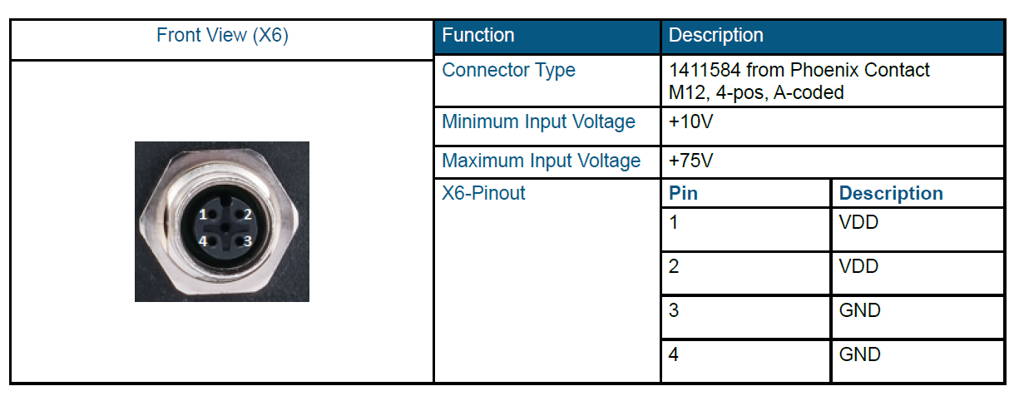

You can see the power connector pinout below. First and second pins are positive polarization, third and fourth pins are negative polarization.

You can have DC Power Adapter, HDMI Cable and Ethernet Cable as optional.

JetPack Installation & Interface Guide

After you energize the board, the system runs. The industrial box pc has preinstalled operating system (Ubuntu 20.04). When the Ubuntu Desktop show up, you will need to user name and password. Both the user name and the password are “nvidia”.

If you would like to view the definition of each connector, please click here.

If you would like to upgrade or downgrade the software version, please click here.

If you would like to use, Industrial Input Output pins, please click here.

If you would like to use serial communication interfaces (RS232,RS422 and RS485), please click here.

Thank you for reading our blog post.
