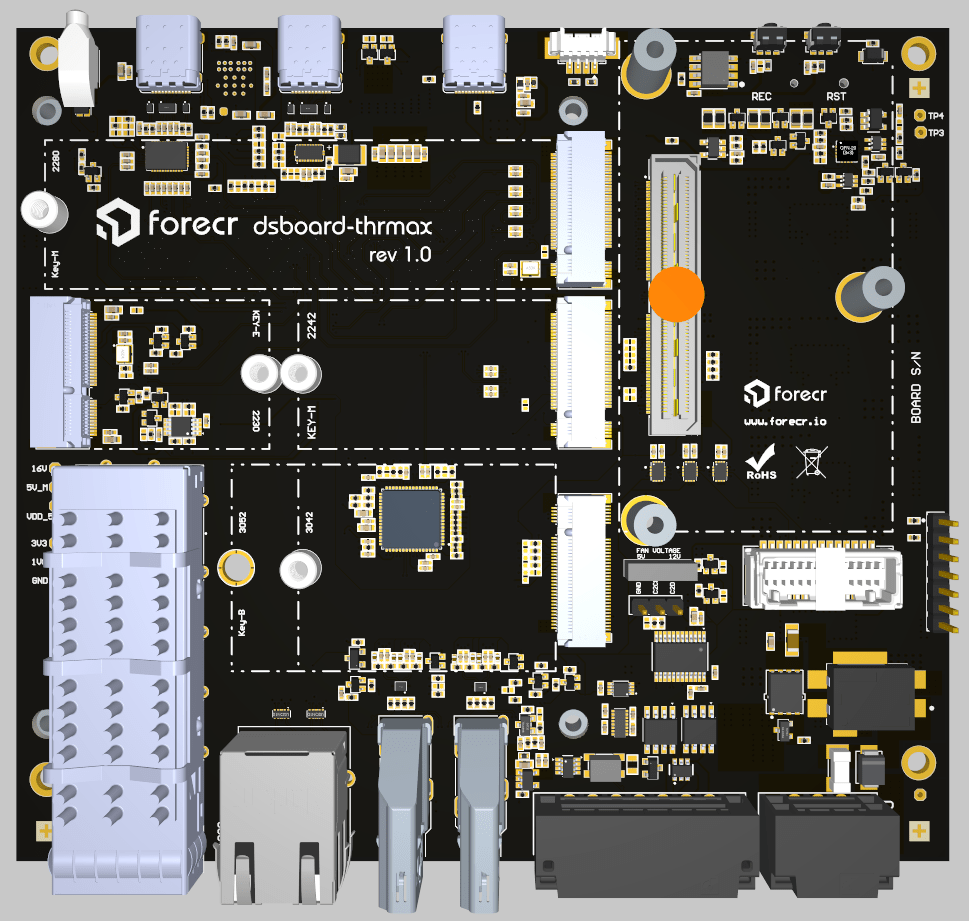

NVIDIA® Jetson Thor™ Module Carrier Board - DSBOARD-THRMAX
The DSBOARD-THRMAX is a compact. high performance carrier board designed for the NVIDIA Jetson THOR module. Accelerate the future of physical AI and robotics with NVIDIA Jetson Thor™ series modules that deliver up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory—all in a compact form factor.
LEAD TIME: 4-5 WEEKS
Choose options
Built to support the next-generation NVIDIA Jetson THOR MODULE
Introducing the DSBOARD-THRMAX, FORECR’s most advanced carrier board purpose-built for the groundbreaking NVIDIA Jetson THOR platform. With a powerful 128GB LPDDR5X memory interface, high-speed PCIe Gen5 storage, and a wide array of I/O options including dual HDMI 2.1, dual DP1.4a, USB 3.2, QSFP+, and robust serial connectivity, this compact 140x125mm board is engineered to support the most demanding edge AI applications.
Powered by NVIDIA Jetson T5000
Built to support the next-generation NVIDIA Jetson THOR, enabling unmatched AI inference and real-time processing capabilities for edge computing applications.
128GB LPDDR5X High-Speed Memory
Features ultra-fast 128GB 256-bit LPDDR5X memory to handle large AI models, dense sensor data, and multi-stream processing without performance bottlenecks.
COMPACT YET POWERFUL
Compact yet powerful, with a footprint of just 140x125mm — ideal for embedded systems where space is at a premium but performance is non-negotiable.
Versatile Video Outputs
Supports 2x HDMI 2.1 and 2x DP1.4a interfaces for multi-display, high-resolution output, tailored for vision-based applications and real-time visualization.
Rich I/O for System Integration
Includes USB 3.2, QSFP+, Gigabit Ethernet, CAN Bus, RS-232/422/485, and multiple digital I/Os, offering comprehensive connectivity for industrial and autonomous systems.
real-time thermal monitoring
Enables real-time thermal monitoring for system protection, predictive maintenance, and optimized performance in industrial and mission-critical environments.
NVIDIA® Jetson Thor™ Module Carrier Board - DSBOARD-THRMAX Use Cases
ROBOTICS
The DSBOARD-THRMAX is exceptionally well-suited for robotics applications due to its computational power, sensor integration, and real-time communication interfaces.
AUTONOMOUS SYSTEMS
DSBOARD-THRMAX is an excellent foundation for autonomous systems, offering the processing power, real-time interfaces, and rugged design needed for intelligent machines that operate independently in complex environments.
SMART CITY
Enabling smart city applications that require high-performance, real-time edge AI capabilities. Its compact form factor, rich connectivity, and NVIDIA Jetson AGX THOR processing power make it suitable for a wide range of infrastructure-integrated systems.
NVIDIA® Jetson Thor™ Module Carrier Board - DSBOARD-THRMAX Technical Specifications
| Supported Modules |
NVIDIA Jetson T5000 |
| Memory |
128 GB 256-bit LPDDR5X |
| Graphics Interfaces |
2x HDMI 2.1, 2x DP1.4a |
| Interfaces |
1x Gigabit Ethernet (RJ45) 2x USB3.2 Type-C (with DP support) 1x Debug USB-C 1x QSFP28 (4x 25GbE) 1x RS-232/422/485 1x CAN Bus 2x Digital Input (12-24V compatible) 3x Digital Output (12-24V compatible) EEPROM, IMU, Temperature Sensor RTC (Coin Holder)
|
| Wireless Communication |
WiFi/Bluetooth/LTE/5G Connectivity by extension sockets |
| Power Supply |
18-32 VDC |
| Extension Sockets |
1x M.2 Key-B 3042/3052 (USB3.0, USB2.0) 1x M.2 Key-E 2230 (PCIe x1, USB2.0) 1x Camera Expansion Connector (6x 2-Lane or 4x 4-Lane) 1x Expansion Header (I2C, I2S, SPI, UART, GPIO) FAN Connector (12V and 5V support)
|
| Mass Storage |
1x M.2 Key-M 2280 (PCIe Gen5 x4) 1x M.2 Key-M 2242 (PCIe Gen5 x2)
|
| Ambient Conditions |
-25°C ... +85°C |
| Form Factor / Dimensions |
140 mm x 125 mm |
| Operating Systems |
Ubuntu Linux 24.04 |
| JetPack Support |
JetPack 7.0 |
