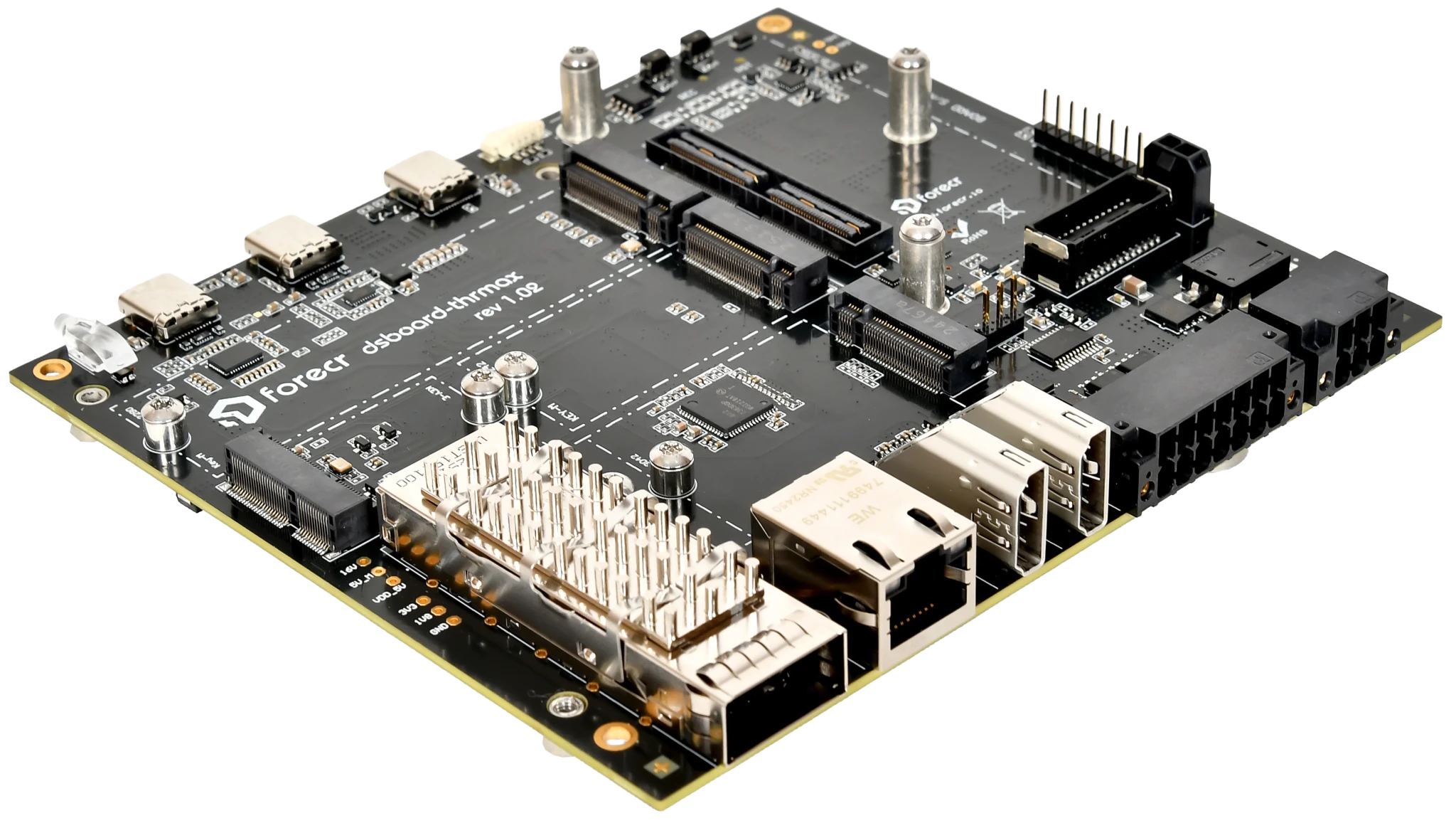

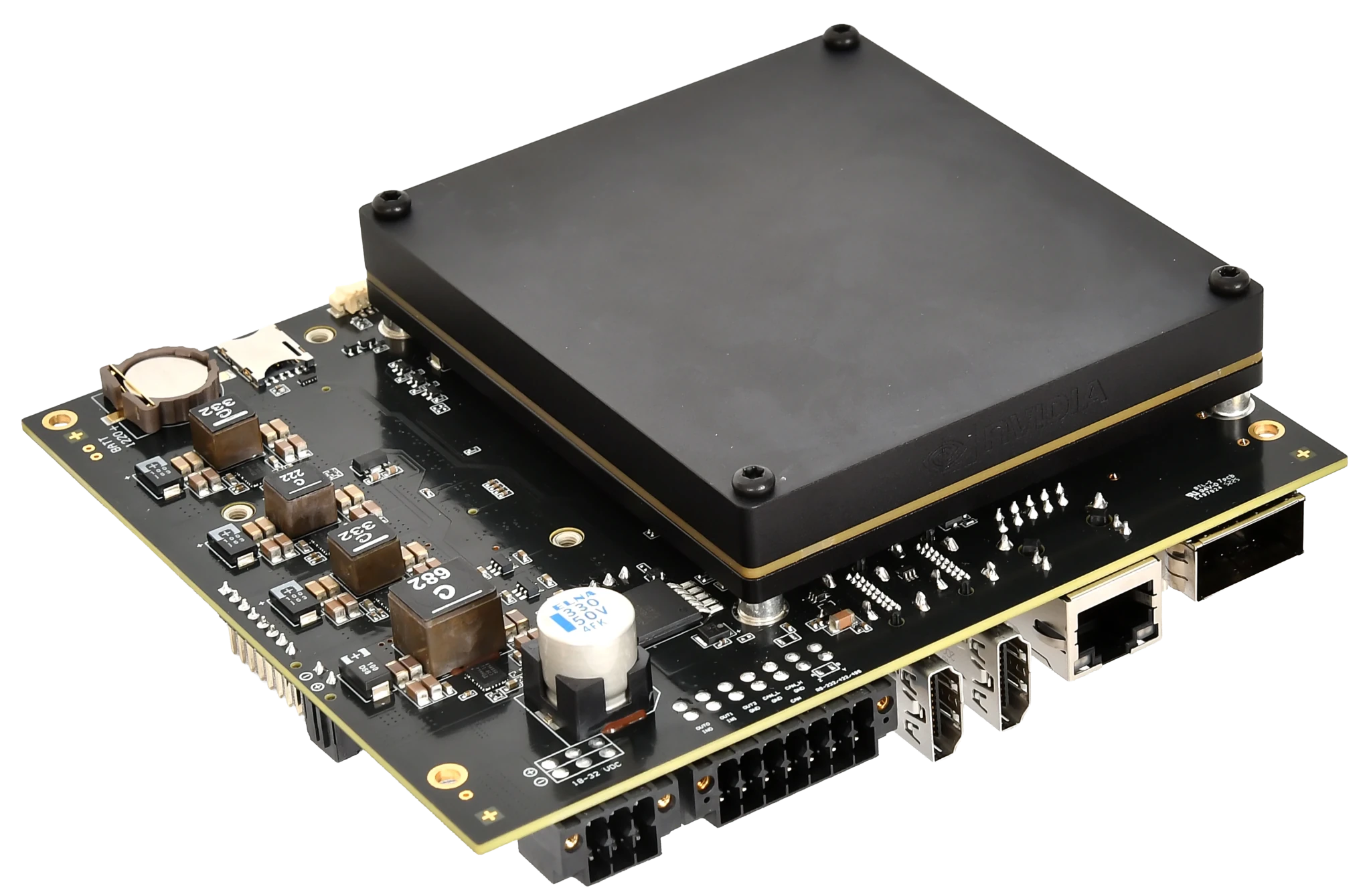

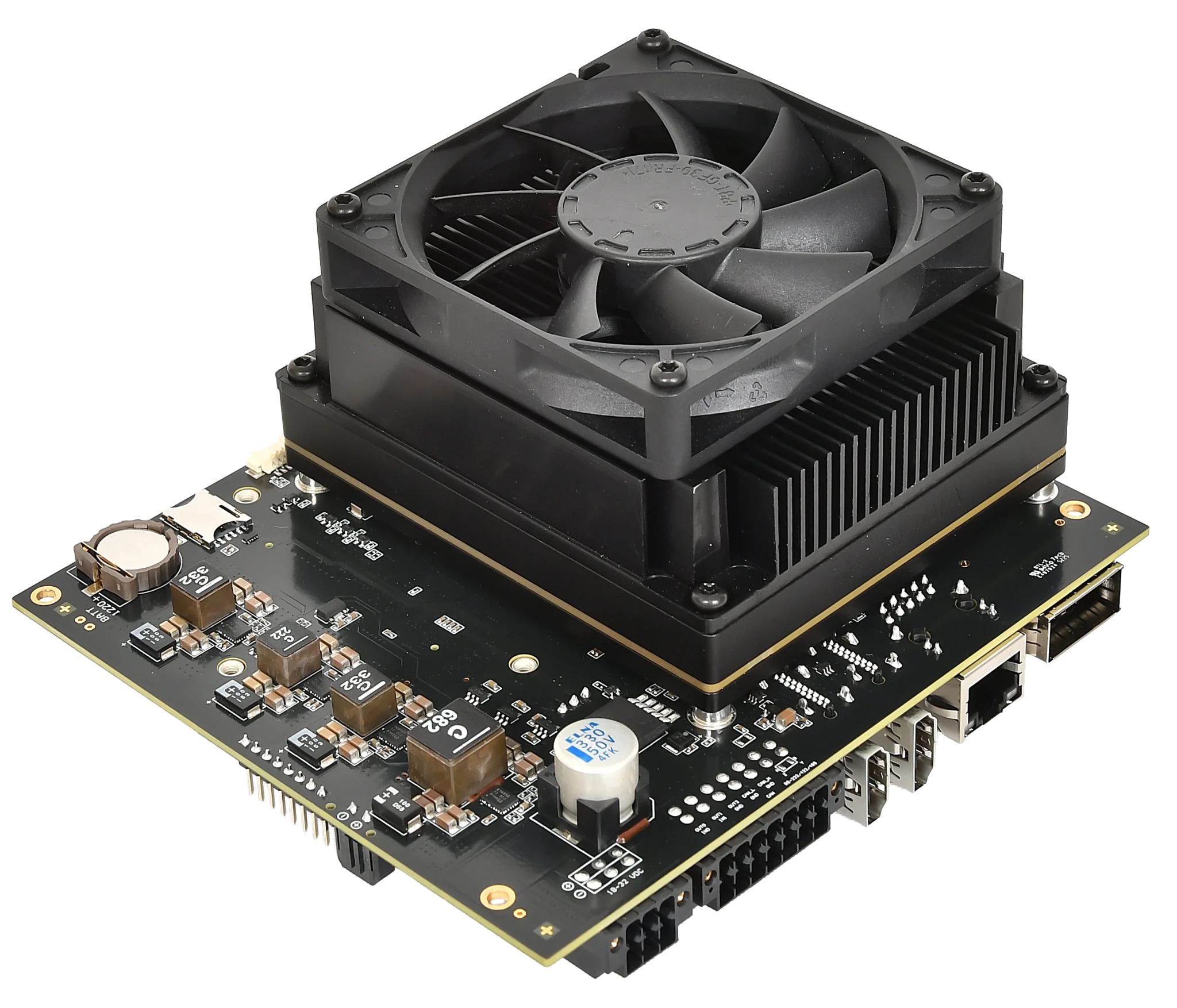

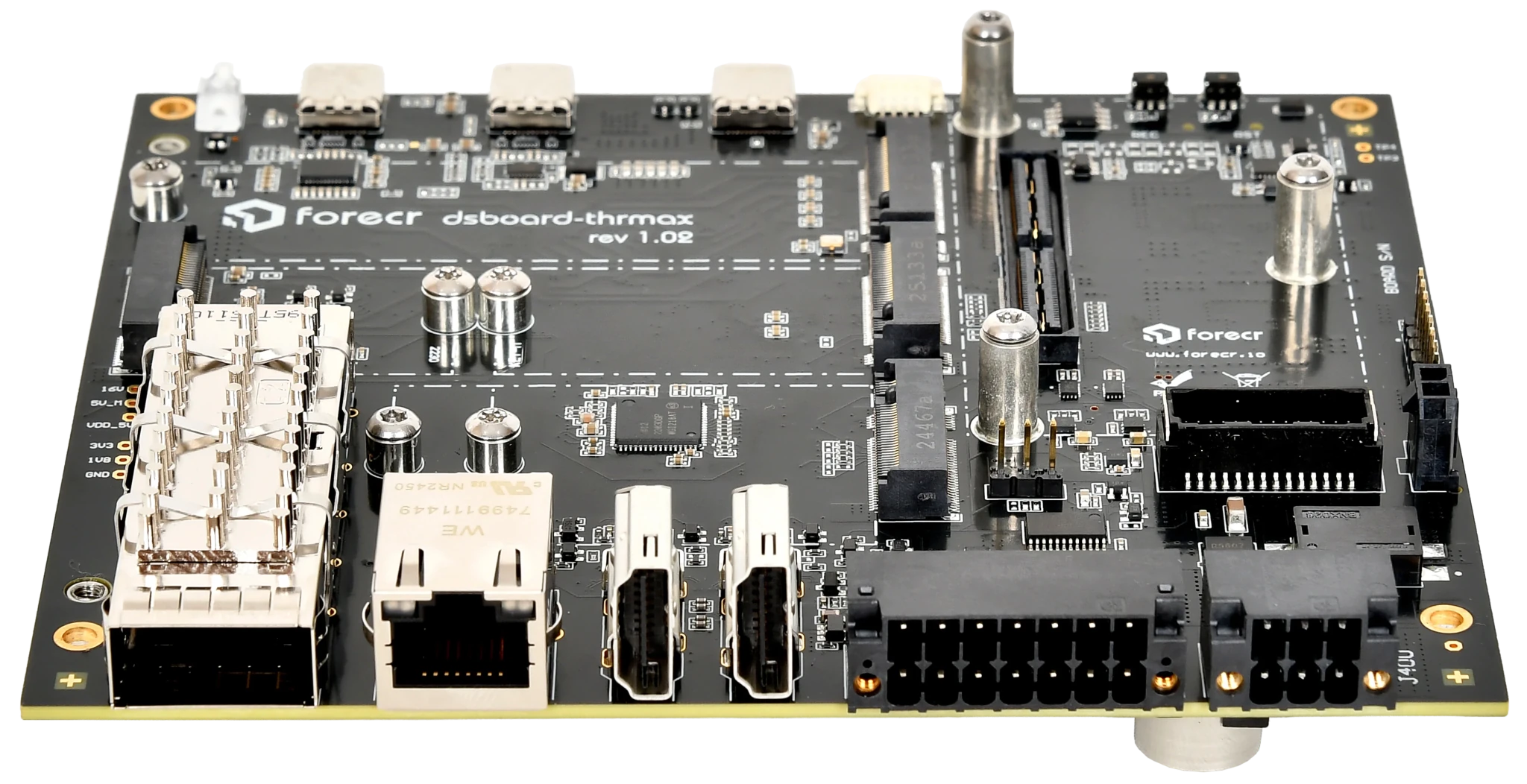

NVIDIA® Jetson AGX Thor™ Carrier Board - DSBOARD-THRMAX
The DSBOARD-THRMAX is a compact high performance carrier board designed for the NVIDIA Jetson THOR module. It delivers up to 2070 FP4 TFLOPS of AI compute and supports 128 GB of memory, making it an ideal choice for physical AI and robotics.
- Accelerated by NVIDIA Jetson T5000 & T4000
- 2070 TFLOPS (FP4—Sparse)
- WiFi/Bluetooth/LTE/5G Connectivity by extension sockets
- Enables real-time thermal monitoring
- Easily integrated with its compact form factor
Choose options
Built to support the next-generation NVIDIA Jetson AGX THOR SERIES
Introducing the DSBOARD-THRMAX, FORECR’s most advanced carrier board purpose-built for the groundbreaking NVIDIA Jetson THOR platform. With a powerful 128GB LPDDR5X memory interface, high-speed PCIe Gen5 storage, and a wide array of I/O options including dual HDMI 2.1, dual DP1.4a, USB 3.2, QSFP+, and robust serial connectivity, this compact 140x125mm board is engineered to support the most demanding edge AI applications.
Powered by NVIDIA Jetson AGX Thor
Built to support the next-generation NVIDIA Jetson AGX Thor, enabling unmatched AI inference and real-time processing capabilities for edge computing applications.
128GB LPDDR5X High-Speed Memory
Features ultra-fast 128GB 256-bit LPDDR5X memory to handle large AI models, dense sensor data, and multi-stream processing without performance bottlenecks.
COMPACT YET POWERFUL
Compact yet powerful, with a footprint of just 140x125mm — ideal for embedded systems where space is at a premium but performance is non-negotiable.
Versatile Video Outputs
Supports 2x HDMI 2.1 and 2x DP1.4a interfaces for multi-display, high-resolution output, tailored for vision-based applications and real-time visualization.
Rich I/O for System Integration
Includes USB 3.2, QSFP+, Gigabit Ethernet, CAN Bus, RS-232/422/485, and multiple digital I/Os, offering comprehensive connectivity for industrial and autonomous systems.
real-time thermal monitoring
Enables real-time thermal monitoring for system protection, predictive maintenance, and optimized performance in industrial and mission-critical environments.
NVIDIA® Jetson AGX Thor™ Carrier Board - DSBOARD-THRMAX Use Cases
The DSBOARD-THRMAX is exceptionally well-suited for robotics applications due to its computational power, sensor integration, and real-time communication interfaces.
DSBOARD-THRMAX is an excellent foundation for autonomous systems, offering the processing power, real-time interfaces, and rugged design needed for intelligent machines that operate independently in complex environments.
Enabling smart city applications that require high-performance, real-time edge AI capabilities. Its compact form factor, rich connectivity, and NVIDIA Jetson AGX THOR processing power make it suitable for a wide range of infrastructure-integrated systems.
NVIDIA® Jetson AGX Thor™ Carrier Board - DSBOARD-THRMAX Technical Specifications
| Supported Modules |
NVIDIA Jetson T5000 NVIDIA Jetson T4000 |
| Memory |
128 GB 256-bit LPDDR5X |
| Graphics Interfaces |
2x HDMI 2.1 1x DP1.4a (Micro-Coax) |
| Interfaces |
1x Gigabit Ethernet (RJ45) 2x USB3.2 Type-C with Screw-Lock 1x USB2.0 Type-C (Debug) 1x QSFP28 (4x 25GbE) 1x RS-232/422/485 4x CAN-FD 2x Digital Input (11-60V) 3x Digital Output (Low-Side Switch, up to 60V) EEPROM, 6-Axis IMU, Temperature Sensor RTC (10+ years lifetime)
|
| Wireless Communication |
WiFi/Bluetooth/LTE/5G Connectivity by extension sockets |
| Power Supply |
18-36 VDC |
| Extension Sockets |
1x M.2 Key-B 3042/3052 (USB3.0, USB2.0) 1x M.2 Key-E 2230 (PCIe x1, USB2.0) 1x Camera Expansion Connector (6x 2-Lane or 4x 4-Lane) 1x Expansion Header (1x I2C, 1x I2S, 1x SPI, 2x UART, 2x PWM, 2x CAN-FD) 1x nanoSIM FAN Connector (12V)
|
| Mass Storage |
1x M.2 Key-M 2280 (PCIe Gen4 x4) 1x M.2 Key-M 2242 (PCIe Gen4 x2)
|
| Ambient Conditions |
-40°C ... +85°C (Carrier Board) |
| Form Factor / Dimensions |
140 mm x 125 mm |
| Operating Systems |
Ubuntu Linux 24.04 |
| JetPack Support |
JetPack 7.x |
