DSBOARD-AGXS Overview and Connector Definitions

Updated on: November 11, 2026
WHAT YOU WILL LEARN?

1- The basic perspective over DSBOARD-AGX

2- The definitions of buttons

3- The definitions of each connector

ENVIRONMENT

Hardware: DSBOARD-AGXS

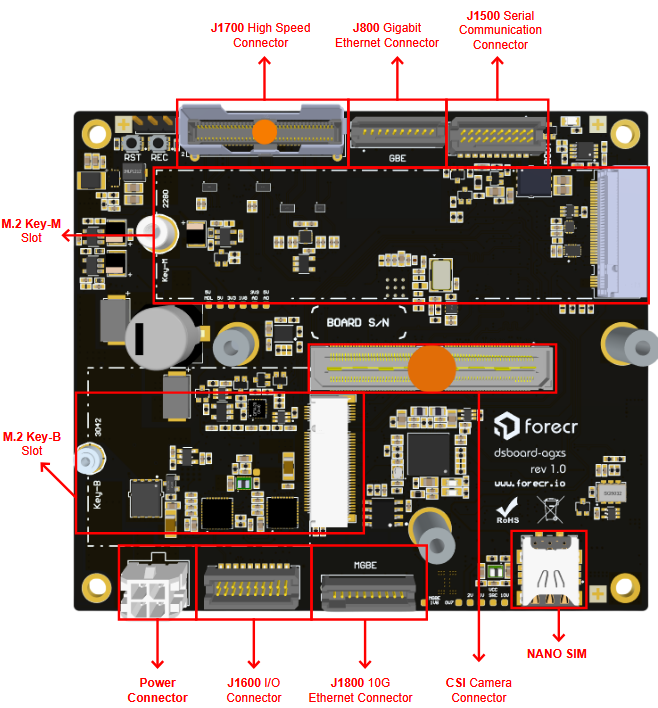

The Basic Perspective over DSBOARD-AGXS

Forecr’s DSBOARD-AGXS is industrial carrier board based on Nvidia Jetson AGX Orin processor module for edge analytics. It is compatible with multi stream deep learning applications.

TECHNICAL SPECIFICATIONS

Supported Modules

NVIDIA Jetson AGX Orin 32GB
NVIDIA Jetson AGX Orin 64GB
NVIDIA Jetson AGX Orin Industrial

Memory

32 GB 256-bit LPDDR5x
64 GB 256-bit LPDDR5x

Graphics Interfaces

1x DisplayPort 1.4

Interfaces

1x 5G Ethernet (Copper) (10G operation in progress)
1x Gigabit Ethernet (Copper)
3x USB3.2 (Gen2)
2x RS-232/422/485 (Software Configurable)
2x CAN-FD
2x Digital Input (3.3V Level)
2x Digital Output (3.3V Level)
2x PWM (3.3V Level)
1x Serial Communications Header (1x SPI,1x I2C, 2xUART) (3.3V Level)
FAN Connector (11V default, 5V optional)


Other Features

6-axis IMU, Temperature Sensor

Wireless Communication

WiFi/Bluetooth/LTE/5G Connectivity by extension sockets

Power Supply

12-36 VDC

Extension Sockets

1x M.2 Key-B 3042 (PCIe x1, USB2.0)
1x Camera Expansion Slot (6x 2-Lane or 4x 4-Lane)

Mass Storage

1x M.2 Key-M 2280 (PCIe Gen4 x4)

Ambient Conditions

-40°C ... +85°C

Form Factor / Dimensions

87 mm x 100 mm, 72 gr

Operating Systems

Ubuntu Linux 20.04 / 22.04 / 24.04


JetPack Support

JetPack 5.x / 6.x / 7.2+

The Definitions of Buttons

DSBOARD-AGXS Recovery Pushbutton

The DSBOARD-AGXS implements a recovery pushbutton. Recovery button should be pressed with reset button at the same time. After released reset button, recovery button should be pressed a little bit more (min. 250 ms).




DSBOARD-AGXS Reset Pushbutton

The DSBOARD-AGXS implements a reset button. It is recommended to use needle-like material.

The Definition of Each Connector

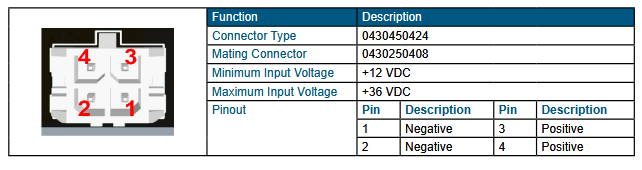

DSBOARD-AGXS Power Connector

The DSBOARD-AGXS implements 4-Pin Power Terminal Connector that accepts +12V to +36V DC power. The mating connector is "0430250408". The first and second pins are negative, third and fourth pins are positive.

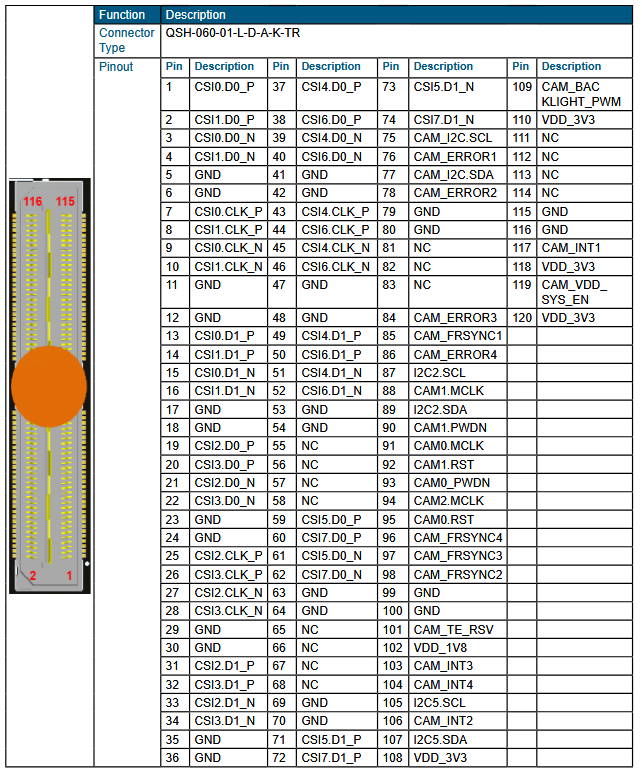

DSBOARD-AGXS Camera Connector

The DSBOARD-AGXS implements 16-lane CSI camera connector for camera adapter boards. The connector model is QSH-060-01-L-D-A-K-TR.

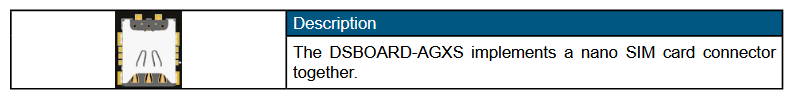

DSBOARD-AGXS SIM Card Connector

The DSBOARD-AGXS implements a nano SIM card connector together.

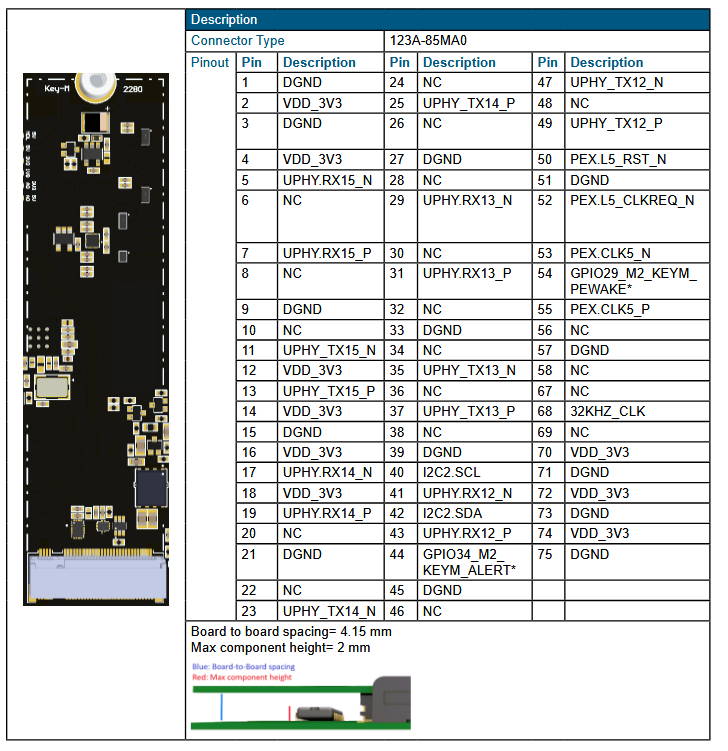

DSBOARD-AGXS M.2 Key-M Connector

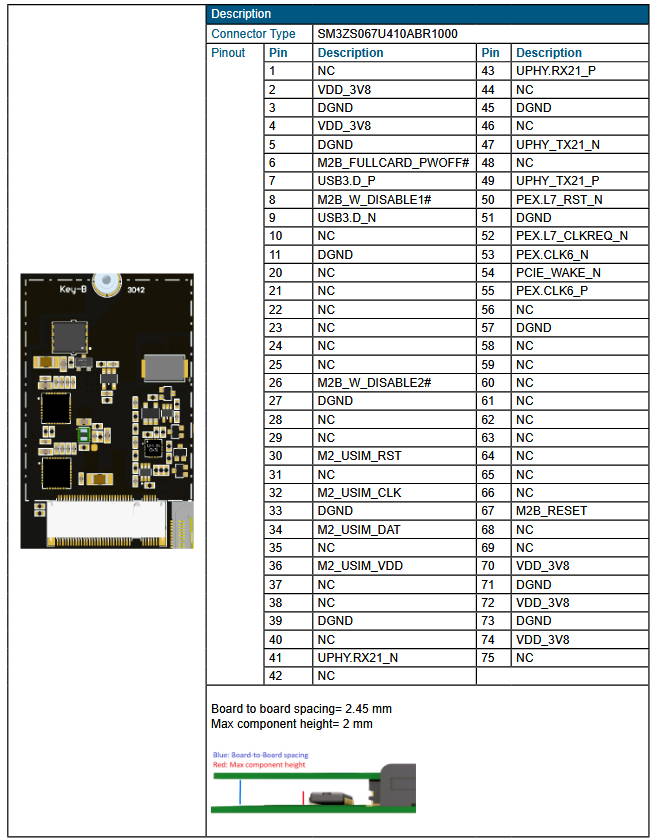

DSBOARD-AGXS M.2 Key-B Connector

DSBOARD-AGXS I/O Connector

The DSBOARD-AGXS implements 20 pins GPIO Expansion connector. The mating connector is “ISDF-10-D-M".

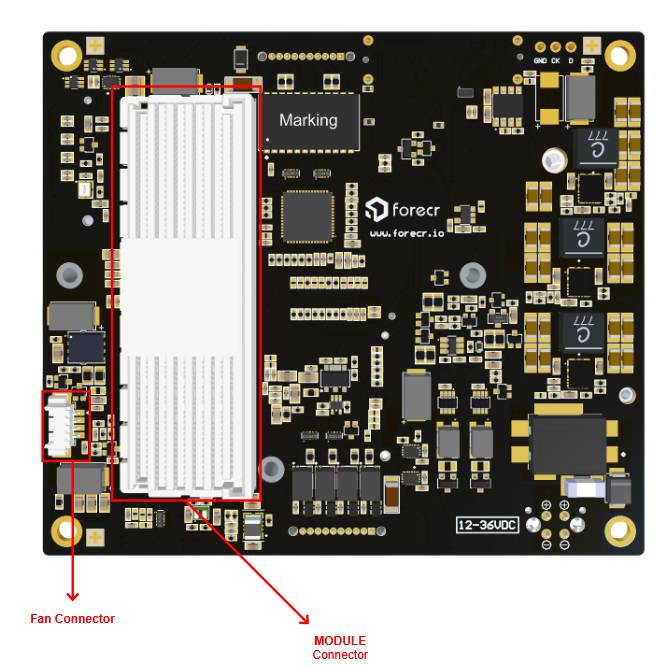

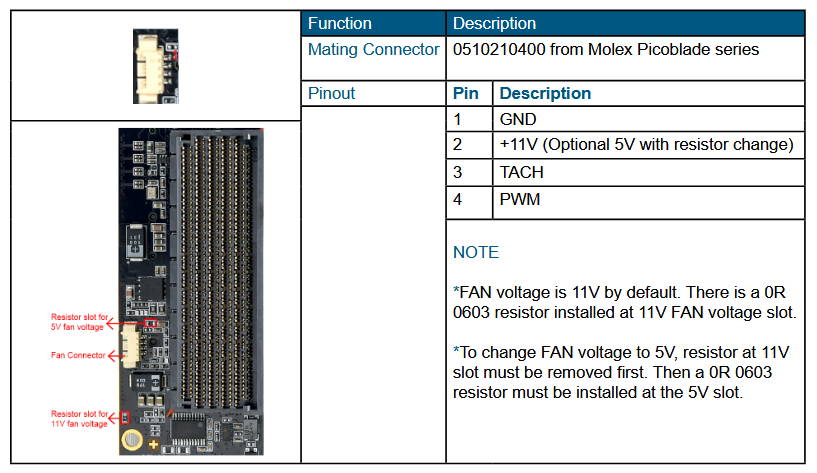

DSBOARD-AGXS Fan Connector

The DSBOARD-AGXS implements 4 pins header for fan connector (same pinout as NVIDIA's Jetson developer kits' fan connector). It is located on the front side of the board. It mates with 0510210400 from Molex Picoblade series.

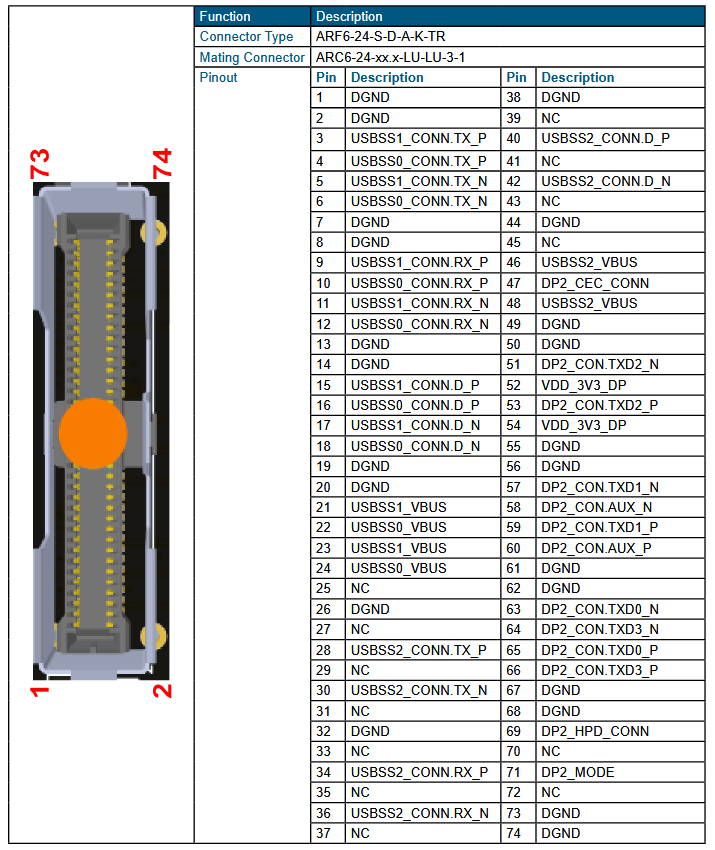

DSBOARD-AGXS High Speed Connector

The DSBOARD-AGXS implements 74 pins GPIO Expansion connector. The Connector model is ARF6-24-S-D-A-K-TR from Samtec. The mating connector is ARC6-24-xx.x-LU-LU-3-1.

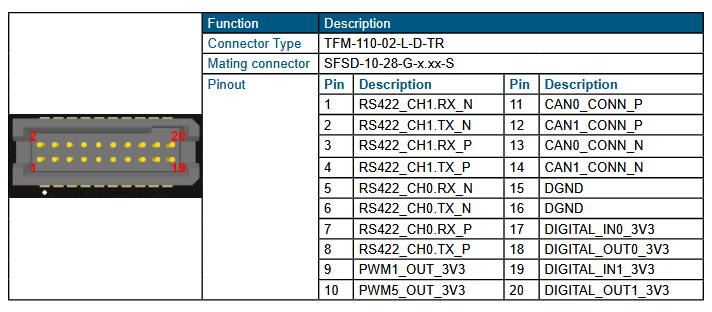

DSBOARD-AGXS Serial Communication Connector

The DSBOARD-AGXS implements  20 pins GPIO Expansion connector which has 1x SPI, 1x I2C, 2x UART. The connector model is TFM-110-02-L-D-WT. The mating connector is ISDF-10-D-M.

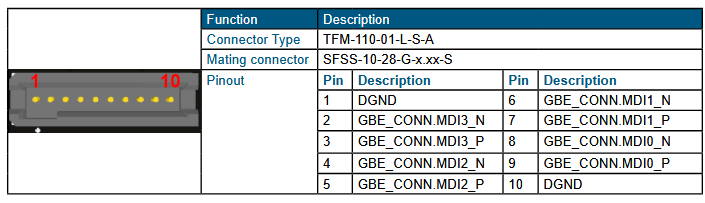

DSBOARD-AGXS Ethernet Connector

The DSBOARD-AGXS implements  10 pins GPIO Expansion connector. The connector model is TFM-105-01-L-D-WT. The mating connector is ISDF-05-D-M.

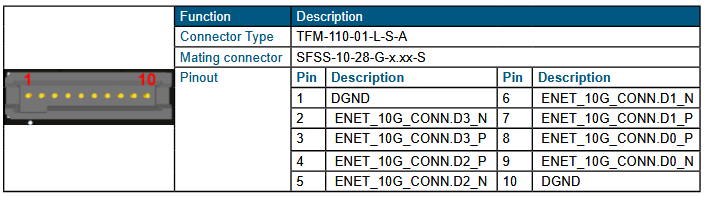

DSBOARD-AGXS Multi-Gigabit Ethernet Connector

The DSBOARD-AGXS implements  10 pins GPIO Expansion connector. The connector model is TFM-105-01-L-D-WT. The mating connector is ISDF-05-D-M.
