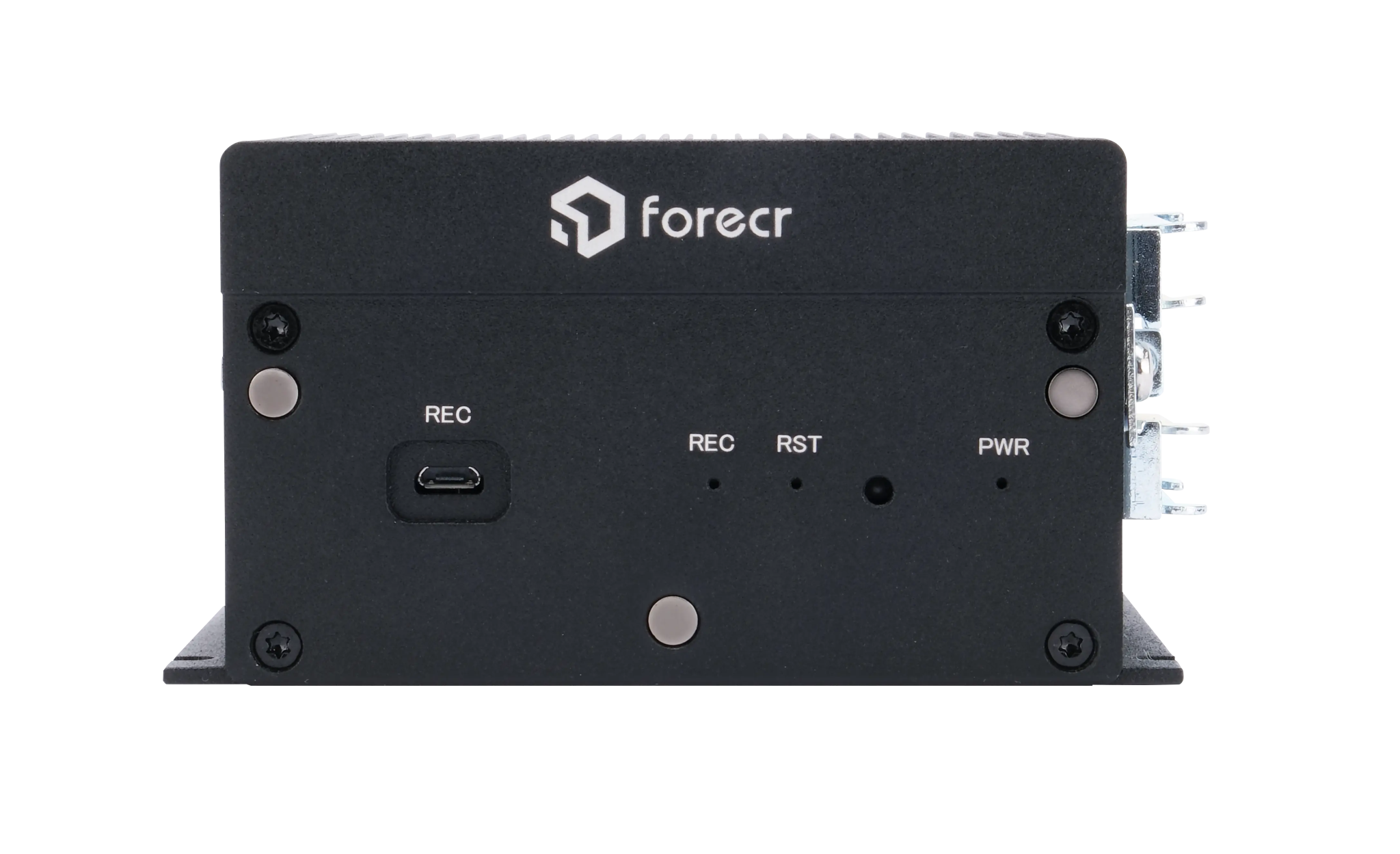

Supercomputer Level Performance in Industrial PC Form Factor

SUPERCOMPUTER LEVEL PERFORMANCE

DSBOX-ORNX can decode up to 18 video streams in 1080p at 30 FPS with its powerful NVIDIA® Jetson™ Orin™ NX processor. Orin™ NX processor delivers 100 TOPS AI performance with its 1024 NVIDIA® CUDA® Cores, 48 Tensor Cores, 8-core ARM64 CPUs, and two NVIDIA® Deep Learning Accelerators (NVDLA) engines.


With the help of NVIDIA®’s DeepStream SDK, you can achieve maximum performance on simultaneous video processing applications. You can achieve up to 260 FPS for Resnet-34 based people detection and 32 FPS for RESNET-34 based pose estimation algorithms with full utilization of GPU together with two DLA engines. Benchmark details can be found at NVIDIA®’s DeepStream SDK website.


These benchmarks show that DSBOX-ORNX is your edge AI deployment system for multiple stream video processing applications based on deep learning algorithms.

FANLESS AND COOL

DSBOX-ORNX provides a field-proven mechanical design for its users. It is elegant, durable and cool even after long operations under heavy CPU and GPU utilization. With its extended operating temperature range of -25⁰C to +65⁰C, you can use DSBOX-ORNX in any industrial environment.

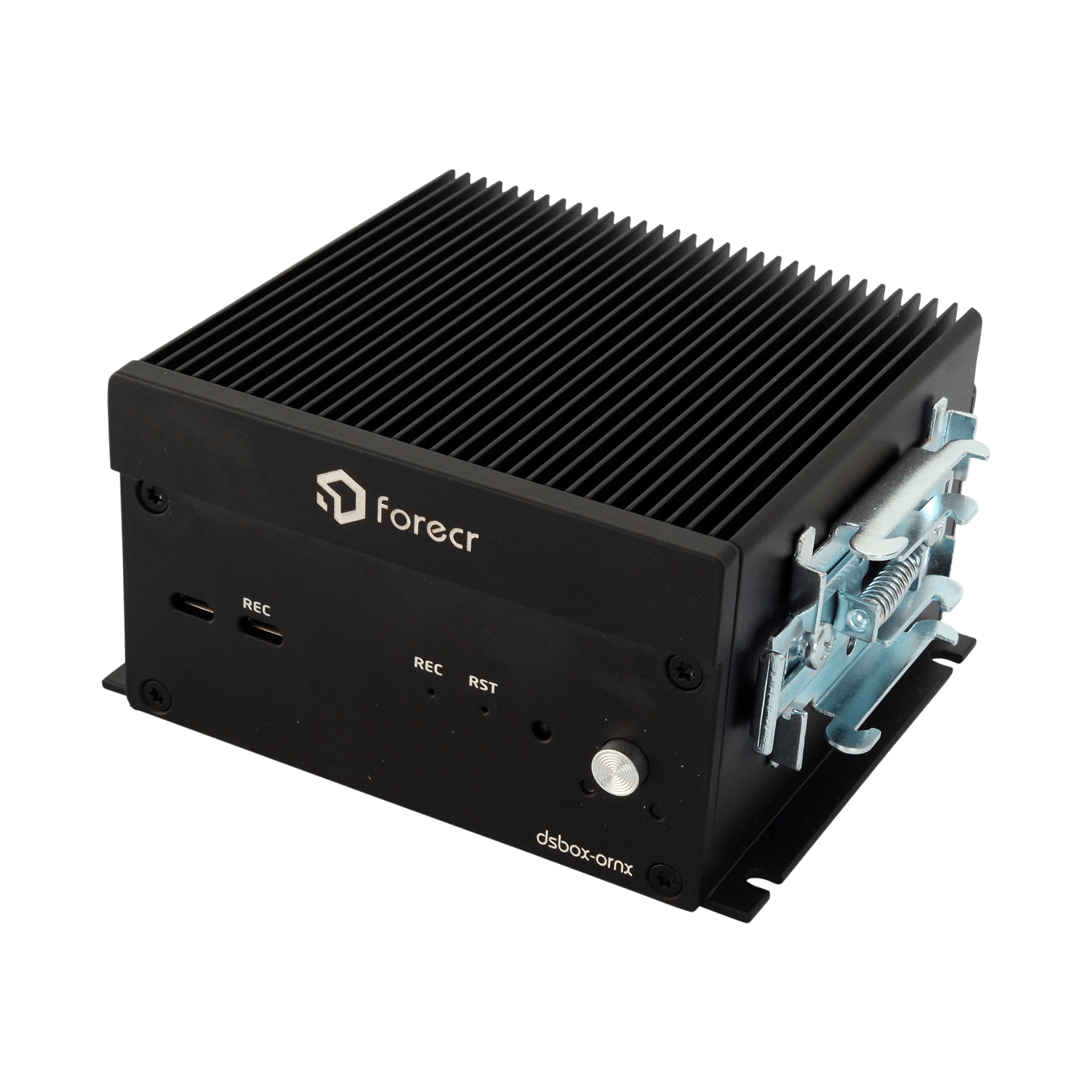

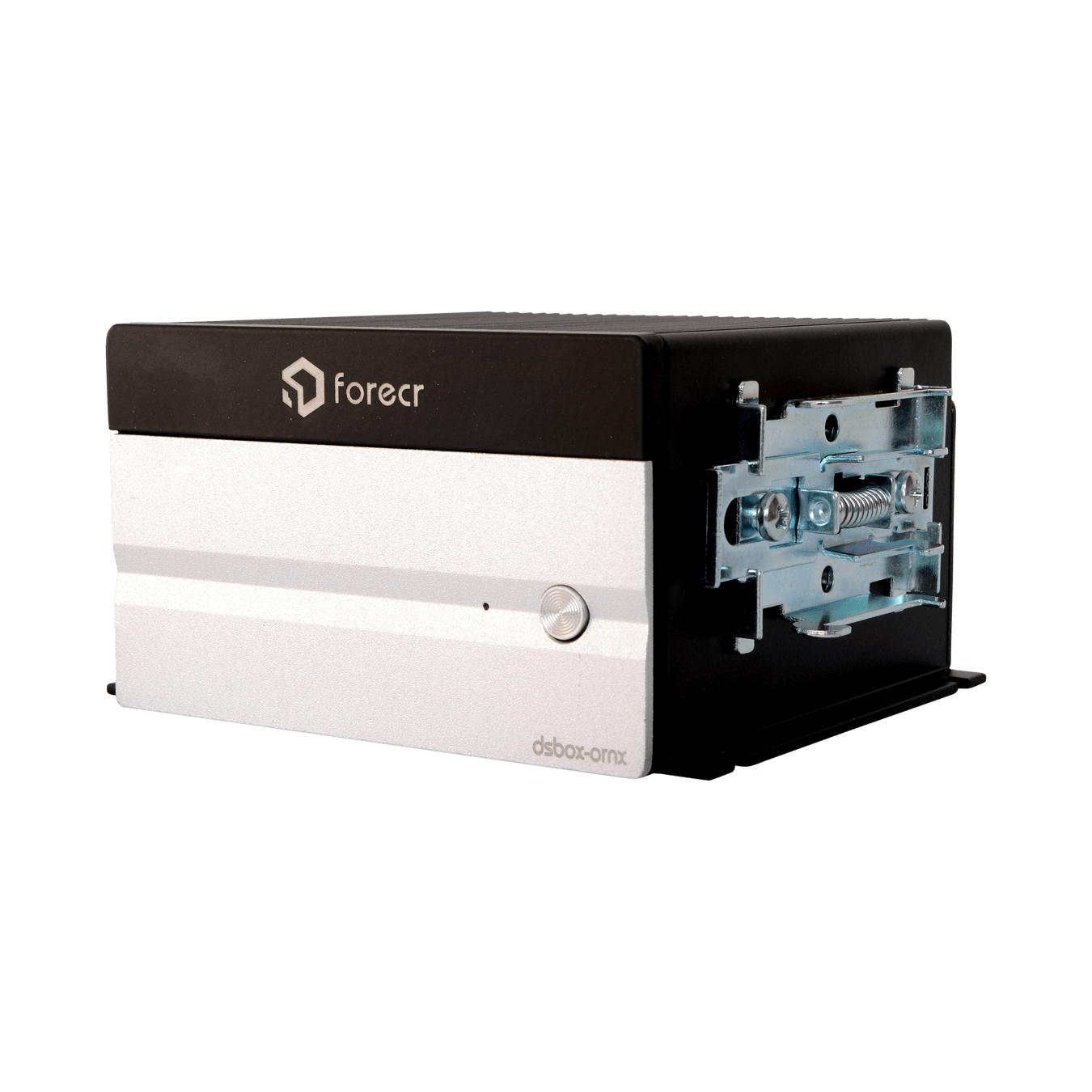

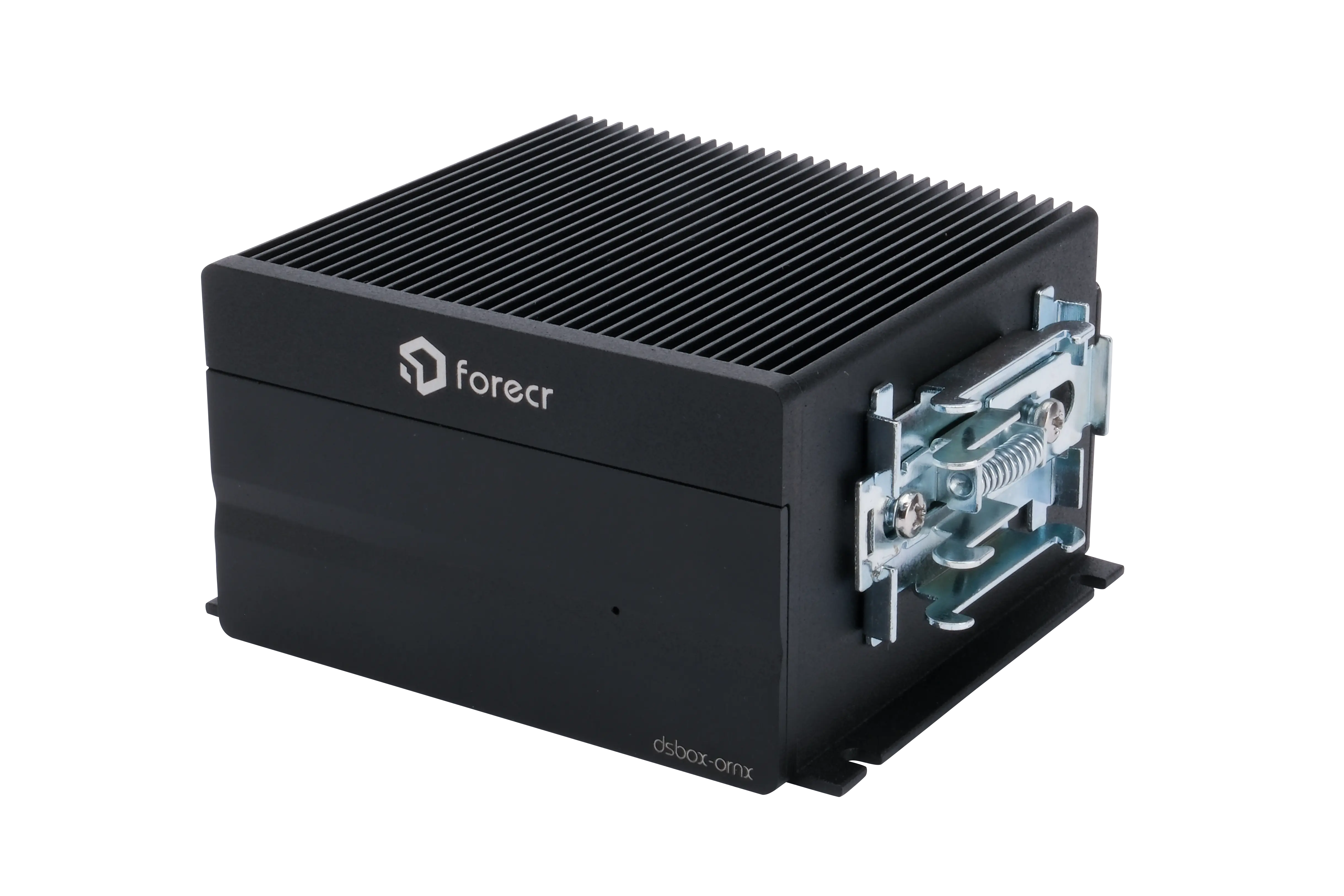

Mechanical mounting options are well-thought during the design of DSBOX enclosure. You can use it on the desk as your development computer for next edge AI project, mount to wall or a surface using the screw holes on the flanges or even can mount to a standard rail using the supplied rail mount adapter.


Thermal performance is guaranteed with its unique mechanical design. After 24 hours of heavy operation with maximum CPU and GPU utilization, internal CPU temperature does not exceed 78⁰C. With its guaranteed thermal performance. DSBOX-ORNX never reaches thermal throttling points of processor and never drops its performance.

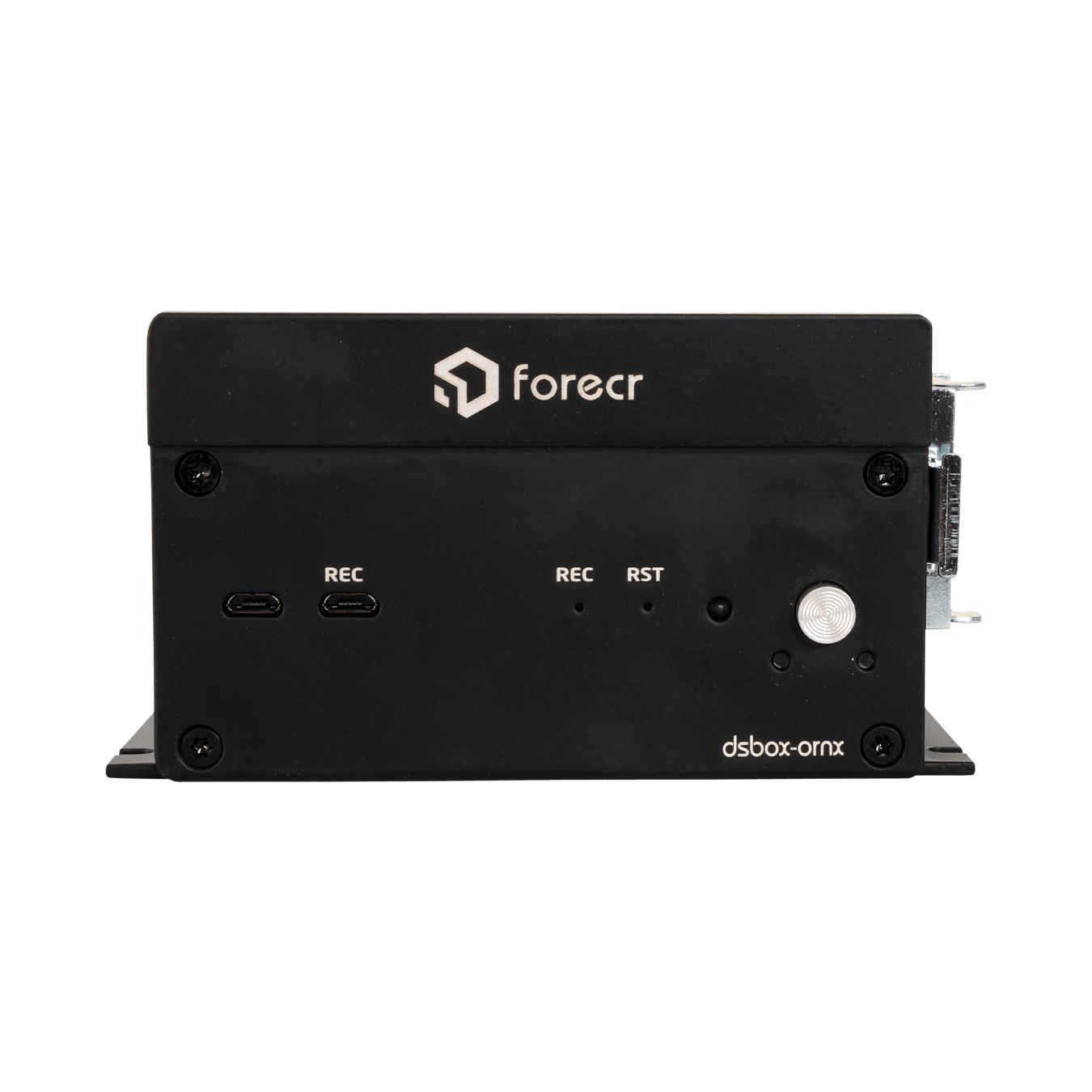

Fanless Mechanical Design with Proven Thermal Performance
Rich Industrial Connectivity with Wide Interface Options such as RS232, RS485, CAN, IO

RICH INDUSTRIAL CONNECTIVITY

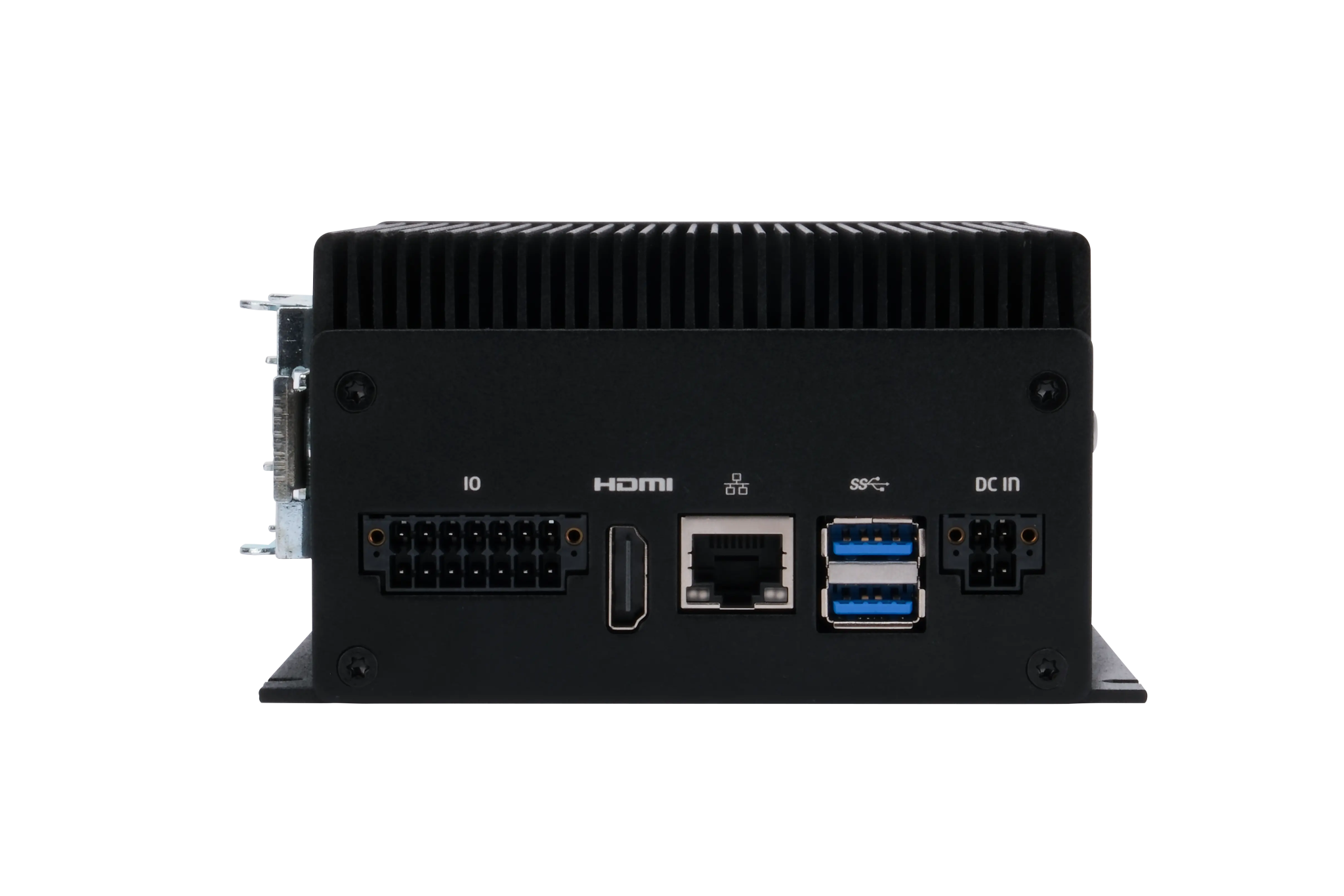

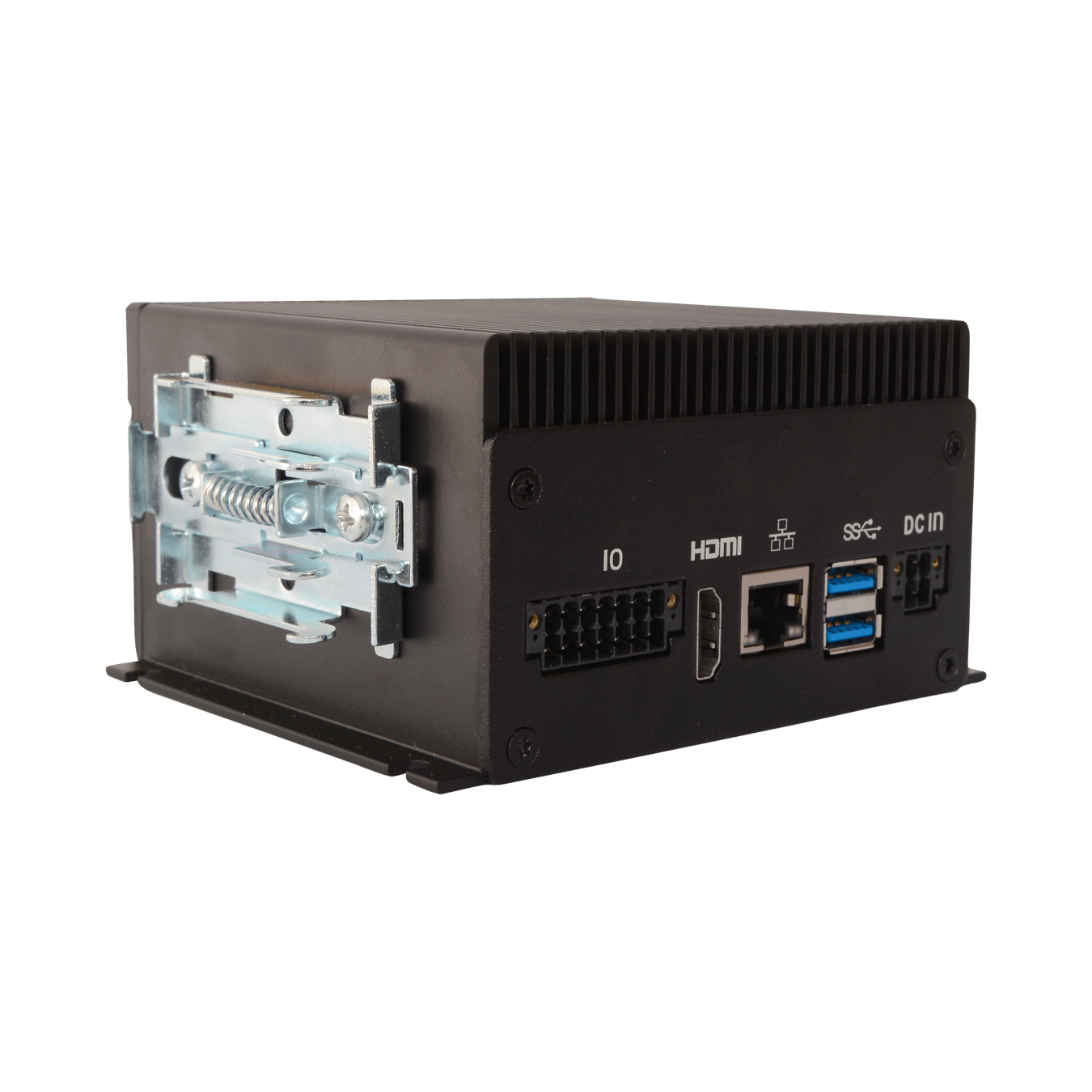

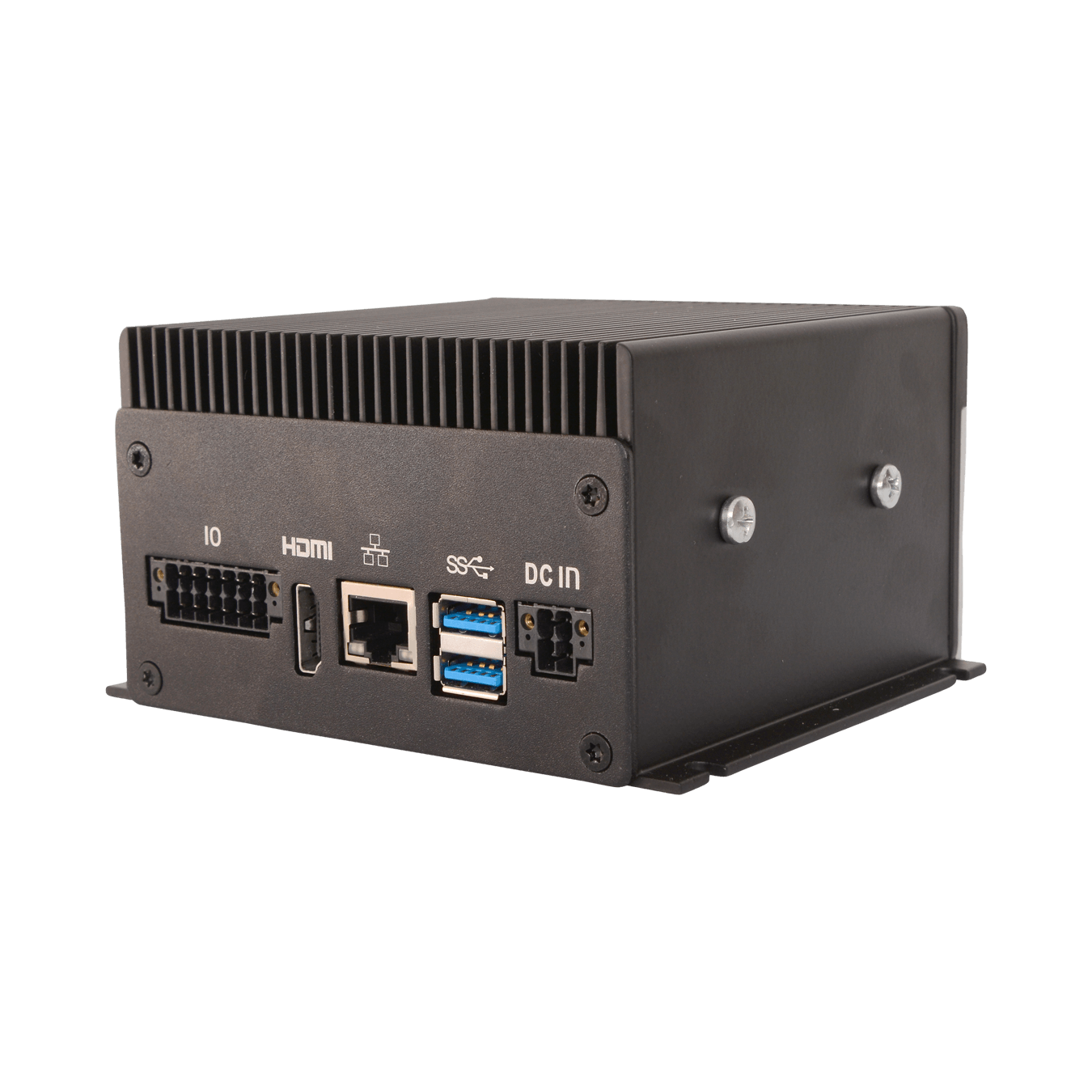

With its rich industrial connectivity options, DSBOX-ORNX enables you to connect any industrial system, production line or network. Beside standard high speed interfaces such as Gigabit Ethernet and USB 3.1, you can connect to PLC systems, servo motor controllers, sensors, actuators and even vehicle information networks using the CAN BUS interface. You can process signals, videos or device sensor information with deep learning based algorithms and send commands to your actuators, cobots or leds. Additionally, isolated industrial level digital inputs and outputs are available for initializing detection and recognition process or direct signal passing based on algorithm findings.


DSBOX-ORNX is designed for industrial automation and it satisfies all the needs for getting integrated to an automation system. Beside CAN BUS option, there are two serial ports available for RS-232 and RS-422 based connections.

MAXIMUM BUS THROUGHPUT

Hardware design of DSBOX-ORNX is realized with all the specifications of high speed interfaces in mind. Every trace is designed carefully in order to deliver maximum throughput to its users. DSBOX-ORNX includes PCI Gen 4 support for 2x M.2 Key-M SSD connections, Gigabit Ethernet for broadband and network connections, 2x USB 3.1 for high resolution cameras and generic USB device connections and M.2 Key-B with USB 3.1 connection for 3G/4G/5G applications.


All of these high speed interfaces are tested on each shipped board and the performance never degrades. On M.2 Key-M SSD tests, the throughput is over 7 GB/sec with PCIE Gen 4 M.2 SSDs compared the theoretical limit of 8 GB/sec, USB 3.1 tests show 4.5 GB/sec under full utilization of the slots where theoretical limit is 5 GB/sec.


Last but not least, Gigabit Ethernet utilization tests show over 900MBits/sec compared to 1 Gbps theoretical limit of this interface.

Maximum Bus Throughput on High Speed Interfaces like USB3, M.2, PCIE, Gigabit Ethernet
Reliable Power Design with Wide Input Voltage Range

RELIABLE POWER DESIGN

DSBOX-ORNX provides a wide range voltage input together with reliability. You can connect any power supply between 9-28 VDC range and it will work for weeks and mounts without any issues. Even under long hours of maximum CPU and GPU loads. the power design is always stable and never causes an interruption.


Achiving this reliability is never easy. From board stackup to circuit design and component selection, every step is realized very carefully. Our ten years experience on hardware design and six years experience on designing carrier boards and hardware systems based on NVIDIA® Jetson™ Orin NX/Nano modules helped us achieving this performance as well.


Beside power circuit reliability, power connection reliability is another important aspect in industrial systems. With our screw locked industrial grade power connectors, you will never have an operation interruption caused by connection issues.

Technical Specifications

Supported Modules

NVIDIA Jetson Orin Nano 4GB / 8GB

NVIDIA Jetson Orin NX 8GB / 16GB

Memory

4 GB 64-bit LPDDR5 / 8 GB 128 bit LPDDR5

8 GB 256-bit LPDDR5 / 16 GB 128 bit LPDDR5

Graphics Interfaces 1x HDMI 2.0 (max resolution 3840x2160)
Interfaces

1x Gigabit Ethernet

2x USB 3.1 Type-A

1x CAN Bus

1x RS232 & 1x RS422

1x microUSB 2.0 (Recovery)

2x Digital Input, 2x Digital Output

Wireless Communication WiFi/Bluetooth/LTE/5G Connectivity by extension sockets
Power Supply9-28 VDC
Extension Sockets

1x M.2 Key-E, 1x M.2 Key-B, 1x SIM

Mass Storage

2x M.2 Key-M SSD Slot

Ambient Conditions-25°C ... +85°C
Form Factor / Dimensions110 mm x 130 mm x 60 mm, 760 gr
Operating SystemsUbuntu Linux 20.04
JetPack SupportJetPack 5.1
