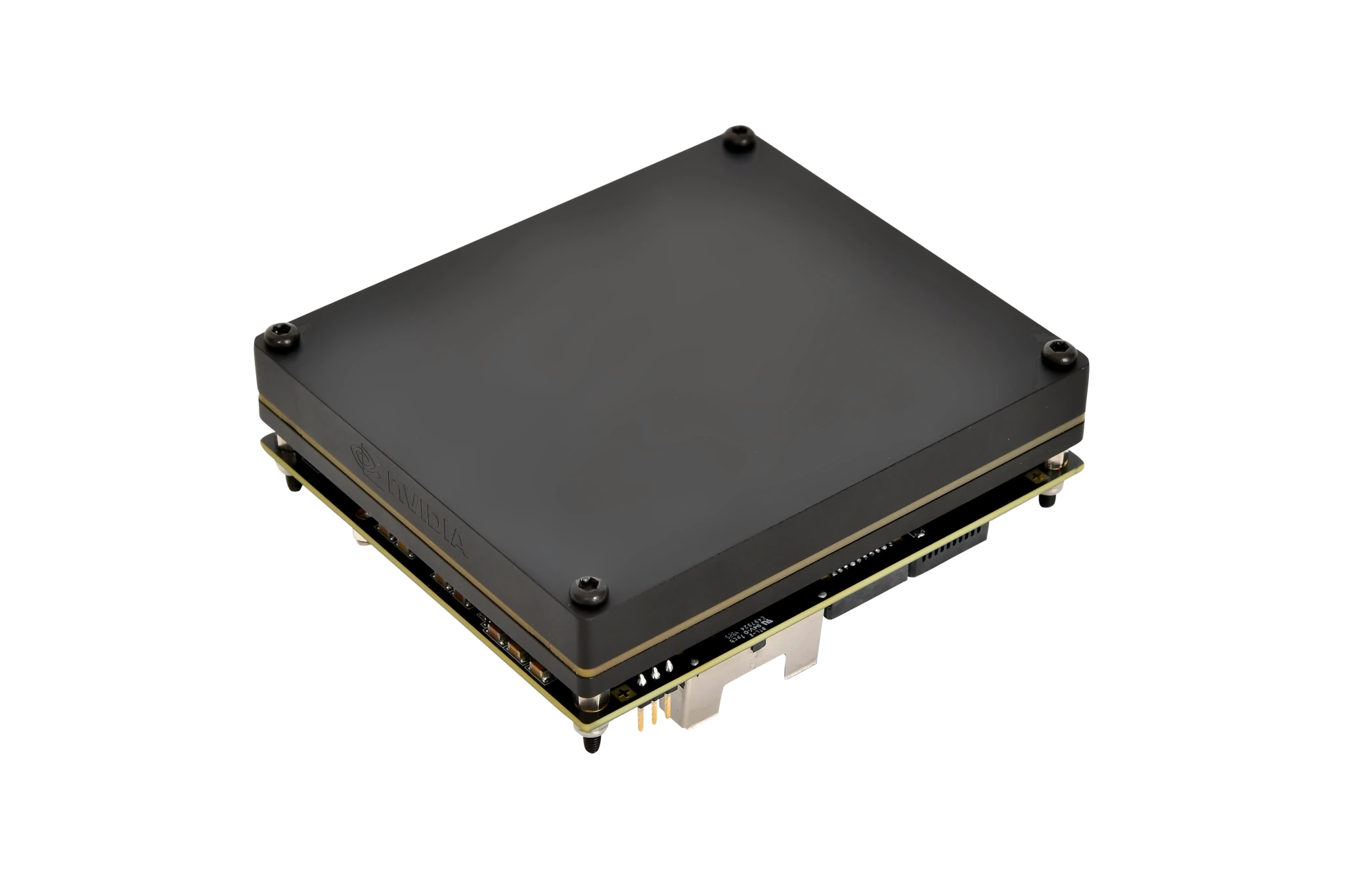

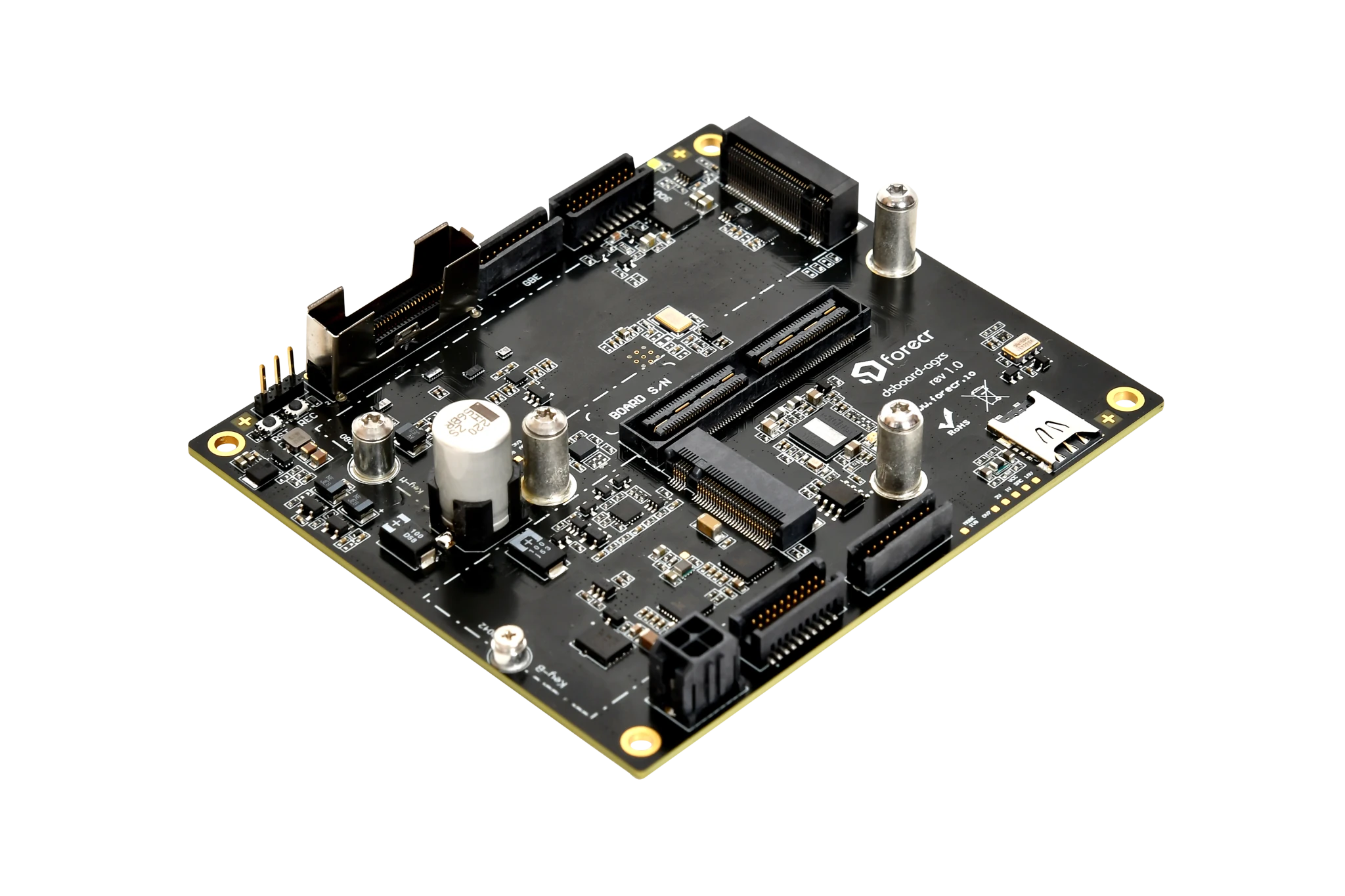

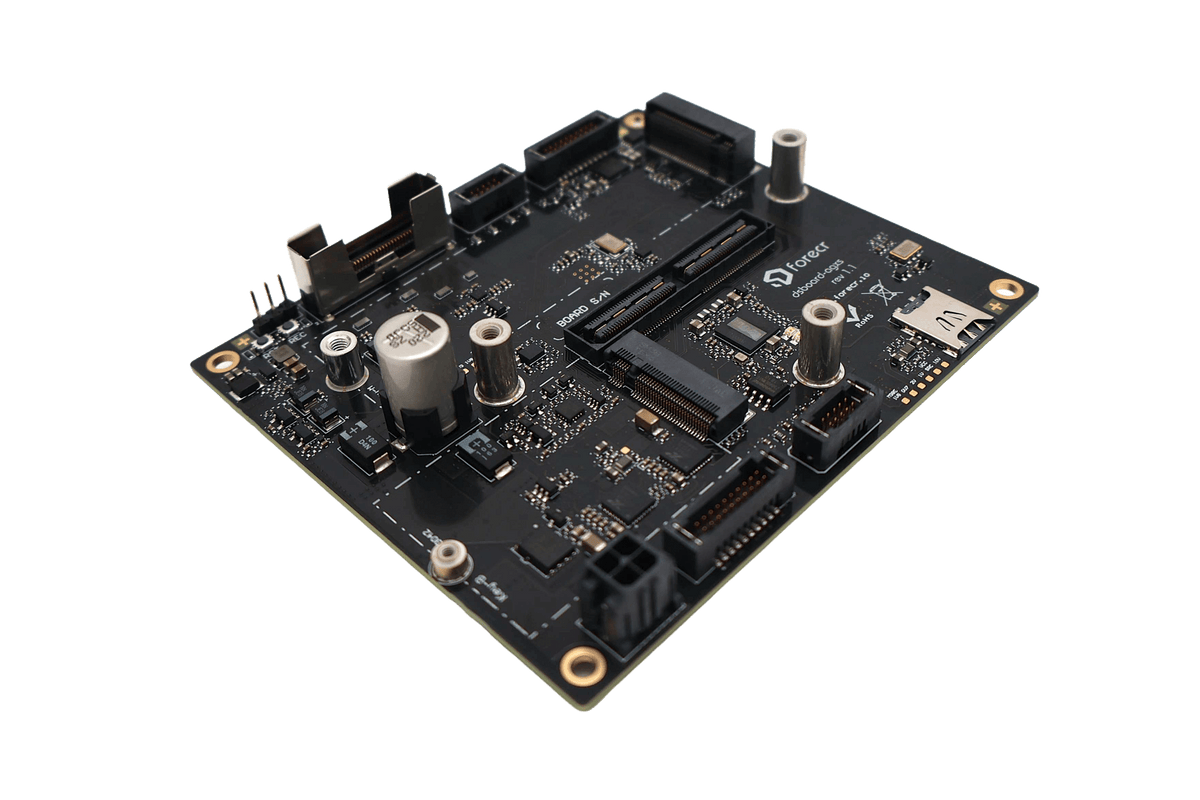

NVIDIA® Jetson AGX Orin™ Compact Carrier Board - DSBOARD-AGXS
DSBOARD-AGXS is a powerful and compact edge computing device based on the NVIDIA Jetson AGX Orin SOM which features an NVIDIA Ampere GPU with 1024 CUDA cores. Delivers high-speed networking, supporting rapid data transfer.
- Powered by NVIDIA Jetson AGX Orin
- CAN, RS-232 and Gigabit Ethernet interfaces
- HDMI 2.0b with up to 8Kp60 resolution
- Runs on NVIDIA JetPack SDK for building AI apps
- Compact form factor
Choose options
NVIDIA Jetson AGX Orin with up to 275 TOPS of AI performance
Its compact size and versatile connectivity options make it easy to integrate into existing systems, while its powerful performance and reliable operation ensure that you get the results you need. With its robust design, advanced performance, and versatile connectivity options, it is the ideal solution for any industrial application.
Compact Form factor

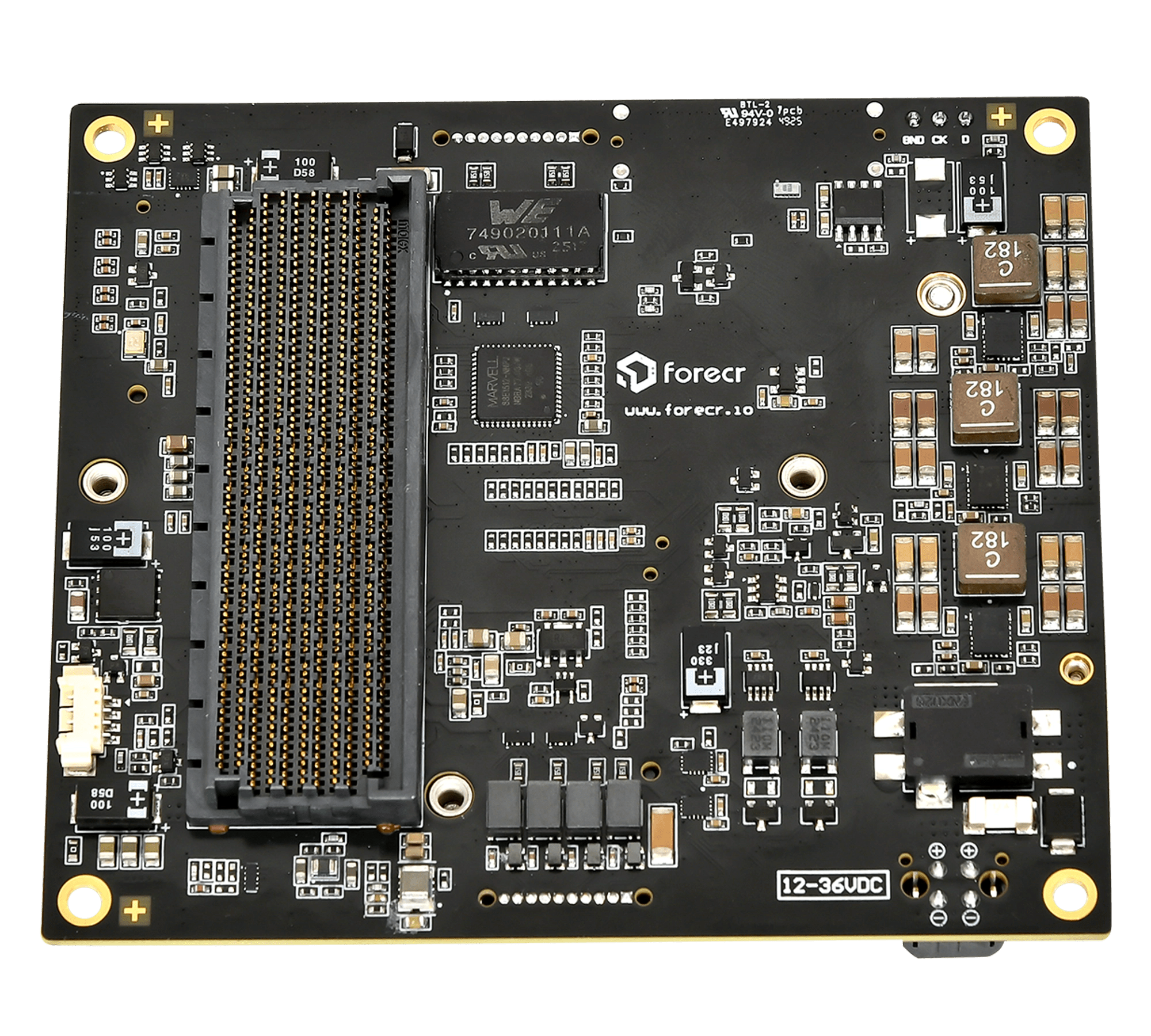

The DSBOARD-AGXS is designed around the standard AGX Orin SOM footprint (87×100 mm), ensuring straightforward mechanical and electrical integration into existing platforms. This compact, industry-aligned form factor simplifies system design, reduces development time, and accelerates deployment.
High-speed connectivity

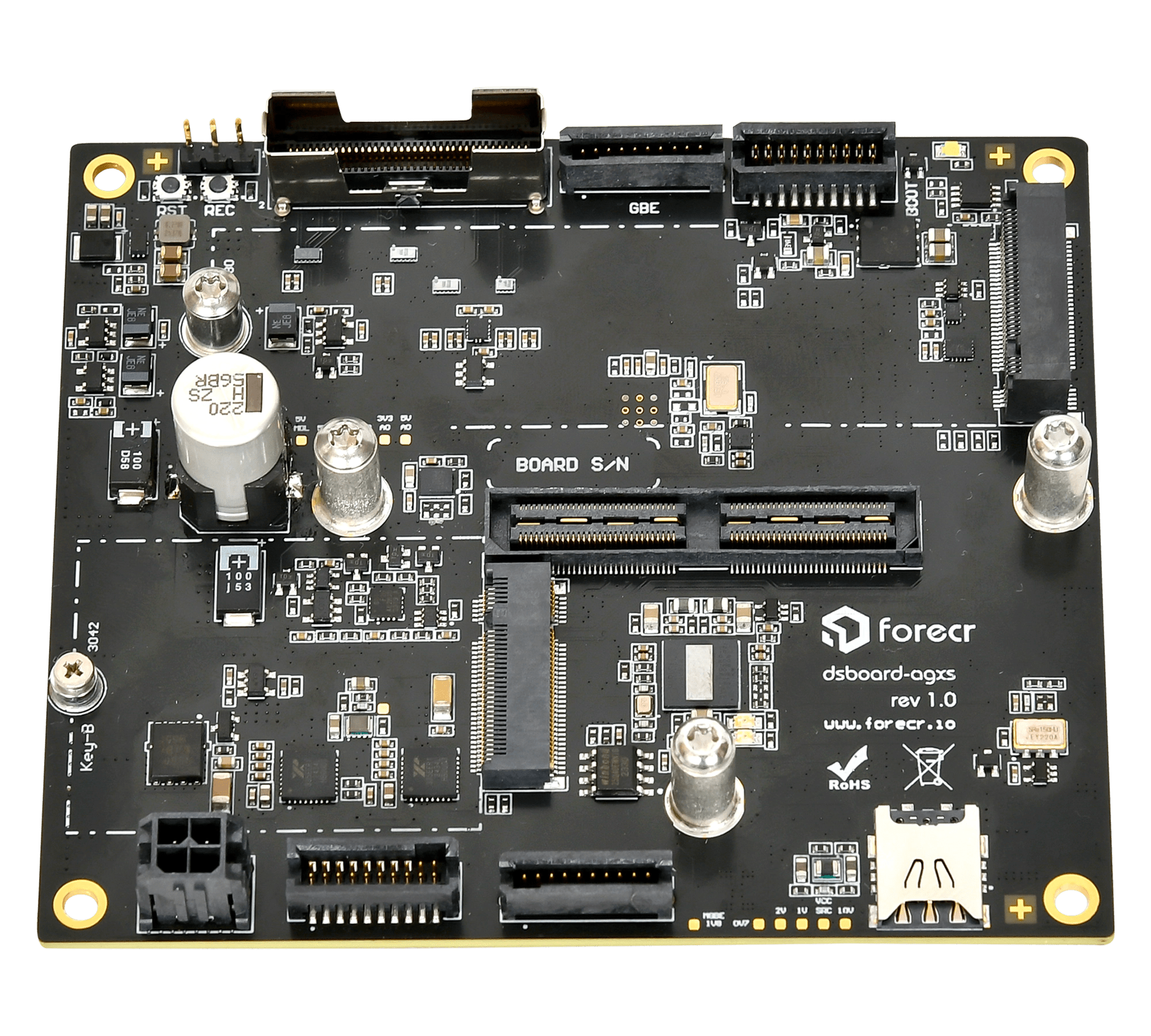

The DSBOARD-AGXS delivers high-speed networking through 10G Ethernet alongside 1G Ethernet, supporting rapid data transfer for AI, vision, and edge computing workloads. With additional expansion via M.2 Key-M and M.2 Key-B slots, the board supports NVMe storage, wireless modules, and other high-performance add-ons for flexible system customization.
Rich industrial IO
Rich industrial I/O including RS-232/422/485, dual CAN, digital I/Os, SPI, I2C, UARTEquipped with comprehensive industrial interfaces, the DSBOARD-AGXS enables seamless integration with legacy and modern subsystems. Support for RS-232/422/485, dual CAN, digital I/Os, SPI, I2C, and UART ensures reliable communication with sensors, actuators, vehicle systems, and embedded controllers.
nano-SIM support
The DSBOARD-AGXS features integrated sensing and control capabilities, including a 6-axis IMU for motion tracking and orientation awareness. An onboard temperature sensor enables continuous thermal monitoring for improved system reliability. Nano-SIM support allows cellular connectivity for remote deployment, telemetry, and edge communication.

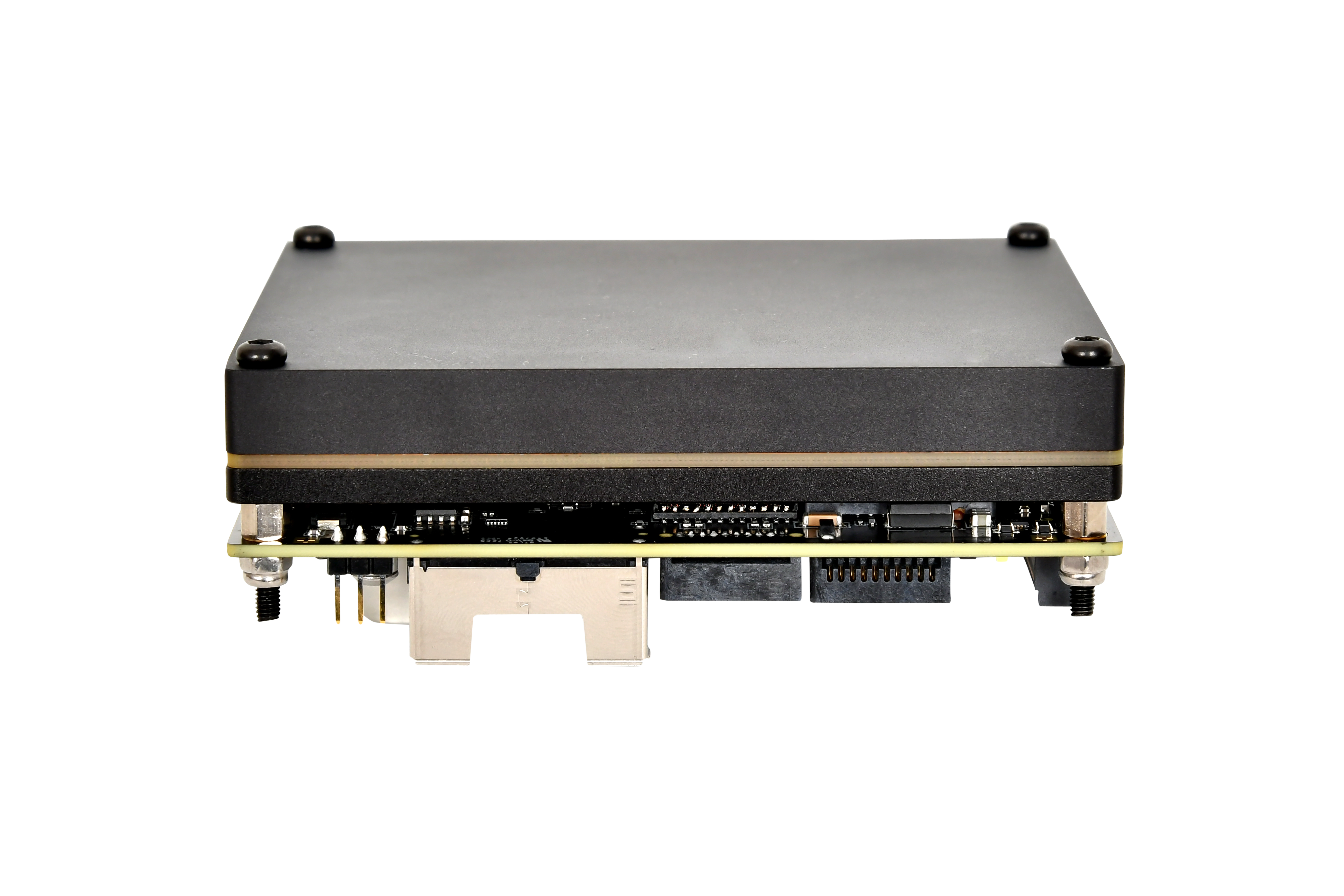

locking connectors
The DSBOARD-AGXS is engineered for deployment in demanding industrial and defense environments, featuring locking connectors that prevent accidental disconnections during operation. Its vibration-resistant architecture ensures stable performance in high-shock and mobile platforms such as ground vehicles, UAVs, and heavy machinery.
WiFi/Bluetooth/LTE/5G
The DSBOARD-AGXS supports wireless connectivity through dedicated extension sockets, enabling integration of WiFi, Bluetooth, LTE, and 5G modules. This flexible architecture allows secure local communication, device pairing, and high-speed wide-area networking for remote operations.
NVIDIA® Jetson AGX Orin™ Compact Carrier Board - DSBOARD-AGXS Use Cases
DSBOARD-AGXS is an excellent foundation for autonomous systems, offering the processing power, real-time interfaces, and rugged design needed for intelligent machines that operate independently in complex environments.
The DSBOARD-AGXS is exceptionally well-suited for robotics applications due to its computational power and its compact form.
Enabling smart city applications that require high-performance, real-time edge AI capabilities. Its compact form factor, rich connectivity, and NVIDIA Jetson AGX Orin processing power make it suitable for a wide range of infrastructure-integrated systems.
NVIDIA® Jetson AGX Orin™ Compact Carrier Board - DSBOARD-AGXS Technical Specifications
| Supported Modules |
NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64G NVIDIA Jetson AGX Orin Industrial |
| Memory |
32 GB 256-bit LPDDR5x 64 GB 256-bit LPDDR5x |
| Graphics Interfaces |
1x DP 1.4 |
| Interfaces |
1x 10G Ethernet (Copper) 1x 1G Ethernet (Copper) 2x USB3.1 2xRS-232/422/485 2xCAN Bus 2xDigital Input 2xDigital Output 1x Serial Communications Header (1xSPI, 1xI2C, 1x nanoSIM Connector 11V(default)/5V selectable FAN Header 6-axis IMU Temperature sensor |
| Wireless Communication |
WiFi/Bluetooth/LTE/5G Connectivity by extension |
| Power Supply |
12-36 VDC |
| Extension Sockets |
1x M.2 Key-B 3042 (PCIe Gen4 x1, USB3.1, USB2.0) 1x Camera Expansion Slot (for use with MIPI, GMSL |
| Mass Storage |
1x M.2 Key-M 2280 (PCIe Gen4 x4) |
| Ambient Conditions |
-40°C ... +85°C (Carrier Board) |
| Form Factor / Dimensions |
87x100mm (same as AGX Orin SOM) |
| Operating Systems |
Ubuntu Linux 20.04, 22.04 |
| JetPack Support |
JetPack 5.x / 6.x |
