Forecr’s MILBOX-AGXMAX is industrial rugged PC on Nvidia Jetson AGX Orin processor modules for edge analytics. It is compatible with multi stream deep learning applications.

Technical Specifications

NVIDIA Jetson AGX Orin 32GB
NVIDIA Jetson AGX Orin 64GB
NVIDIA Jetson AGX Orin Industrial
Memory 32 GB 256-bit LPDDR5x
64 GB 256-bit LPDDR5x
Graphics Interfaces 1x HDMI 2.0
Interfaces 3x Gigabit Ethernet
1x 10G Ethernet
2x USB 3.2
2x USB 2.0
1x USB 2.0 (Serial Console)
2x CAN Bus
4x RS232/422
8x Digital IO
4x BNC (Configurable)
Power Supply 12-36 VDC (28 VDC Nominal)
Extension Sockets None
Mass Storage 64 GB eMMC 5.1 Flash
2x M.2 Key-M SSD Slot (occupied)
SD Card
Ambient Conditions -25°C ... +70°C (-40°C for Industrial Module)
Dimensions 30cm x 24cm x 10cm, 5292gr
Ubuntu Linux 20.04
Ubuntu Linux 22.04Standards

Designed to meet MIL-STD-1275/704, MIL-STD-810, MIL-STD-461, IP67
JetPack 5.x
JetPack 6.x

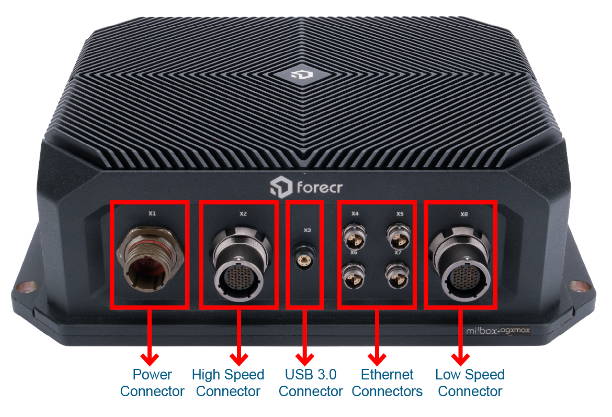

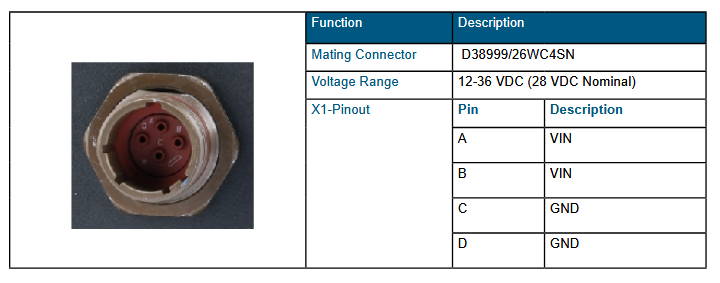

MILBOX-AGXMAX Power Connector

The MILBOX-AGXMAX implements 4-pin connector (labeled as "X1") that accepts +12V to +36V DC power. The mating connector type is "D38999/26WC4SN". It is located on the front side.

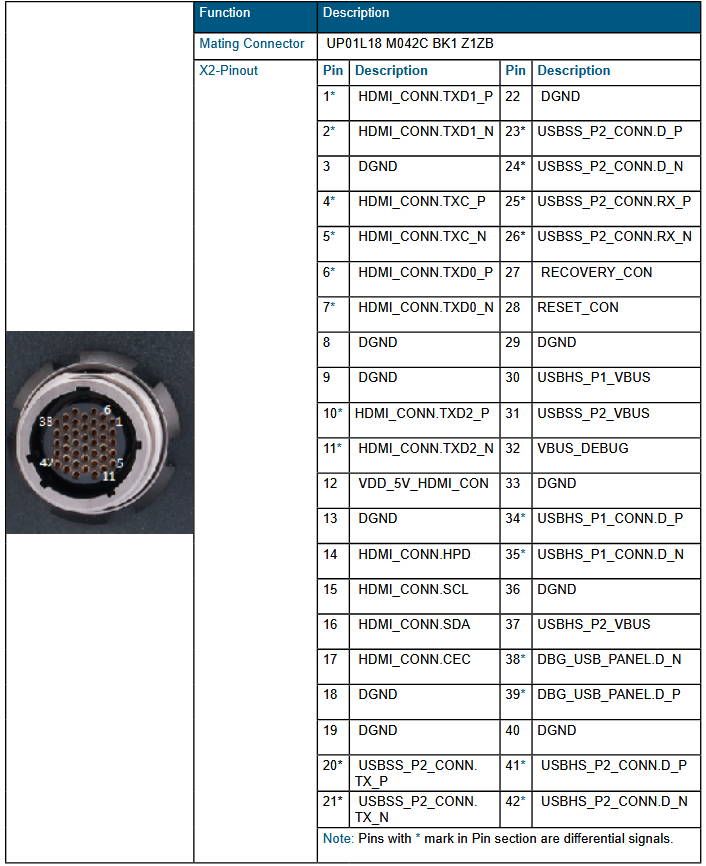

MILBOX-AGXMAX High Speed Connector

The MILBOX-AGXMAX implements 42-pin connector (labeled as "X2") for HDMI, USB interfaces and Reset-Recovery signals (for software installation). The mating connector type is "UP01L18 M042C BK1 Z1ZB". It is located on the front side of the PC.

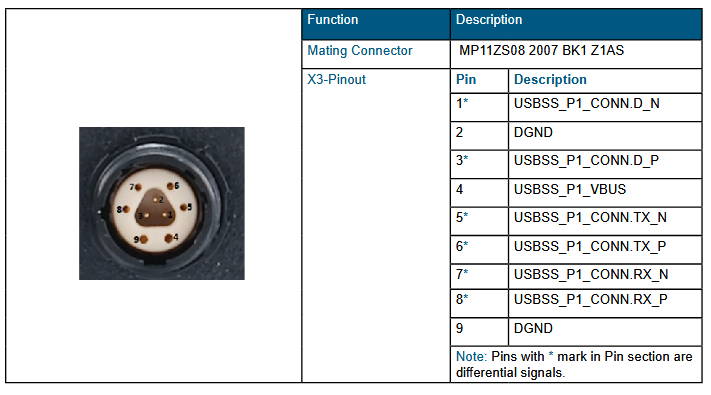

MILBOX-AGXMAX USB-3.2 Connector

The MILBOX-AGXMAX implements 9-pin connector (labeled as "X3") which has USB-3.2 for software installation. The mating connector type is "MP11ZS08 2007 BK1 Z1AS". It is located on the front side of the PC.

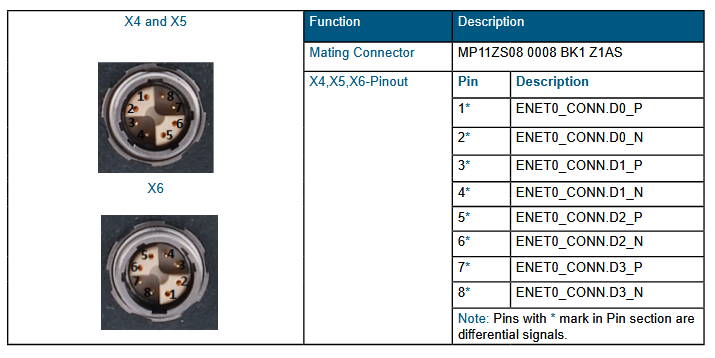

MILBOX-AGXMAX Ethernet Connectors

The MILBOX-AGXMAX implements 3-port Ethernet connectors (labeled as "X4", "X5" and "X6") for internet communication. The mating connector type is "MP11ZS08 0008 BK1 Z1AS". They are located on the front side of the PC.

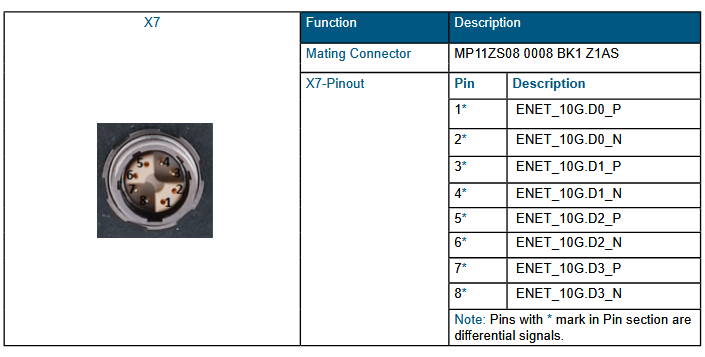

MILBOX-AGXMAX 10G Ethernet Connector

The MILBOX-AGXMAX implements 10G Ethernet connectors (labeled as "X7") for internet communication. The mating connector type is "MP11ZS08 0008 BK1 Z1AS". They are located on the front side of the PC.

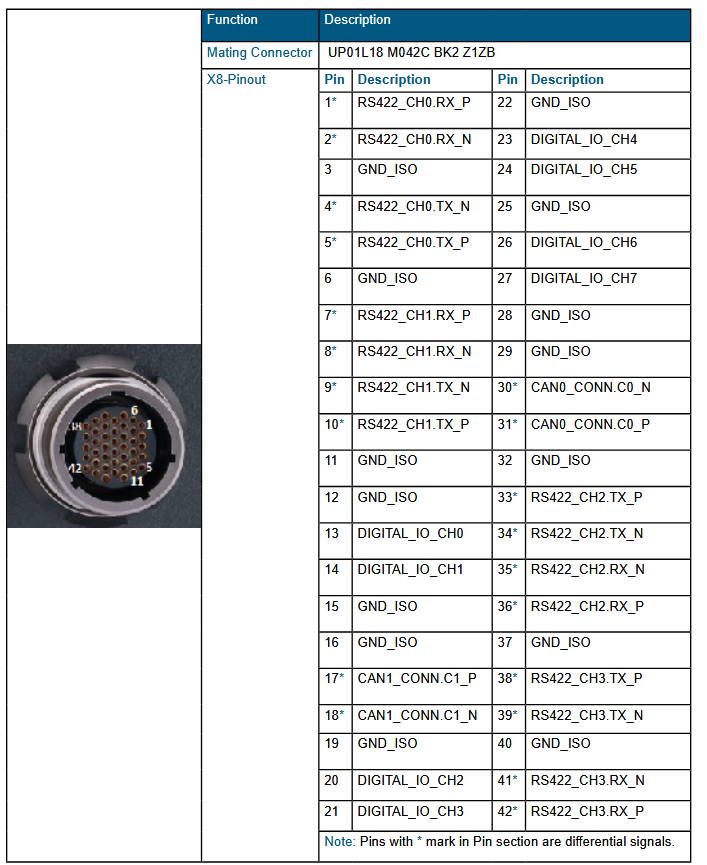

MILBOX-AGXMAX Low Speed Connector

The MILBOX-AGXMAX implements 42-pin connector (labeled as "X8") which has 8 serial (4xRS232 and 4xRS422) and 2 CAN Bus interfaces. It's mating connector type is "UP01L18 M042C BK2 Z1ZB". It is located on the front side of the PC.

MILBOX-AGXMAX Low Speed Connector

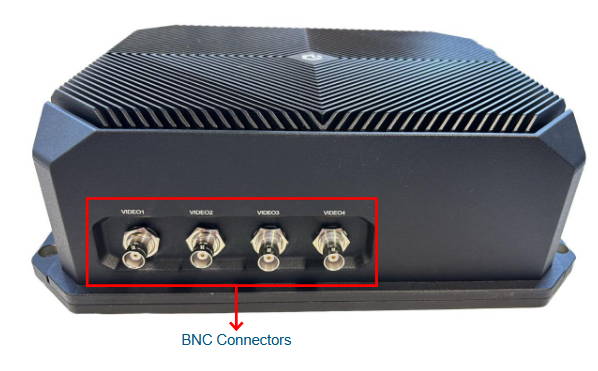

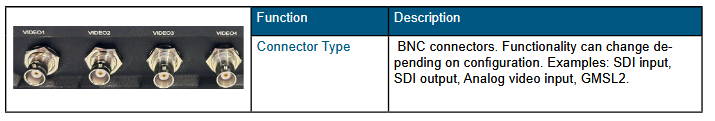

The MILBOX-AGXMAX implements BNC connectors. Functionality can change depending on configuration. Examples: SDI input, SDI output, Analog video input, GMSL2.
