MILBOX-ORNX Overview and Connector Definitions
WHAT YOU WILL LEARN?
1- The basic perspective over MILBOX-ORNX
2- The definitions of each connector
ENVIRONMENT
Hardware: MILBOX-ORNX
Forecr’s MILBOX-ORNX is industrial rugged PC on Nvidia Jetson Orin processor modules for edge analytics. It is compatible with multi stream deep learning applications.

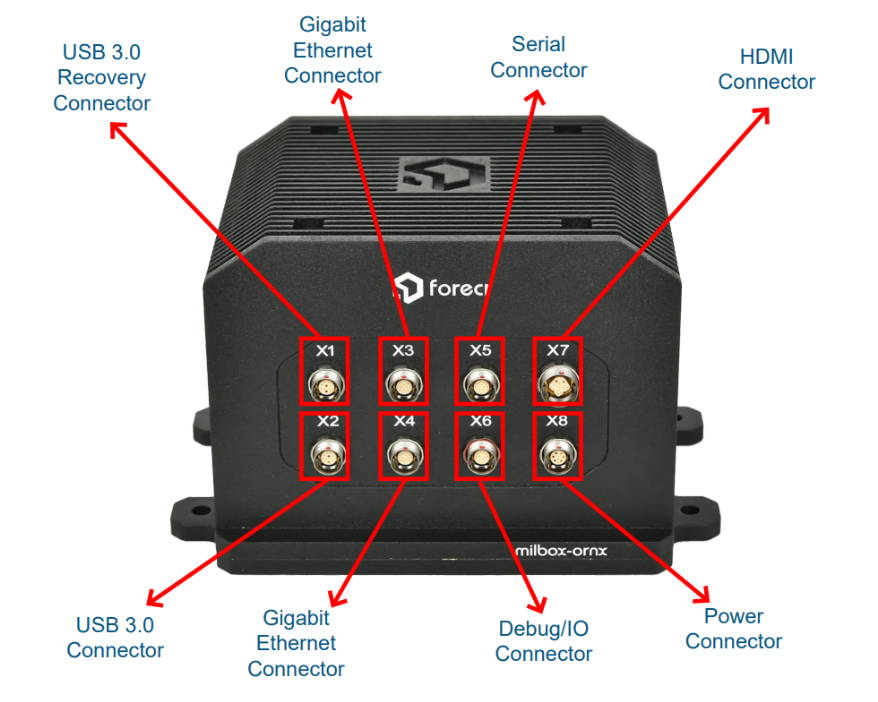

The Basic Perspective over MILBOX-ORNX
Technical Specifications
NVIDIA Jetson Orin NX-Nano SoM option
2x Gigabit Ethernet
2x RS-232/422/485
1x RS-232 (Debug)
2x CAN BUS
1x SIM
Camera Expansion Connector
1x M.2 Key-M 2230
9-40 VDC (28 VDC Nominal)
OS: Ubuntu Linux 20.04 / 22.04
Dimensions (LxWxH): 180.50mm x 131mm x 111mm, 1900 gr

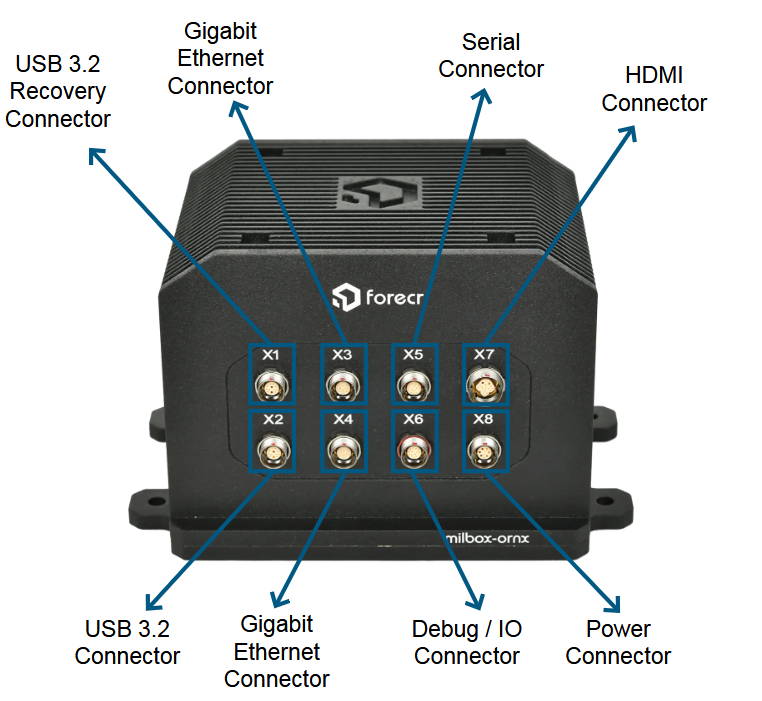

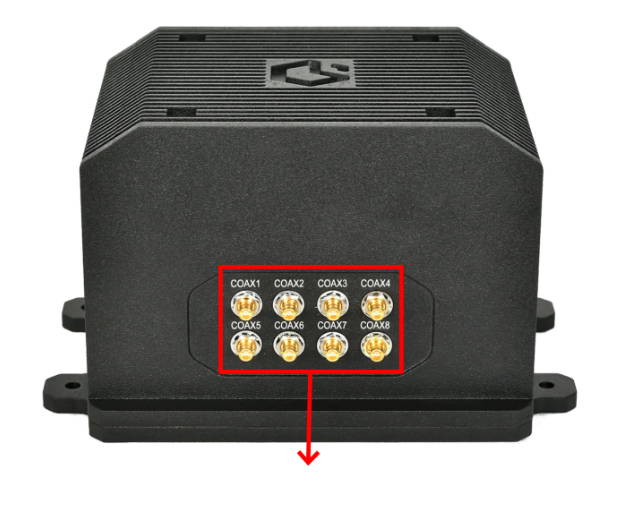

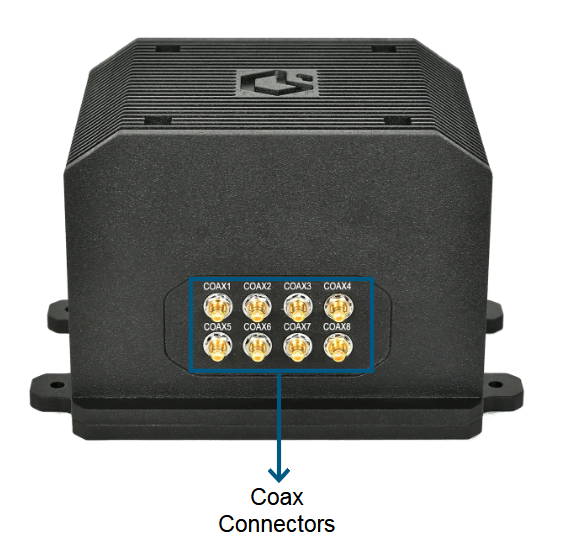

The Definition of Each Connector

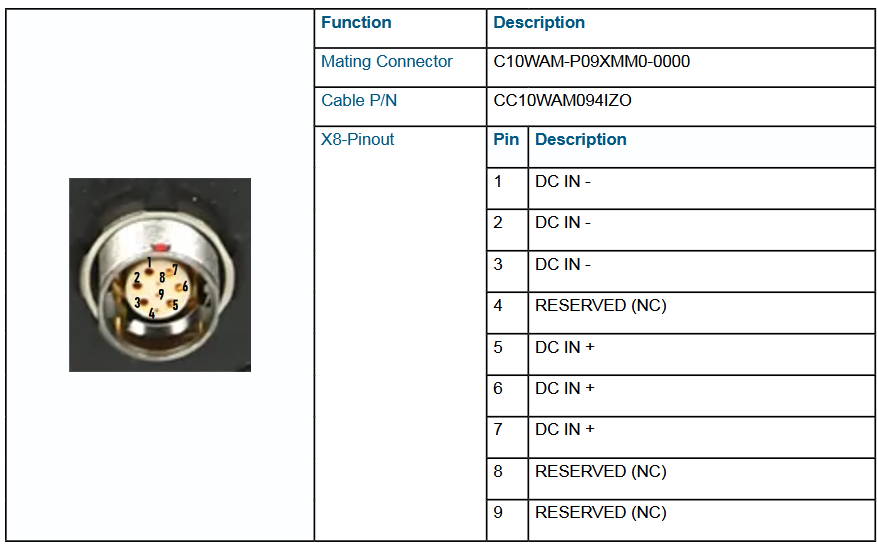

MILBOX-ORNX Power Connector

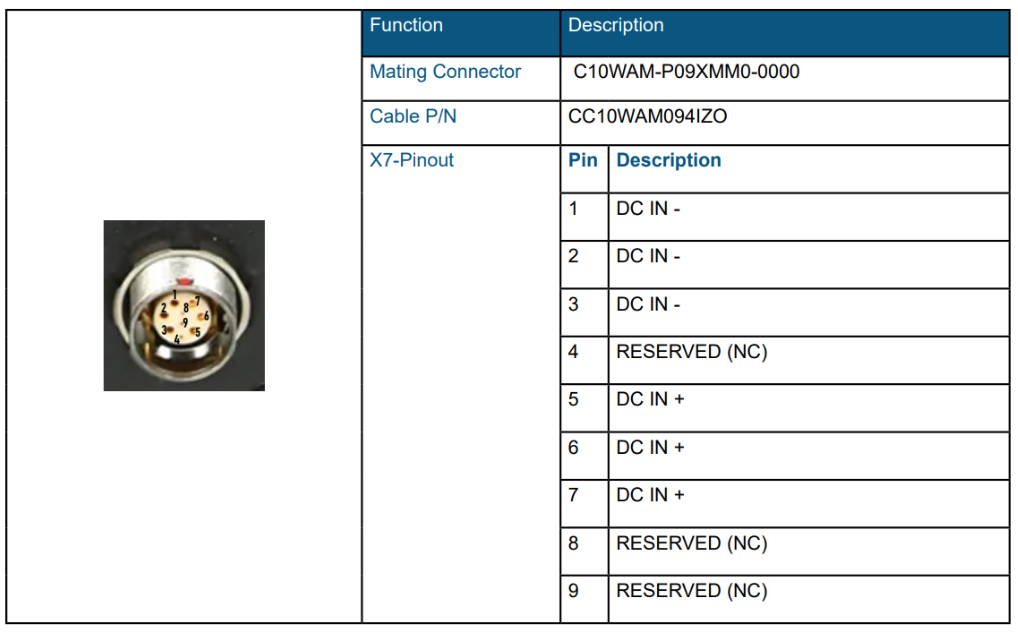

The MILBOX-ORNX implements 9-pin power connector (labeled as "X8") that accepts +9V to +40V DC power. The connector type is "GC0WAM-P09UM00-000L" produced by Amphenol NEXUS Technologies. It is located on the front side of the PC.

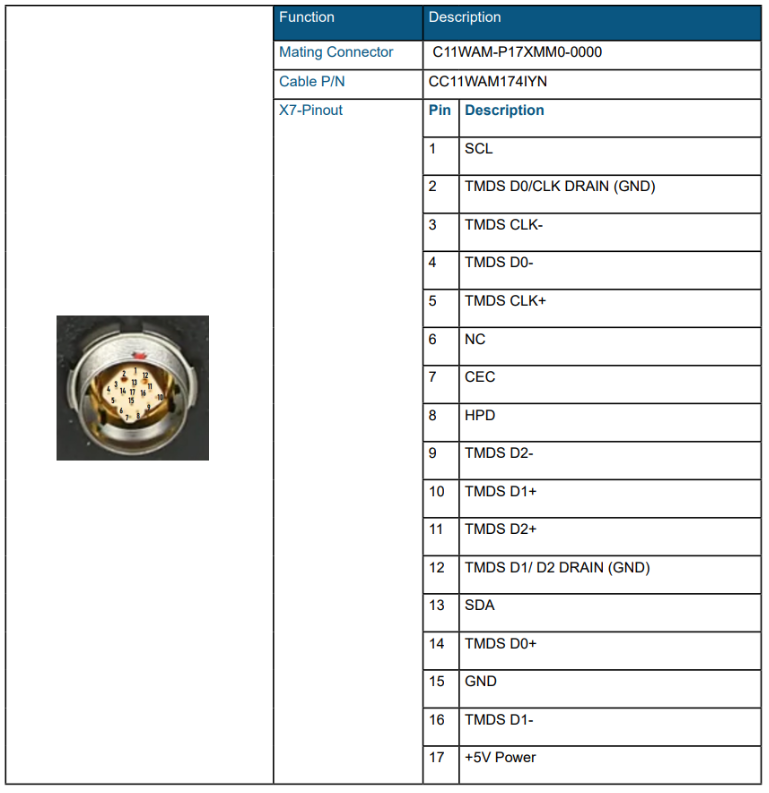

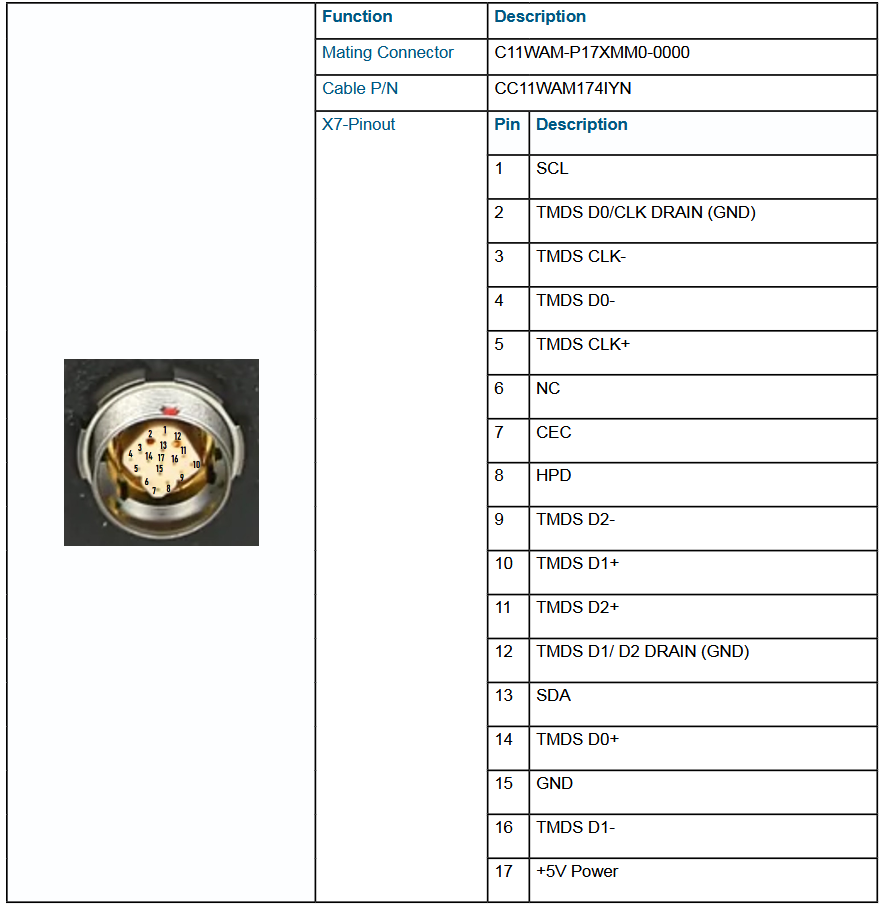

MILBOX-ORNX HDMI Connector
The MILBOX-ORNX implements 17-pin HDMI connector (labeled as "X7") that is HDMI 2.0 capable. The connector type is "GC1WAM-P17UM00-000L" produced by ODU. It is located on the front side of the PC.

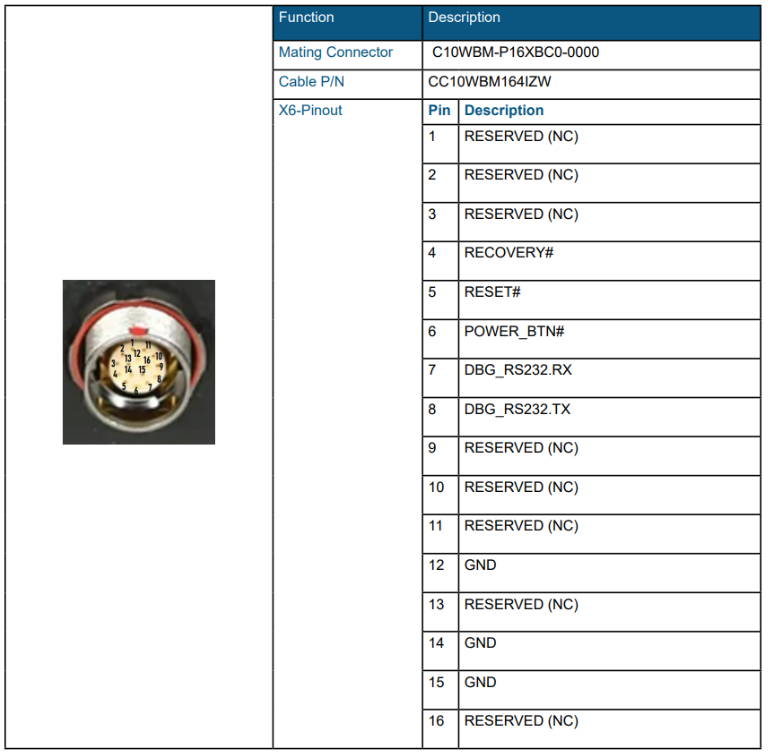

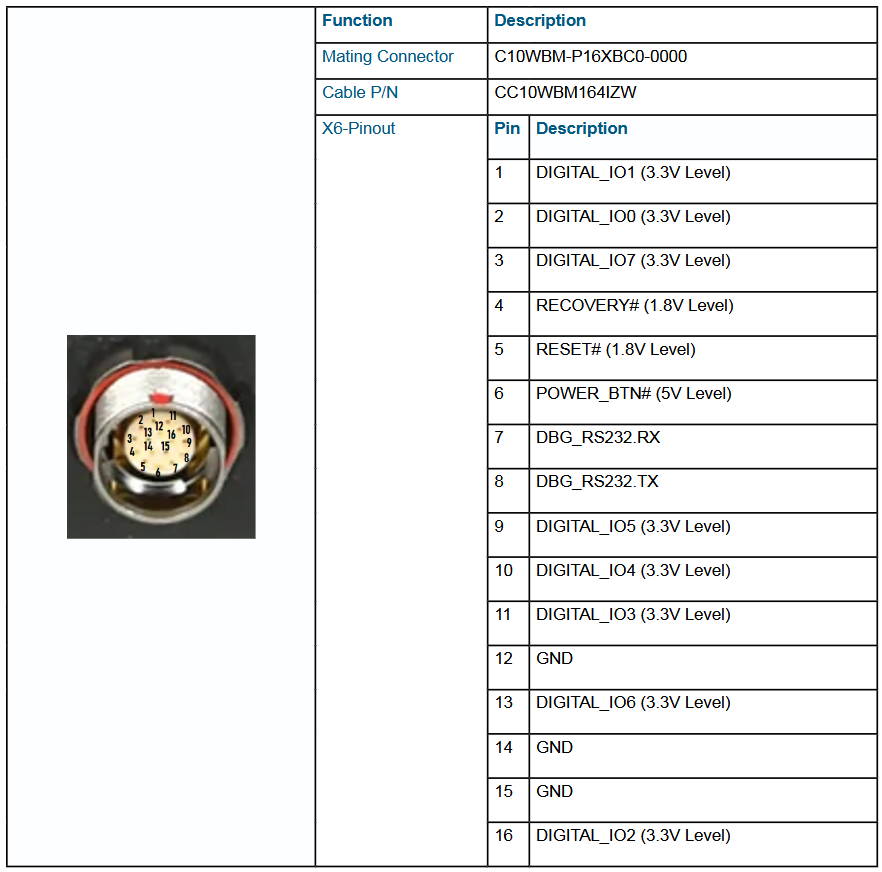

MILBOX-ORNX DEBUG & IO Connector
The MILBOX-ORNX implements 16-pin Debug & IO connector (labeled as "X6") which has 2 Debug, 1 Recovery, 1 Reset, 1 Power Button and 3 ground pins. It's connector type is "GC0WBM-P16UB00-000L" produced by ODU. It is located on the front side of the PC.

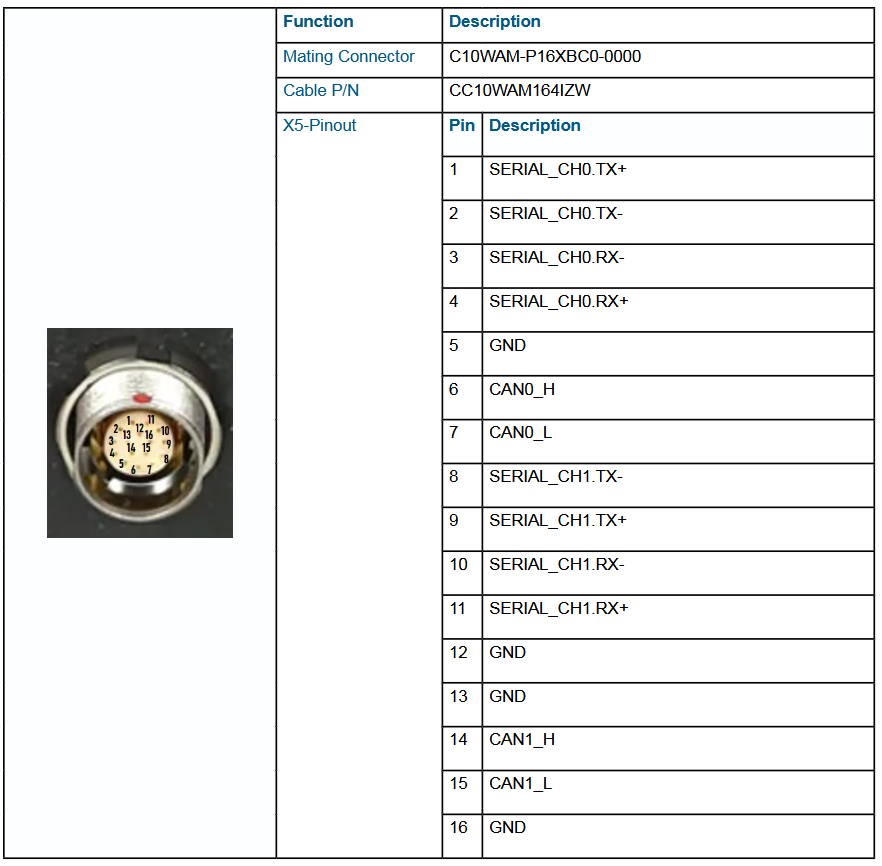

MILBOX-ORNX Serial Communication Connector

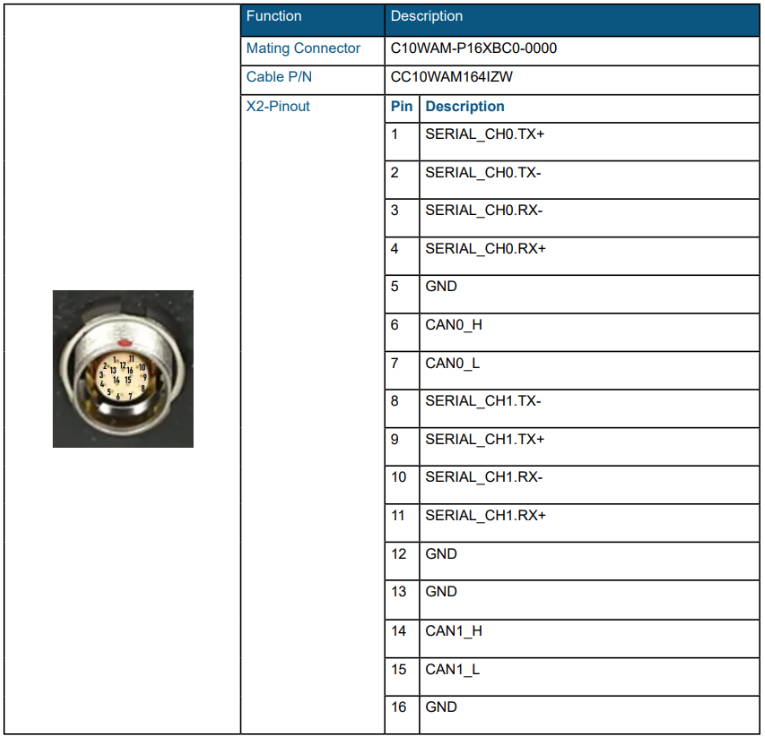

The MILBOX-ORNX implements 16-pin serial communication connector (labeledas "X5") which has 8 serial, 4 CAN Bus and 4 ground pins. Bothserial communications can be configurable for RS232, RS422 or RS485protocols independently. It's connector type is "GC0WAM-P16UB00-000L" produced by ODU. It is located on the front side of the PC.

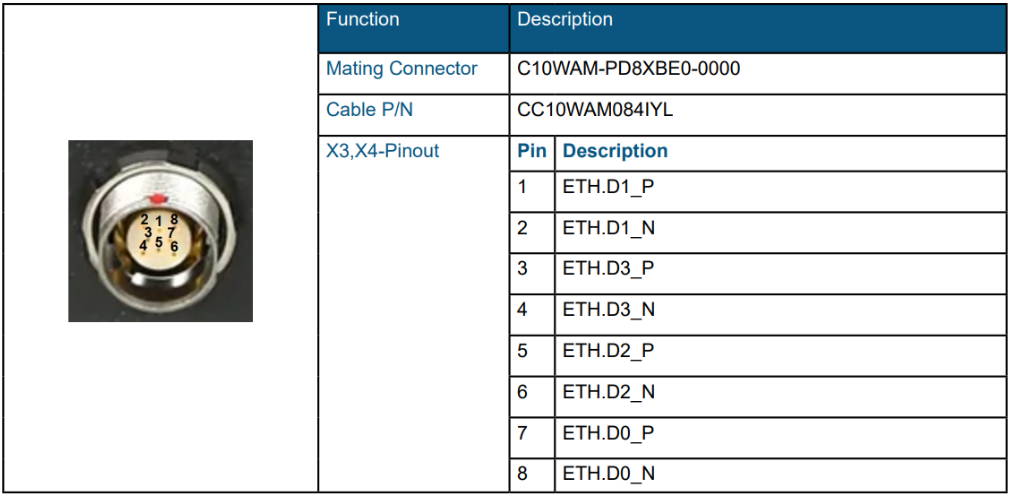

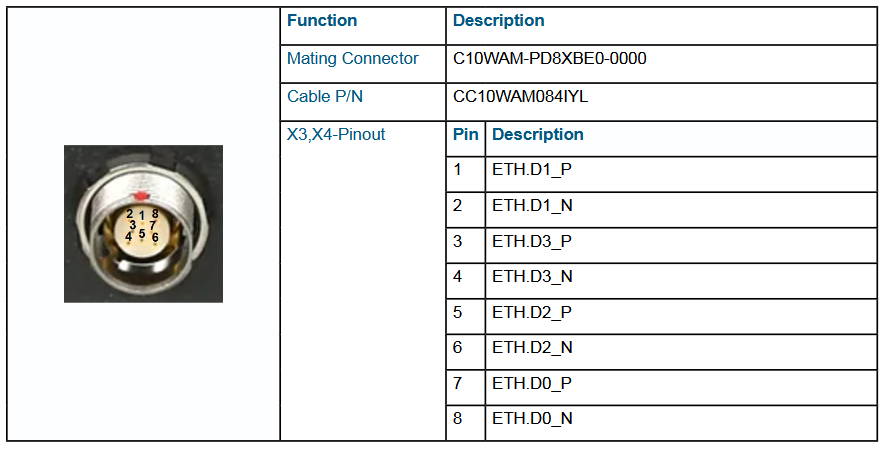

MILBOX-ORNX Gigabit Ethernet Connectors
The MILBOX-ORNX implements 2 port Ethernet connectors (labeled as "X3" and "X4") for internet communication. The connector type is "GC0WAM-PD8UB00-000L" produced by ODU. They are located on the front side of the PC.

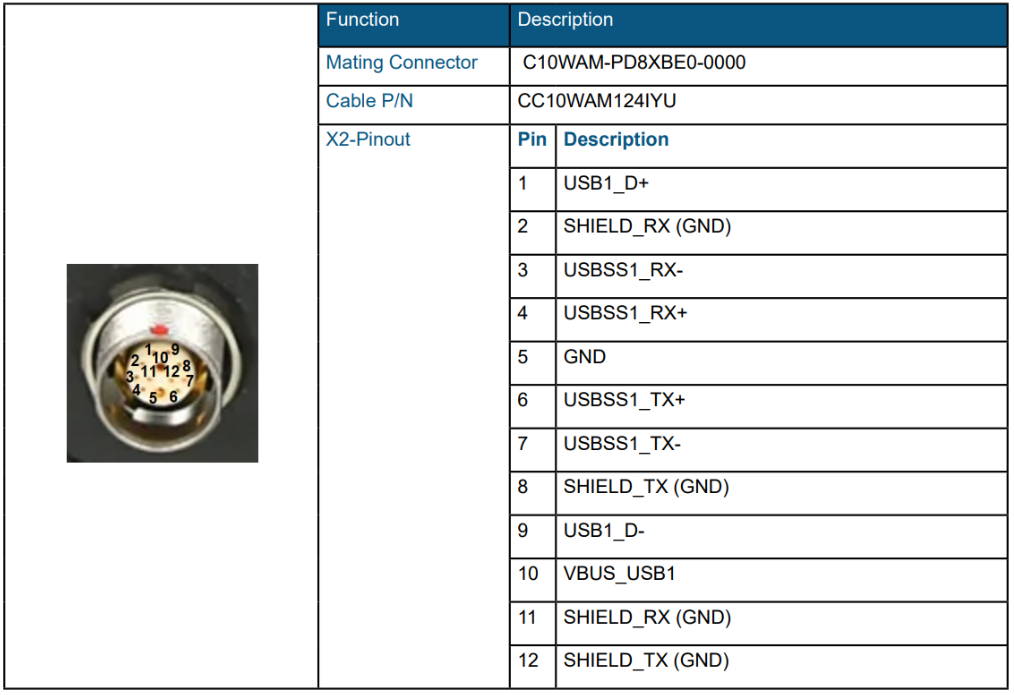

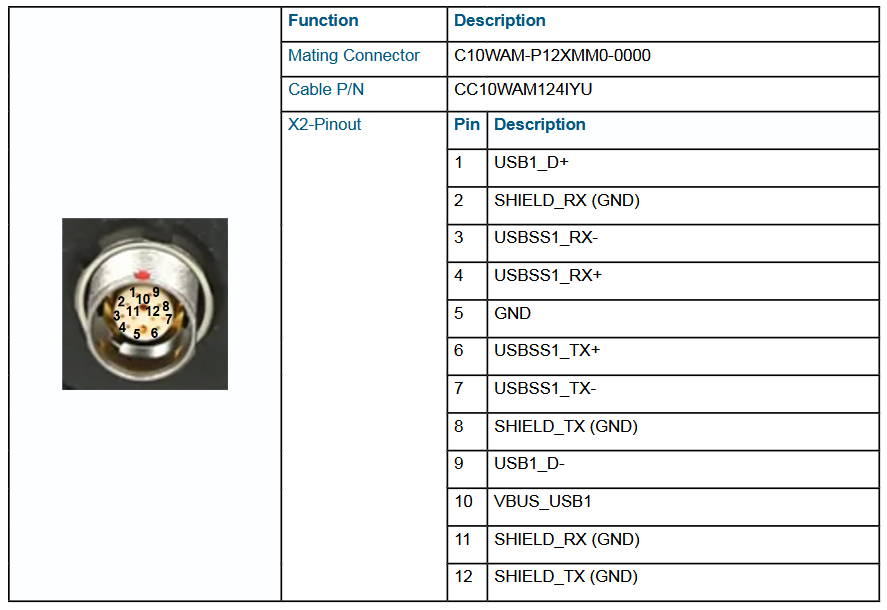

MILBOX-ORNX USB 3.0 Connector
The MILBOX-ORNX implements 12-pin USB 3.0 connector (labeled as "X2"). The connector type is "GC0WAM-P12UM00-000L" produced by ODU. It is located on the front side of the PC.

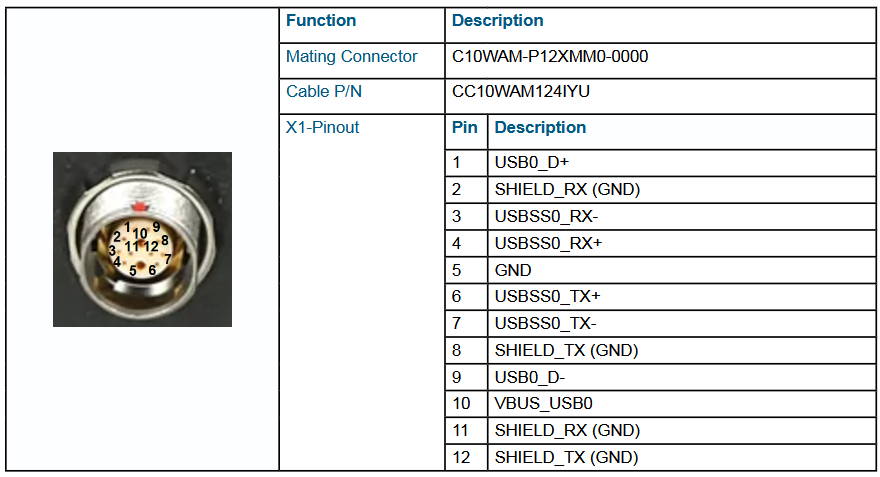

MILBOX-ORNX USB 3.0 Recovery Connector

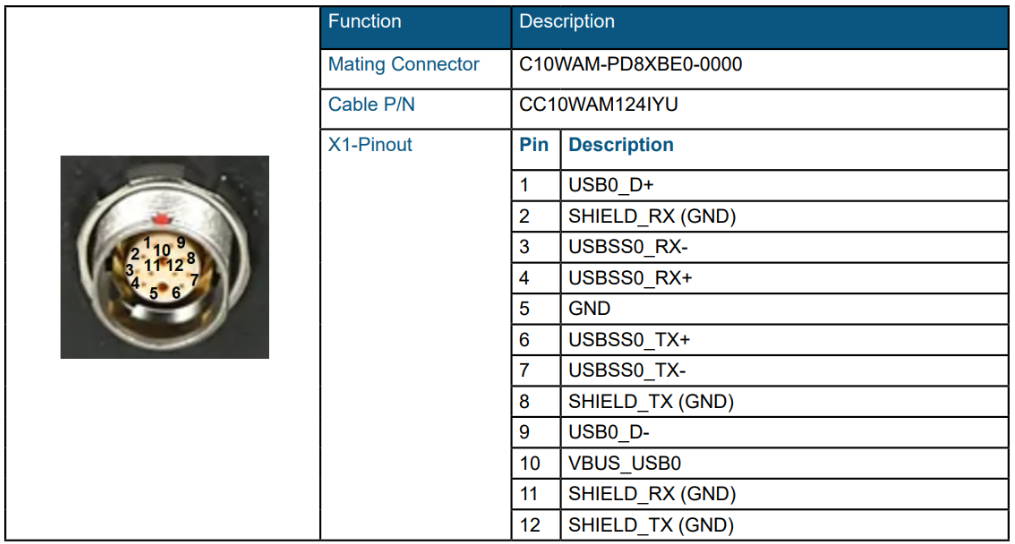

The MILBOX-ORNX implements 12-pin USB 3.0 Recovery connector (labeled as "X1") to allow to install or upgrade the operating system. The connector type is "GC0WAM-P12UM00-000L" produced by ODU. It is located on the front side of the PC.
