The MILBOX-THR is a military-grade Edge AI computer powered by the latest NVIDIA Jetson AGX Thor SoM, delivering unprecedented AI performance and reliability in the harshest environments.

Technical Specifications

Supported Modules

NVIDIA Jetson T4000
NVIDIA Jetson T5000

Memory

128 GB 256-bit LPDDR5X

Graphics Interfaces
2x HDMI2/0 Display Output
2x 3G-SDI Display Output
2x 3G-SDI Video Input

Interfaces
4x 10G Ethernet (Copper)
3x USB3.1
4x CAN FD (Isolated)
4x RS-232/422/485 (Isolated)
8x Digital I/O (3.3V Level, Isolated)
TPM2.0 Chipset
6-Axis IMU & Temperature Sensor
EEPROM

Wireless Communication

None

Power Supply 11-60 VDC

Extension Sockets
1x M.2 Key-M 2280 PCIe Gen4 x4 (used for 2x
3G-SDI Video Input by default)
1x M.2 Key-M 2280 PCIe Gen4 x2
1x M.2 Key-M 2280 PCIe Gen4 x1
Camera Expansion Slot (for optional Analog
Video Input or GMSL2 features)

Mass Storage Up to three NVMe SSD support
Ambient Conditions -25°C ... +70°C
Form Factor / Dimensions 30cm x 24cm x 10cm, 5500gr (Not finalized, subject to change)
Operating Systems Ubuntu Linux 24.04
Operating Humidity 5% - 95% (Non-Condensing)

Standards (Designed to Meet) MIL-STD-810G, MIL-STD-461G, MIL-STD-704F,
MIL-STD-1275E, DO-160G

JetPack Support

JetPack 7.0

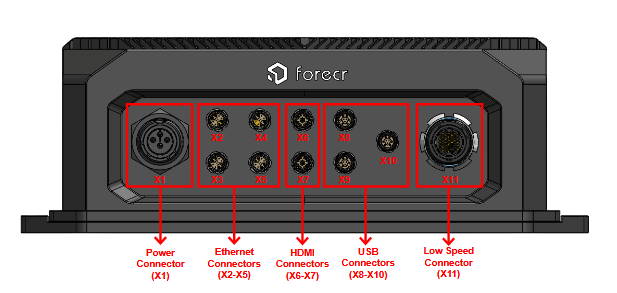

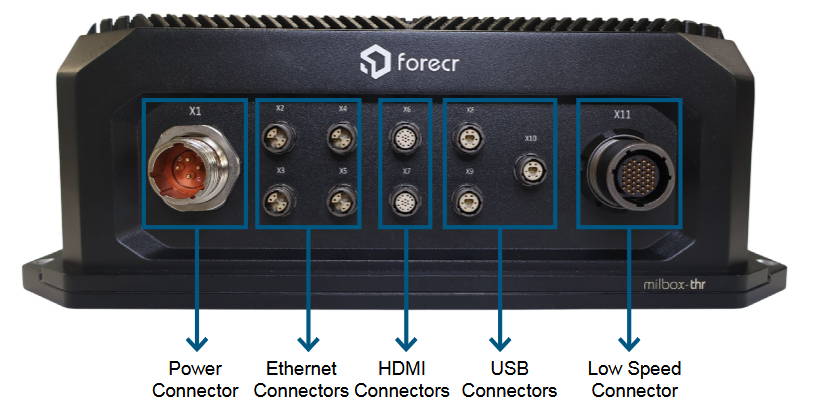

MILBOX-THR Power Connector

The MILBOX-THR implements 4-pin connector (labeled as "X1") that accepts +18V to +36V DC power. The mating connector type is "D38999/26WC4SN".

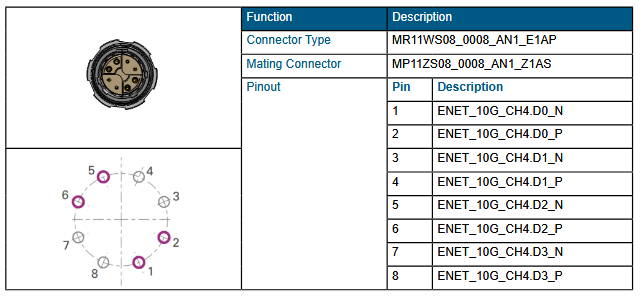

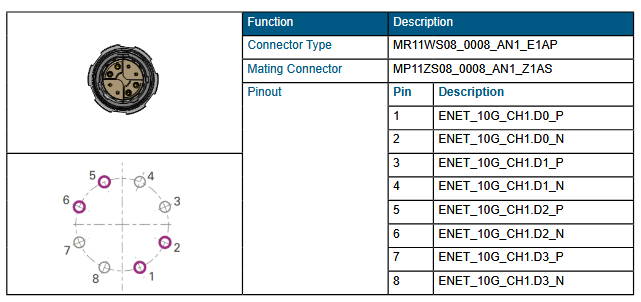

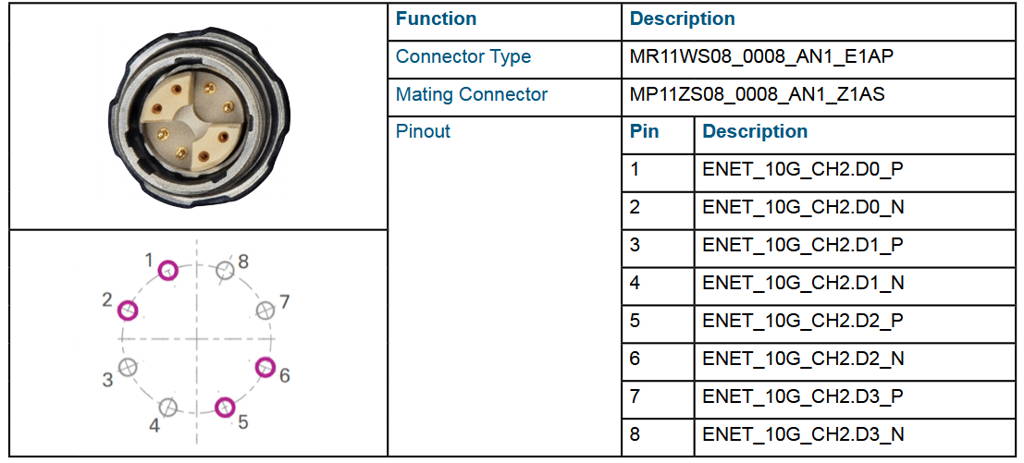

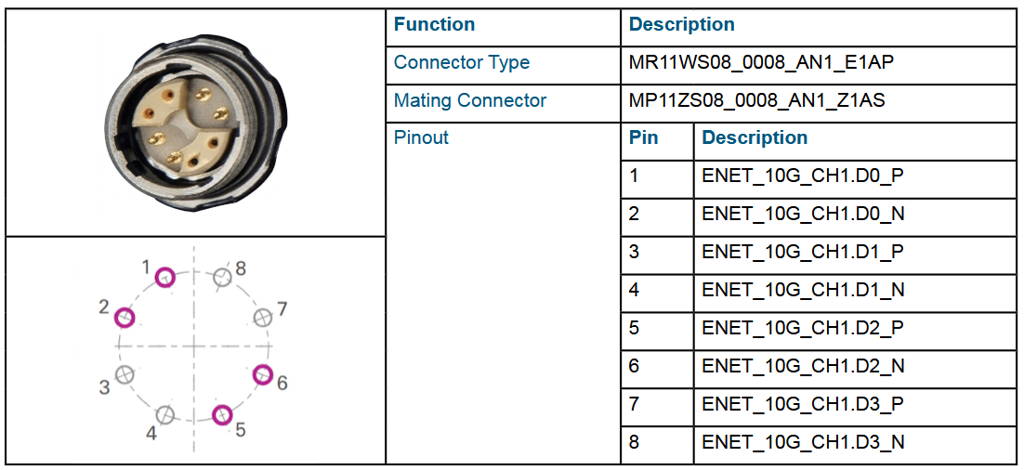

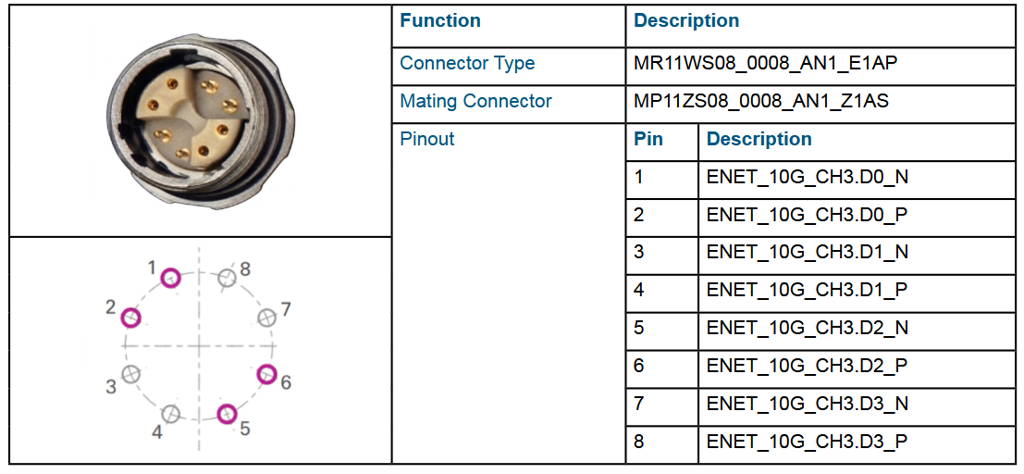

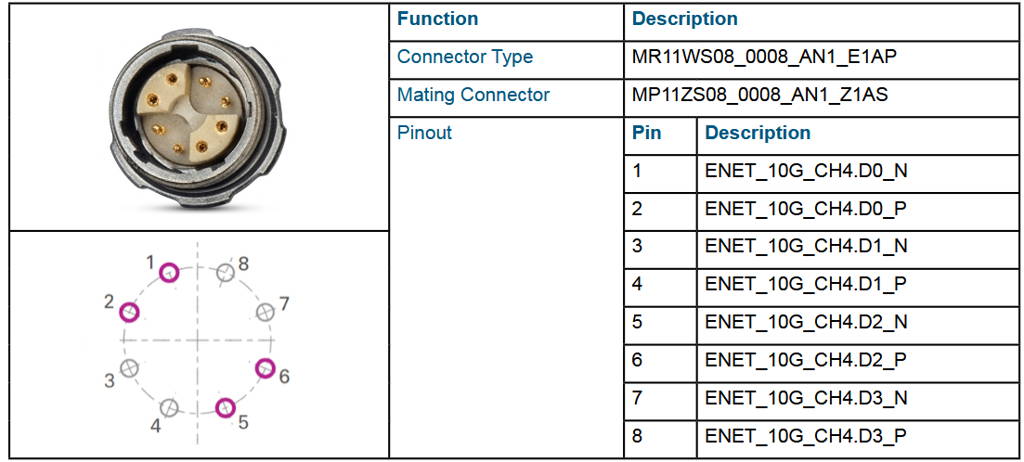

MILBOX-THR Ethernet Connector X2-X5

The MILBOX-THR implements 8-pin connector (labeled as "X2-X5") for ethernet. The connector type is "MR11WS08_0008_AN1_E1AP". The mating connector type is "MP11ZS08_0008_AN1_Z1AS".

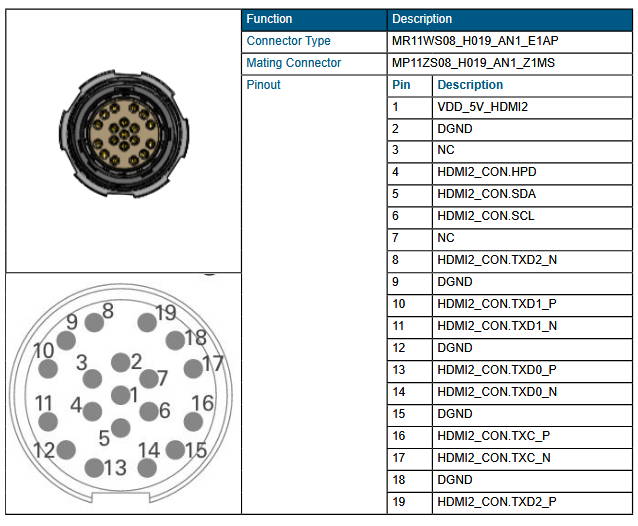

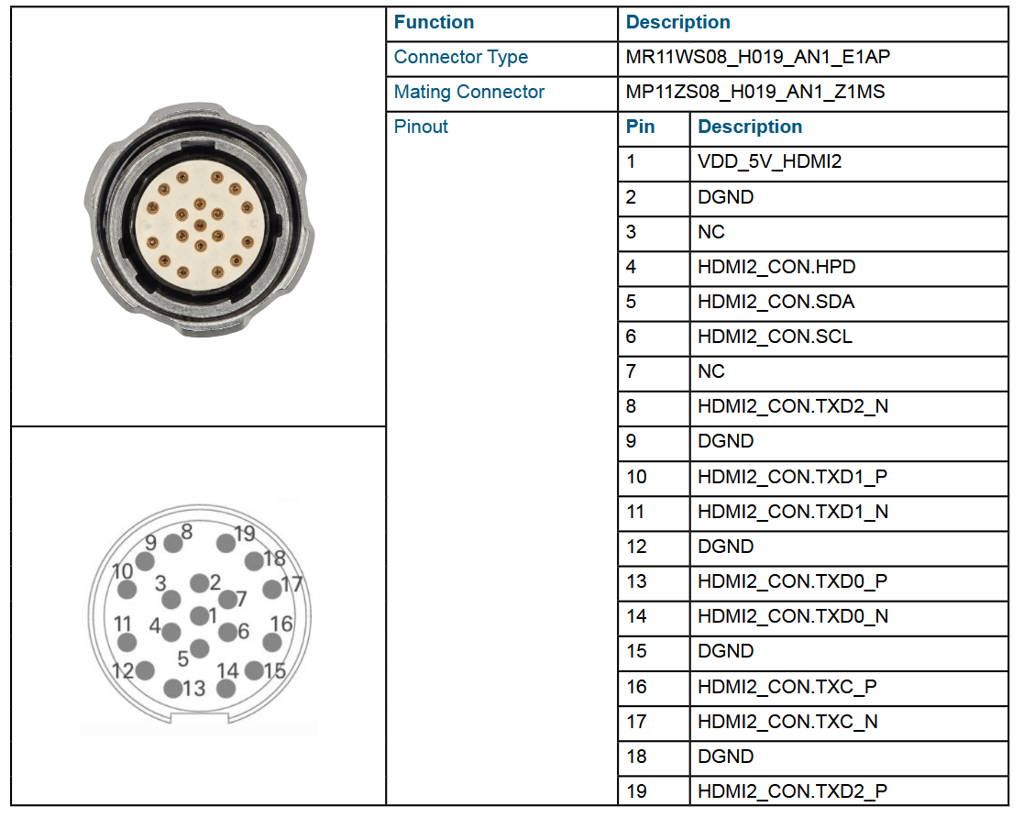

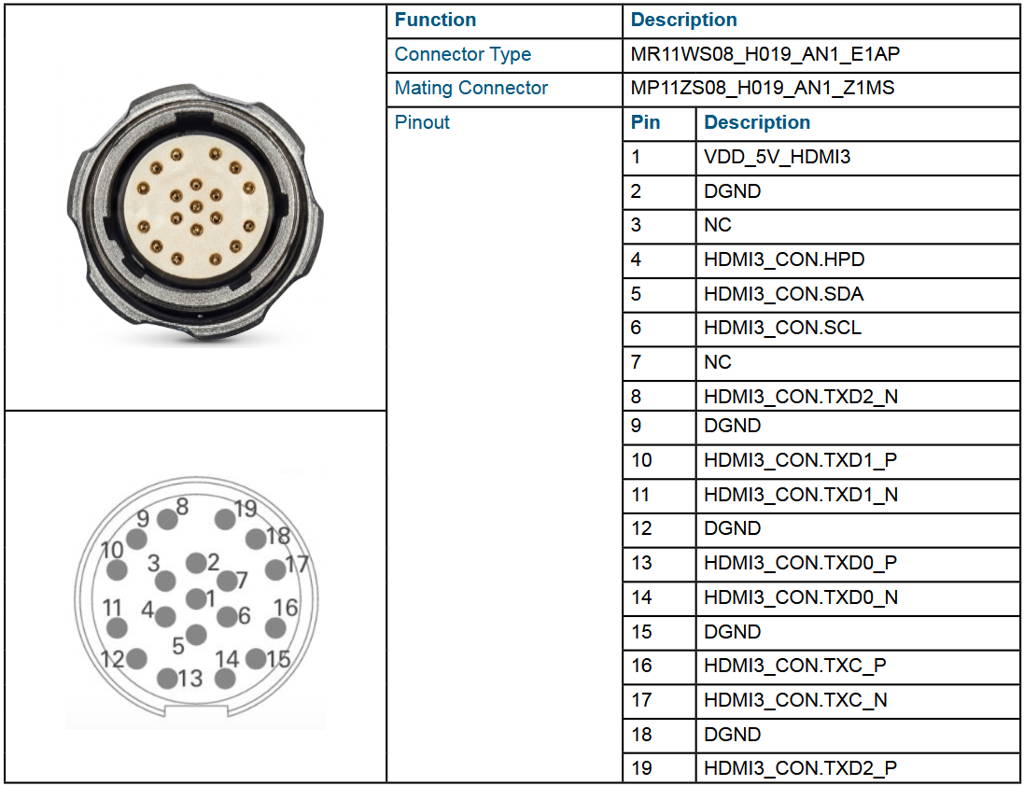

MILBOX-THR HDMI Connectors

The MILBOX-THR implements 19-pin connector (labeled as "X6 and X7") for HDMI. The connector type is "MR11WS08_H019_AN1_E1AP". The mating connector type is "MP11ZS08_H019_AN1_Z1MS".

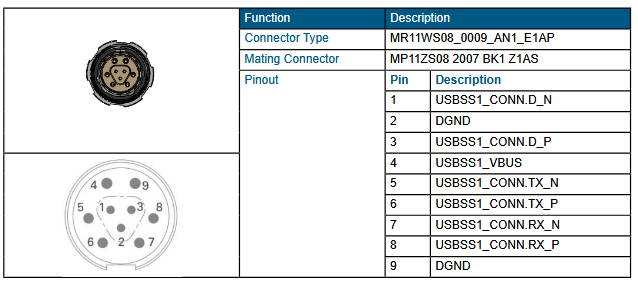

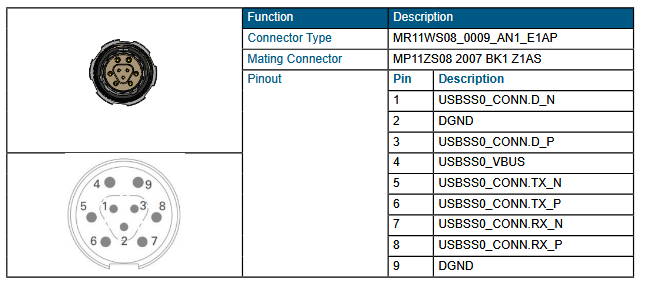

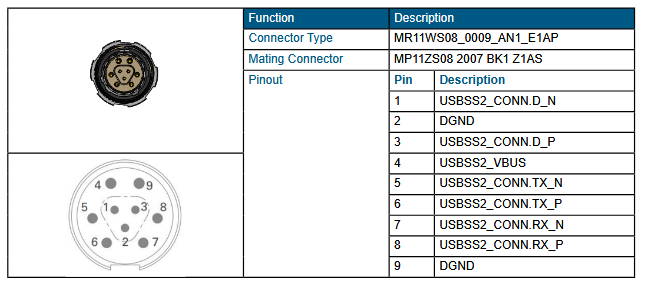

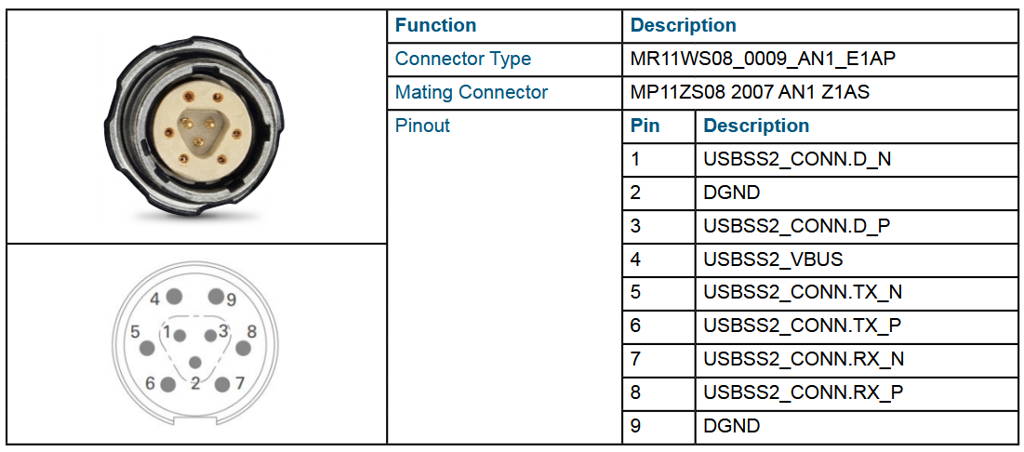

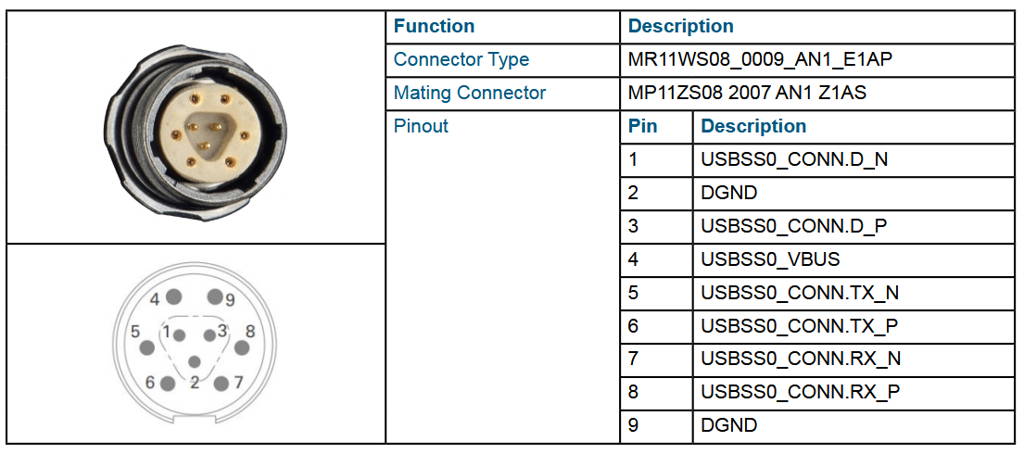

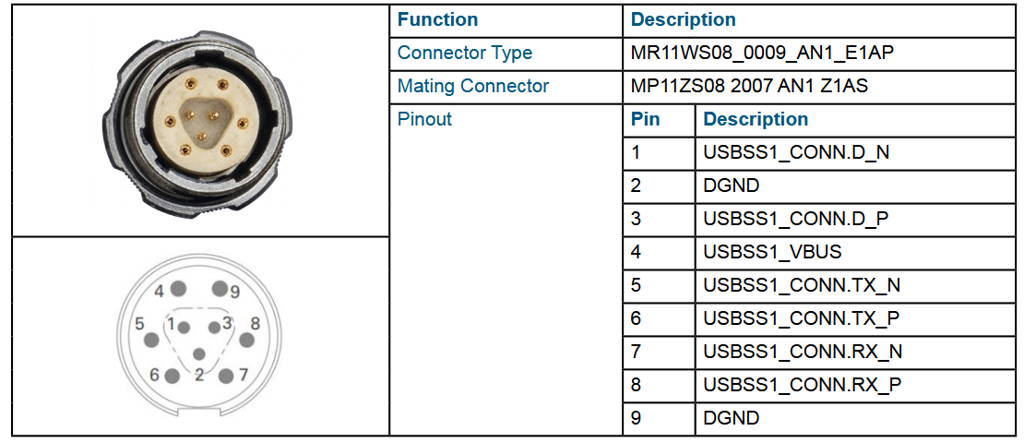

MILBOX-THR USB Connectors

The MILBOX-THR implements 9-pin USB connectors (labeled as "X8", "X9" and "X10"). The connector type is "MR11WS08_0009_AN1_E1AP". The mating connector type is "MP11ZS08 2007 BK1 Z1AS".

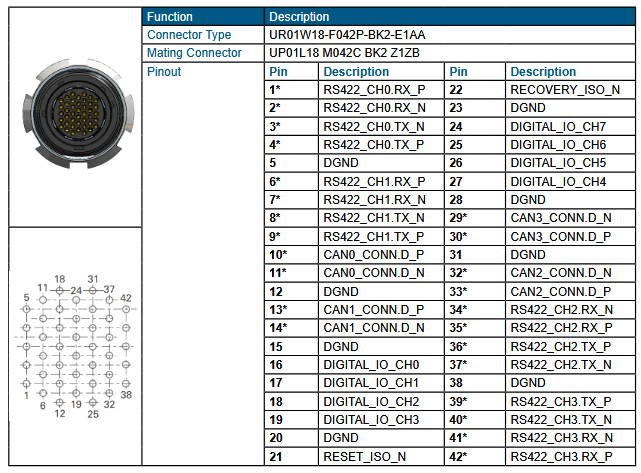

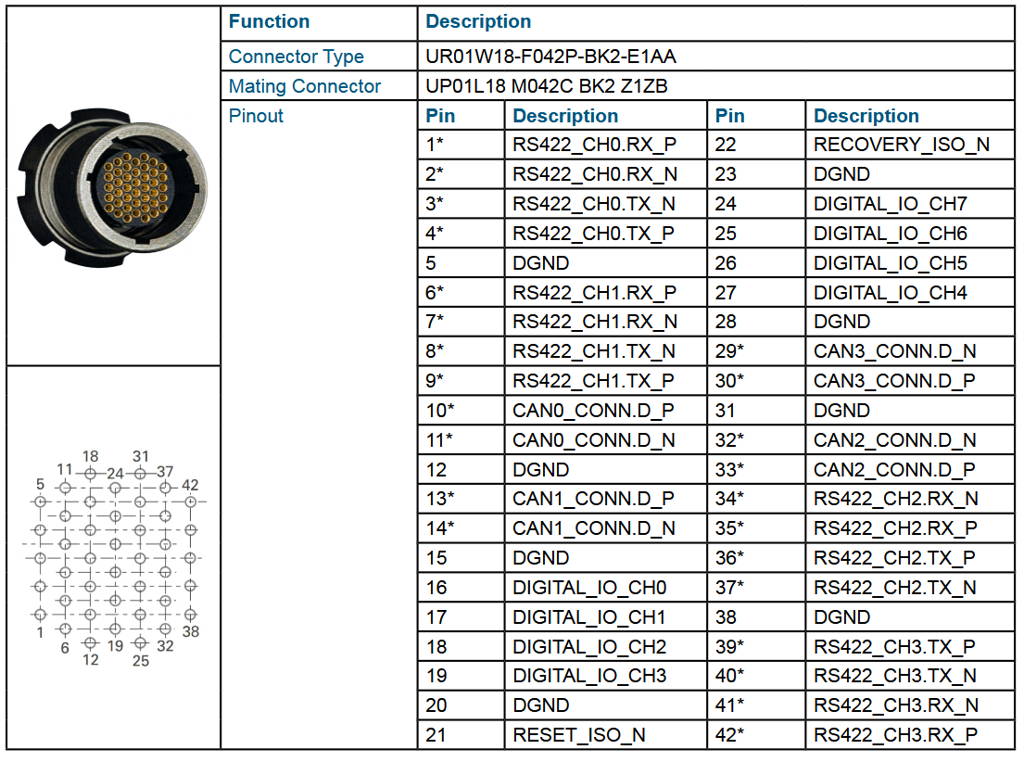

MILBOX-THR High Speed Connector

The MILBOX-THR implements 42-pin connector (labeled as "X8") which has 8 serial (4xRS232/422/485) and 4 CAN Bus interfaces. The connector type is "UR01W18-F042P-BK2-E1AA". It's mating connector type is "UP01L18 M042C BK2 Z1ZB".

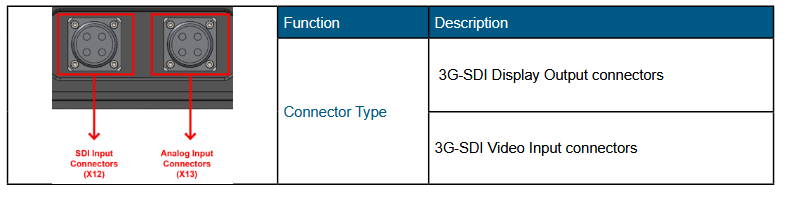

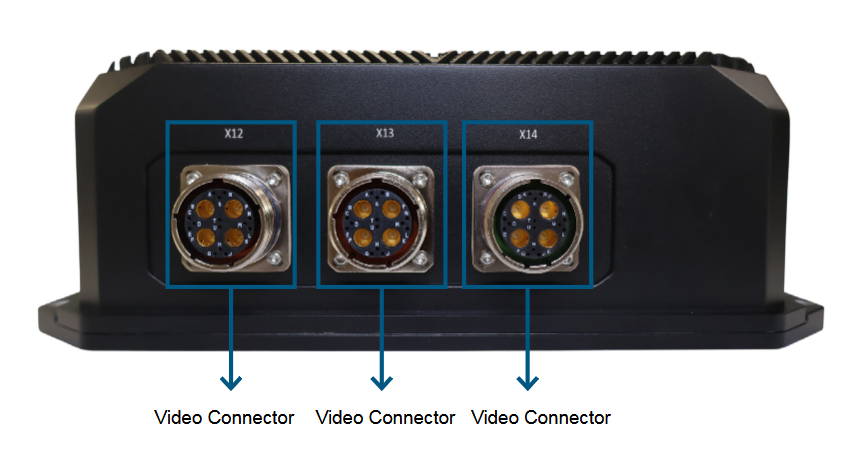

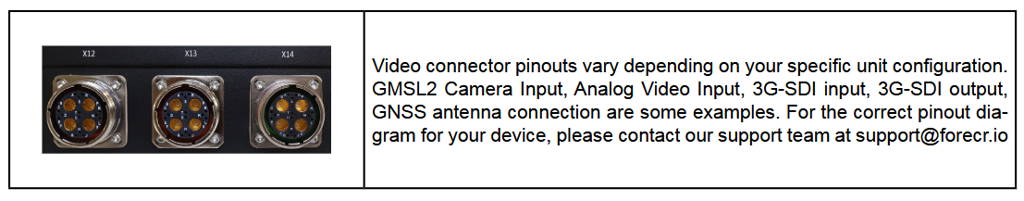

MILBOX-THR 3G-SDI Display and Video Connectors

The MILBOX-THR implements 3G-SDI display output and video input connectors.
