DSBOARD-ORNXS Getting Started

WHAT YOU WILL LEARN?

1- Overview of DSBOARD-ORNXS
2- Power Socket & Polarization
3- Jetpack Installation and Interface Guide

ENVIRONMENT

Hardware: DSBOARD-ORNXS

DSBOARD-ORNXS is industrial carrier board for NVIDIA Jetson Orin NX & Orin Nano SoM modules. We will explain how to get started with DSBOARD-ORNXS on this blogpost.

Overview of DSBOARD-ORNXS

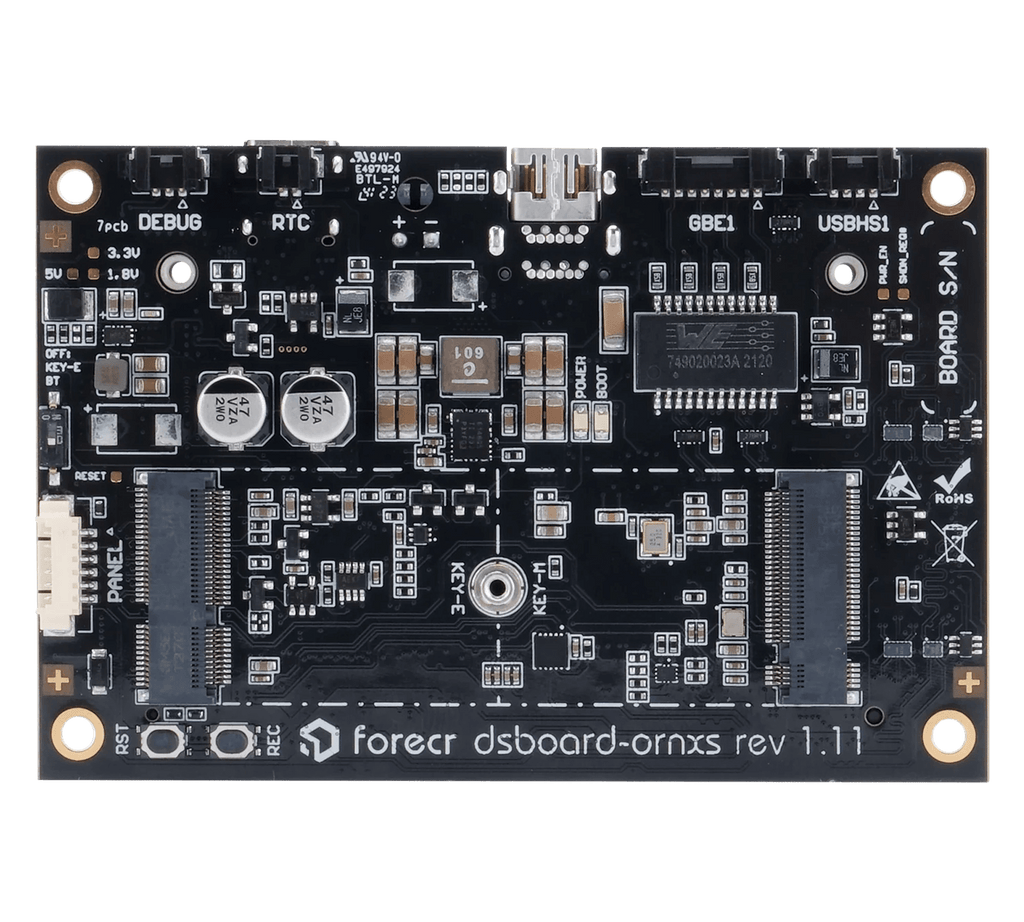

You can see the top view of DSBOARD-ORNXS.

Before you plug in DC power cable, you should plug in Ethernet cable, keyboard and mouse USB cables to USB ports, DisplayPort cable to the mini DisplayPort socket for monitoring the system and the Jetson Orin™ NX or Orin Nano™ module to its socket.

Power Socket & Polarization

After connections are done, you can plug in the DC power cable to "DC IN" socket. The DC Power Source should be in the range of 9-28 Volt DC. You can find the DC Power socket when you open the package of the product.

You can see the power connector pinout below. The first pin is negative, second one is positive.

JetPack Installation & Interface Guide

After you energize the board, the system runs. The industrial box pc has preinstalled operating system (Ubuntu 20.04). When the Ubuntu Desktop show up, you will need to user name and password. Both the user name and the password are "nvidia".

If you would like to view the definition of each connector, please click here.

If you would like to upgrade or downgrade the software version, please click here.

If you would like to use CANBus interface, please click here.

Thank you for reading our blog post.
