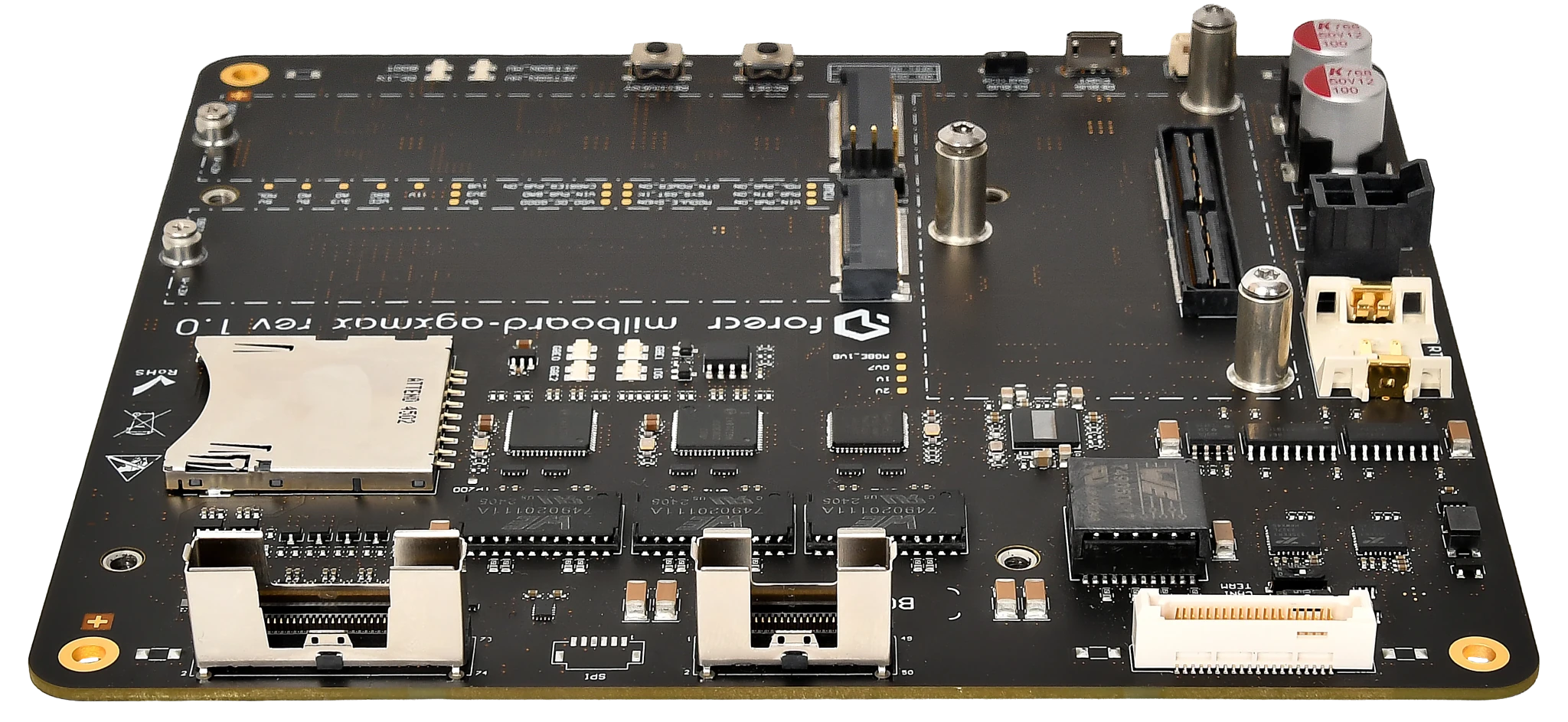

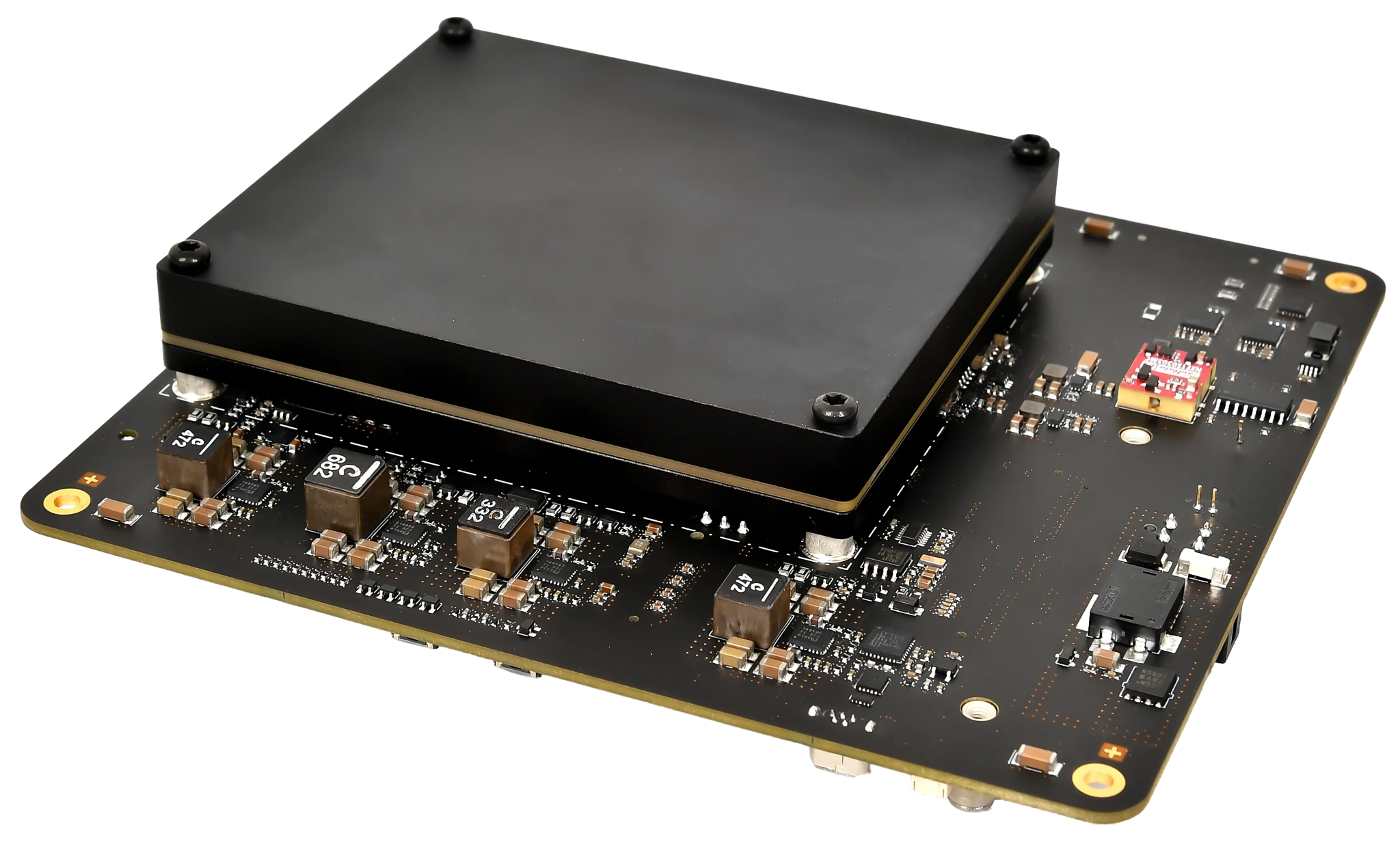

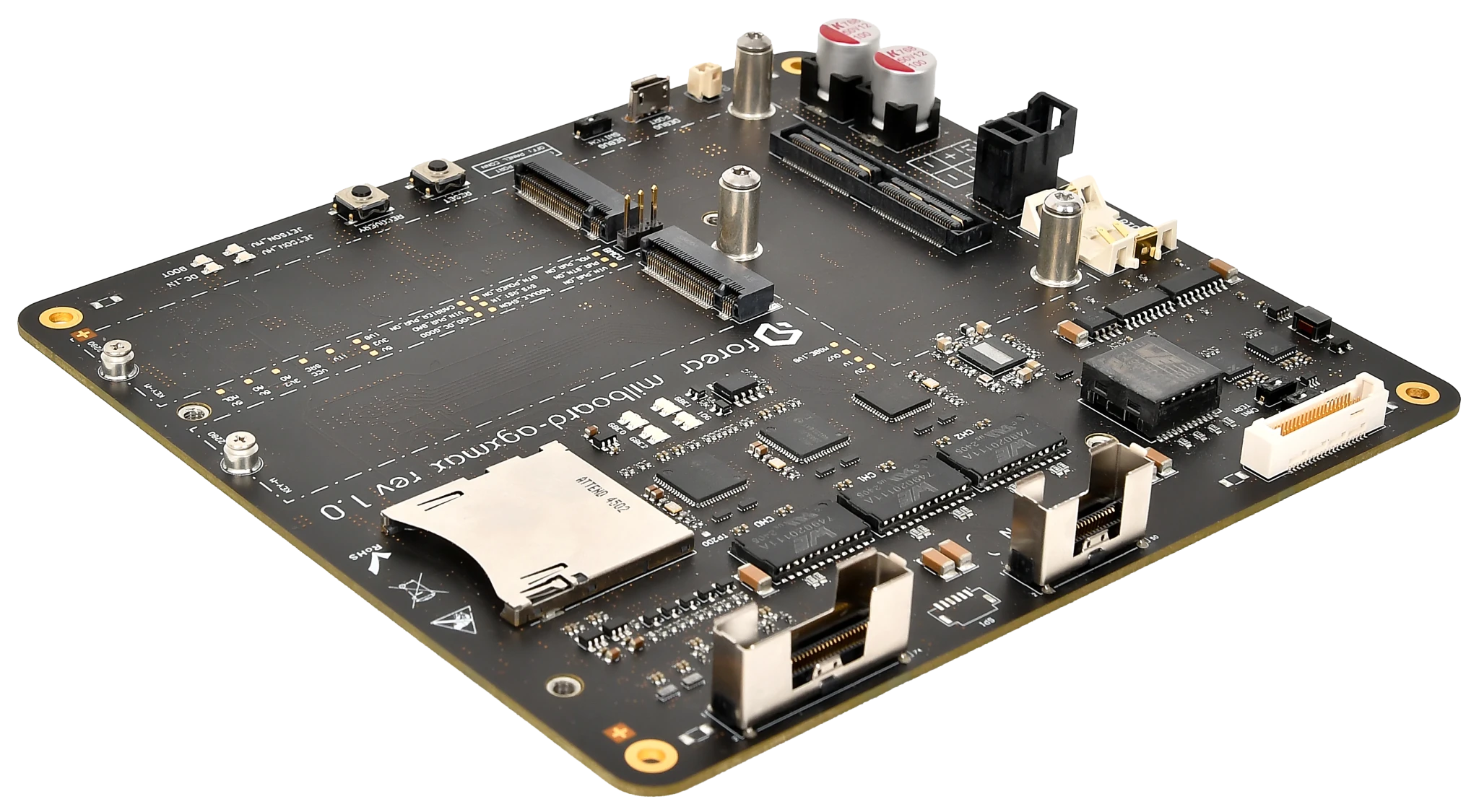

Military grade carrier board MILBOARD-AGXMAX

NVIDIA® Jetson AGX Orin™ Carrier Board with 10G Ethernet - MILBOARD-AGXMAX

MILBOARD-AGXMAX is a robust MIL-grade carrier board engineered to unlock the full potential of the NVIDIA Jetson AGX Orin platform in mission-critical edge AI applications. Designed for extreme performance and durability. its rugged design stands out.

Supports NVIDIA Jetson AGX Orin SOM Family
Supercomputer level performance for military applications
6-axis IMU and temperature sensor
Equipped with 1× 10G Ethernet + 3× Gigabit Ethernet
Withstands dust. moisture. shock with rugged design
Made in Europe

€1.575,00

SOM Option:

Industrial SSD:

Video Input:

Variant

Documents & Models

Datasheet

User Manual

3D Model

JetPack 6.x Installation

Connector Definitions

Getting Started Guide

Availability and Shipping

Please get in touch with our team to ensure availability and shipping options.

TECHNICAL SPECIFICATIONS

MIL-GRADE AGX ORIN CARRIER BOARD WITH 10G ETHERNET

The MILBOARD-AGXMAX is a robust, MIL-grade carrier board engineered to unlock the full potential of the NVIDIA Jetson AGX Orin platform in mission-critical edge AI applications. Designed for extreme performance and durability, it delivers high-bandwidth connectivity with 10G Ethernet, multi-camera support, isolated industrial interfaces, and wide power input flexibility. Its robust thermal tolerance of -40°C to +85°C ensures reliable operation in harsh defense, aerospace, and industrial environments where stability and high compute capability are non-negotiable.

10G Ethernet SUPPORT

MILBOARD-AGXMAX features one high-bandwidth 10G Ethernet port alongside three Gigabit Ethernet ports, enabling fast data transfer and flexible network configurations.

Equipped with EEPROM

MILBOARD-AGXMAX includes onboard EEPROM for secure storage of system configuration and calibration data. This ensures dependable data retention across power cycles and long-term deployments.

FAN header for active cooling

The FAN header on MILBOARD-AGXMAX is essential because it enables active cooling, which ensures stable and sustained performance of the NVIDIA Jetson AGX Orin under heavy AI workloads.

Camera Expansion Slot

MILBOARD-AGXMAX provides a dedicated camera expansion slot supporting up to 4× 4-lane or 6× 2-lane MIPI CSI interfaces. This allows seamless integration of multiple high-resolution cameras for vision-based AI applications.

High AI performance

Powered by NVIDIA Jetson AGX Orin modules, the MILBOARD-AGXMAX delivers high AI performance for demanding edge computing workloads. It is designed to handle mission-critical applications requiring strong compute capability and reliability.

WIDE OPERATING TEMPERATURE

MILBOARD-AGXMAX supports a wide operating temperature range from -40°C to +85°C. This ensures stable and reliable operation in harsh industrial, aerospace and defense environments.

NVIDIA® Jetson AGX Orin™ Carrier Board with 10G Ethernet - MILBOARD-AGXMAX Use Cases

DEFENCE

The MILBOARD-AGXMAX is built for mission-critical defense systems that require high AI performance, rugged reliability, and secure operation. Its wide operating temperature range, isolated interfaces, and high-speed networking make it well suited for autonomous platforms and battlefield edge computing.

AEROSPACE

Designed to operate reliably in extreme environments, the MILBOARD-AGXMAX supports aerospace applications with robust thermal tolerance and high-bandwidth connectivity. Multi-camera support and powerful AI acceleration enable advanced perception, navigation, and monitoring systems.

SECURITY & SURVEILLANCE

The MILBOARD-AGXMAX enables intelligent security and surveillance solutions with high-speed Ethernet and flexible camera expansion. Its AI capabilities support real-time video analytics, object detection, and long-term, reliable deployment in demanding environments.

NVIDIA® Jetson AGX Orin™ Carrier Board with 10G Ethernet - MILBOARD-AGXMAX Technical Specifications

Supported Modules	NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64GB NVIDIA Jetson AGX Orin Industrial
Memory	32 GB 256-bit LPDDR5x 64 GB 256-bit LPDDR5x
Graphics Interfaces	1x HDMI 2.0
Interfaces	3x Gigabit Ethernet 1x 10G Ethernet 2x USB 3.2 2x USB 2.0 1x USB 2.0 (Serial Console) 2x CAN FD (Isolated) 4x RS232/422 (Isolated, Software-Con- figurable) 8x Digital IO (Isolated, 3.3V Level)
Wireless Communication	None
Power Supply	12-36 VDC (28 VDC Nominal)
Extension Sockets	Camera Expansion Slot (Up to 4x 4-Lane or 6x 2-Lane MIPI CSI)
Mass Storage	64 GB eMMC 5.1 Flash 2x M.2 Key-M SSD Slot (occupied) SD Card
Ambient Conditions	-40°C ... +85°C (Carrier Board)
Form Factor / Dimensions	150 mm x 140 mm
Operating Systems	Ubuntu Linux 20.04 / 22.04
JetPack Support	JetPack 5.x / 6.x

Need help?

Frequently Asked Questions

What makes the MILBOARD-AGXMAX suitable for military and aerospace edge AI deployments in extreme temperatures?

The MILBOARD-AGXMAX is specifically engineered for mission-critical edge AI systems operating in harsh defense, aerospace, and industrial environments. It supports an extended operating temperature range of -40°C to +85°C (carrier board), ensuring stable performance in extreme climates.

How does the MILBOARD-AGXMAX enable high-bandwidth multi-camera AI vision systems with 10G Ethernet connectivity?

The MILBOARD-AGXMAX is designed to handle data-intensive edge AI workloads that require high-speed networking and multi-camera integration. It features 1× 10G Ethernet and 3× Gigabit Ethernet ports, enabling high-bandwidth data transmission for real-time AI inference and distributed edge computing architectures. The carrier board also supports camera expansion with up to 4× 4-lane or 6× 2-lane MIPI CSI interfaces, making it suitable for advanced computer vision systems such as autonomous vehicles, surveillance platforms, robotics, and industrial inspection systems. With onboard 64GB eMMC storage and dual M.2 Key-M NVMe SSD slots, it offers the storage performance required for high-resolution video processing and large AI models. Combined with the computational power of NVIDIA Jetson AGX Orin modules, this board enables scalable, high-performance multi-camera edge AI deployments.

What industrial connectivity and power features make the MILBOARD-AGXMAX suitable for robotics and autonomous systems integration?

The MILBOARD-AGXMAX provides robust industrial connectivity options designed for integration into robotics, transportation, and automation systems. It includes two isolated CAN FD interfaces, four isolated RS232/422 interfaces that are software configurable, and eight isolated digital I/O channels operating at 3.3V level. These isolated interfaces enhance electrical reliability in demanding environments where noise and voltage fluctuations are common. The board also supports a wide 12–36V DC power input with a nominal 28V configuration, allowing seamless deployment in vehicle-based and field systems. Additional features such as multiple USB ports, HDMI 2.0 output, and a dedicated fan header for active cooling further strengthen its suitability for rugged autonomous machines and AI-powered edge platforms operating in real-world conditions.
